Land Rover ABS Pumps – Complete ABS / ESP Units

Land Rover ABS Pump: Hydraulic Module with ABS Control Unit

An ABS pump in a Land Rover or Range Rover is an aluminium hydraulic block with valves and a pump motor, together with a control unit that reads the signals from the wheel speed sensors. On many models the same module also handles the stability control system, so a fault sometimes shows up as more than just the ABS warning light. The module is usually sold and replaced as a single unit.

Our range includes a dozen or so used original modules for Land Rover and Range Rover. Among them you will find Land Rover numbers, for example those containing 14F447 or 2C405, as well as Bosch (0 265 ...) and ATE (10.02..., 10.09..., 28.5...) manufacturer numbers. The range changes regularly, so the items below are only examples.

Examples from our range: Range Rover and Land Rover

Our range includes, among others, modules with the numbers:

• Range Rover ABS pump, number BJ322C405AG,
• Range Rover ABS pump, number SRB500164,
• Range Rover ABS pump, number DPLA14F447AF,
• Range Rover ABS pump, number K8D214F447AK,
• Range Rover ABS pump, number J8A214F447ED,
• Land Rover ABS pump, number HPLA14F447AE.

Our listings do not always state the car model, so compatibility depends on the number from the original pump.

How to choose an ABS pump for a Land Rover by part number

Model and year are not enough, because the same model comes with different versions of the module, depending on the engine, drive and equipment level. In our range you will find several kinds of numbers:

• the original Land Rover number, for example K8D2-14F447-AK, DPLA14F447AF, BJ322C405AG or SRB500164 (in catalogues the numbers are sometimes written with hyphens or as one continuous string),
• the manufacturer's number for the hydraulic block, for example Bosch 0 265 2xx xxx or ATE 10.02xx-xxxx.x,
• the control unit number, for example Bosch 0 265 9xx xxx or ATE 10.09xx-xxxx.x.

Compare all the numbers with the original pump in your car and, if in doubt, write to us before buying.

Symptoms of a faulty ABS pump or control unit

• the ABS warning light comes on after the engine is started and does not go out,
• the ABS stops working, although basic braking usually remains functional,
• the brake pedal pulses or feels uneven for no obvious reason,
• the control unit stores valve, pump motor or communication faults,
• brake fluid leaks from the hydraulic block, which requires immediate action.

Before deciding on a replacement, check the wheel speed sensors, their wiring and the supply voltage. After replacing the module, the fault codes usually need to be cleared, and after disconnecting the brake lines the system must be bled. On some models the module also needs adaptation in the control unit, so installation is best left to a workshop with a suitable diagnostic scanner.

Used original ABS module: condition and inspection

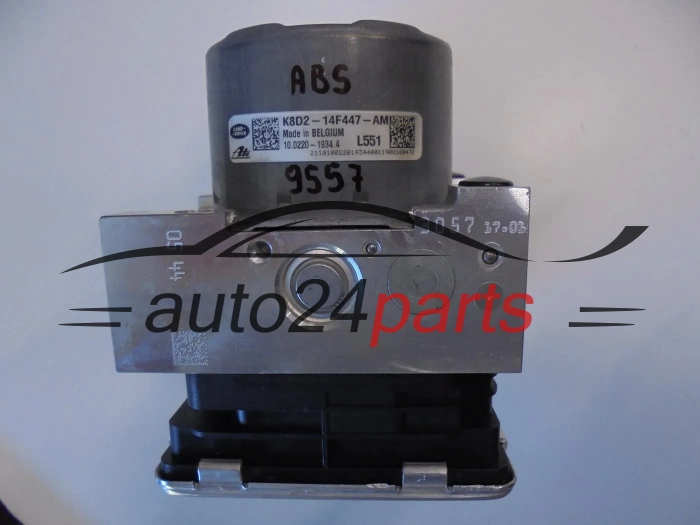

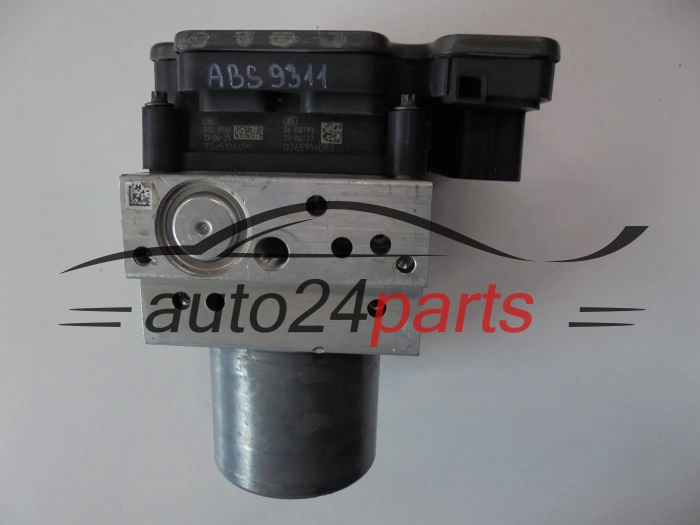

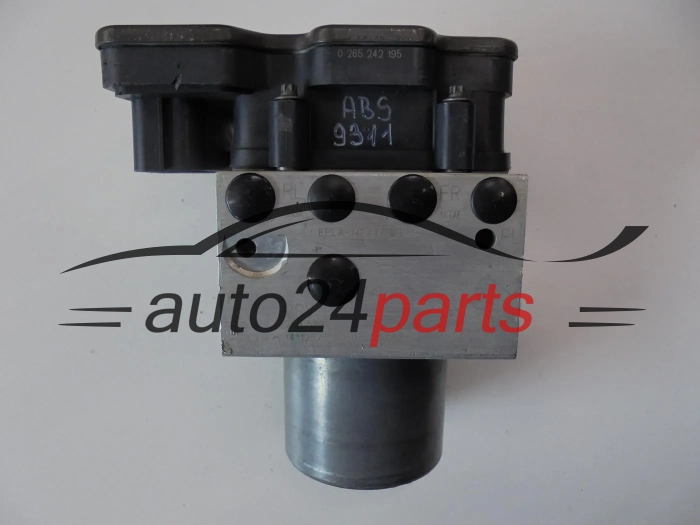

We sell used original ABS modules, not new parts. Every item is inspected and tested before sale, and the product photos show the look of the block, the numbers and the labels, so you can compare them with your own pump.

Related electronic parts

If you are looking for other modules, see ABS / ESP / ASR control units and electronic car parts.

Ordering, Payment, Delivery and Warranty

Information about placing an order is available on the How to Buy page. The available payment methods are described under Payment Methods, while shipping information can be found on the Shipping and Delivery page.

Our rules on returns, complaints and warranty are set out on the Returns, Warranty and Complaints page. Further answers are also available in the Auto24Parts FAQ.

FAQ: Land Rover ABS Pump
