Mazda ECU & Engine Control Modules – CX-5, CX-7 and 323

Mazda engine control units – ECU selection by exact part number

A Mazda engine control unit (ECU), also known as an ECM or engine computer, manages engine operation and communicates with other electronic systems in the vehicle. Depending on the engine and ECU generation, the module may control fuel injection, ignition, electronic throttle operation, fuel pressure and other engine-management functions.

When replacing an ECU, however, the most important issue is identifying the exact electronic module installed in the vehicle. Mazda has used control units from different electronics manufacturers and numerous hardware and software versions. Two modules with similar housings and connectors may therefore require different part numbers, configuration or programming.

How to identify the correct Mazda ECU

The safest method is to compare the complete label of the original engine control unit. Before ordering, check:

• the complete Mazda OEM part number,
• the Denso, Mitsubishi or other electronics manufacturer reference,
• all letters at the end of the Mazda number,
• hardware and software identification where available,
• vehicle model and production year,
• engine capacity and engine version,
• transmission and relevant vehicle configuration.

A Mazda model name alone is not enough to confirm ECU compatibility. Even within one model family, different engines and production years may use different control modules.

Mazda OEM numbers and electronics manufacturer references

Many Mazda ECUs display more than one identification number. One reference is normally associated with Mazda, while another identifies the electronic module manufacturer.

Examples currently found in the Auto24Parts Mazda ECU catalogue include:

• SH1518881A / 275700-6347 / 2757006347,
• R2AX18881K / 275800-9499 / 2758009499,
• LF1718881J / E6T52478H,
• ZL1318881A / 279700-0422 / 2797000422,
• Z5B518881A / E2T86886M / Z5B56J.

Using several references together creates a much more precise search than a general phrase such as “Mazda ECU”.

Mazda CX-5 – SH1518881A / 275700-6347

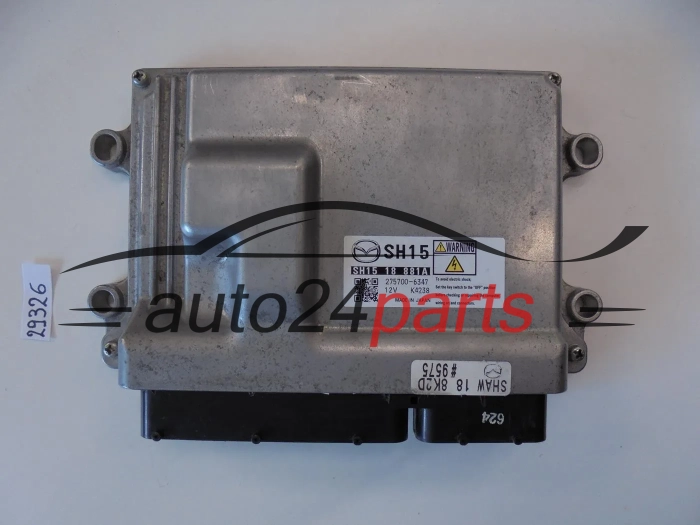

One of the current modules is the Mazda CX-5 ECU SH1518881A / 275700-6347 / 2757006347.

The Mazda reference is SH1518881A, while the additional electronics manufacturer number may be written as 275700-6347 or 2757006347. These are useful search variants when comparing the replacement ECU with the original module.

The product is currently offered with preparation choices including a locked version and a version ready for further programming. The appropriate option should be selected according to the work that will be carried out on the vehicle.

Mazda CX-7 – R2AX18881K / 275800-9499

For Mazda CX-7, the catalogue includes the Mazda CX-7 ECU R2AX18881K / 275800-9499 / 2758009499.

The number 275800-9499 may also appear without the separator as 2758009499. Both formats refer to the additional identification of the control unit, while R2AX18881K is the Mazda reference used on the module.

The complete combination should be checked rather than selecting another CX-7 ECU solely from the vehicle model.

Mazda 2.0 – Mitsubishi E6T52478H / LF1718881J

Not every Mazda ECU uses a Denso-type number. Another current product is the Mazda 2.0 Mitsubishi ECU E6T52478H / LF1718881J.

In this case, E6T52478H is the Mitsubishi electronics reference and LF1718881J is the corresponding Mazda identification. Both should be compared with the original control unit before ordering.

This is also a good example of why searching only by Mazda model or engine capacity can be insufficient. The electronics manufacturer and exact ECU number provide much more precise identification.

Mazda 323 – Denso 279700-0422 / ZL1318881A

The Mazda category also contains an engine control unit for Mazda 323 identified by ZL1318881A together with Denso references 279700-0422 and 2797000422.

The formatted and compact versions of the Denso number are both useful when searching online. The complete Mazda reference should also be checked because a similar Denso housing does not automatically confirm compatibility.

Mazda 323F 1.5 – Z5B56J / Z5B518881A / E2T86886M

For Mazda 323F 1.5, another current module carries the references Z5B56J, Z5B518881A and E2T86886M.

The combination of Mazda and electronics manufacturer references helps distinguish this module from other control units used in the 323 and 323F families.

Denso engine control units for Mazda

Denso control units in the Mazda catalogue can use number formats such as 275700..., 275800... and 279700.... Current examples include:

• 275700-6347 / SH1518881A – Mazda CX-5,
• 275800-9499 / R2AX18881K – Mazda CX-7,
• 279700-0422 / ZL1318881A – Mazda 323.

The Denso number is a useful identifier, but it should be compared together with the complete Mazda OEM reference.

Mitsubishi electronics used in Mazda ECUs

Mazda also uses engine control modules produced by Mitsubishi. Current examples include E6T52478H / LF1718881J and the Mazda 323F module identified by E2T86886M together with Mazda references.

The manufacturer name alone does not prove compatibility. Two Mitsubishi control units can have similar connectors or housings while containing different electronics or software.

Why the letters in a Mazda ECU number matter

Mazda OEM numbers often combine letters and digits, for example SH1518881A, R2AX18881K or LF1718881J. Every character should be retained when comparing the module.

A difference in the final letter or another section of the number may identify another hardware or software version. For this reason, abbreviated numbers should not be used as the only compatibility check.

Common symptoms that may indicate a Mazda ECU problem

A faulty engine control unit can cause different symptoms, but similar problems may also result from sensors, wiring, actuators, power supply or communication faults. Proper diagnosis should therefore be carried out before replacing the module.

• engine does not start,
• no diagnostic communication with the ECU,
• engine stalls or is difficult to restart,
• limp mode or reduced engine power,
• injector or ignition-control faults,
• incorrect throttle response,
• fuel-pressure or boost-control problems,
• communication faults with other control units,
• repeated diagnostic trouble codes,
• internal ECU memory or electronics faults.

Before replacing the engine computer, check battery voltage, ECU power supply and grounds, fuses, relays, electrical connectors and the wiring harness. A fault code alone does not confirm that the ECU is defective.

Used / locked Mazda engine control unit

A standard used / locked Mazda ECU normally retains information from the vehicle in which it was previously installed. Depending on the ECU type and immobiliser system, additional preparation may therefore be required before it can be used in another vehicle.

This version is mainly intended for workshops and automotive electronics specialists equipped to prepare, programme or adapt replacement control units.

Mazda ECU prepared for programming

Selected Mazda control units can be supplied in a version prepared for further programming. The exact preparation method depends on the ECU design, vehicle generation and security system.

After installation, programming, coding, adaptation or immobiliser synchronisation may be required depending on the specific application. See the ECU preparation options page for more information.

Mazda ECU cloning

For compatible modules, another possible solution is Mazda ECU cloning. If the necessary information can be correctly read from the original control unit, it may be transferred to a compatible replacement ECU.

Depending on the module design, transferred information may include relevant memory data, software, configuration, VIN and immobiliser-related information.

Cloning availability depends on the ECU type and the condition of the original module. If the necessary data cannot be recovered, another preparation method may be required.

Mazda ECU numbers currently available in the catalogue

The current Mazda category can be searched using these exact combinations:

• SH1518881A / 275700-6347 / 2757006347 – Mazda CX-5 ECU
• R2AX18881K / 275800-9499 / 2758009499 – Mazda CX-7 ECU
• E6T52478H / LF1718881J – Mazda 2.0 Mitsubishi ECU
• ZL1318881A / 279700-0422 / 2797000422 – Mazda 323 Denso ECU
• Z5B56J / Z5B518881A / E2T86886M – Mazda 323F 1.5 ECU

Using exact Mazda and electronics manufacturer references creates a direct path from the label on the original control unit to the correct replacement module.

How to check Mazda ECU compatibility before ordering

Take a clear photo of the complete original ECU label. The Mazda OEM number, Denso, Mitsubishi or other manufacturer reference and any additional hardware or software identifiers should all be readable.

If you need help identifying the correct module, contact Auto24Parts and send the photo together with the Mazda model, model year, engine capacity, power output and engine version.

For other vehicle makes, browse the complete engine control unit catalogue. Other Mazda electronic components can also be found in the Mazda ABS pump category.

Before ordering, you can also review our How to Buy guide, Shipping & Delivery information and Returns, Warranty & Complaints conditions.
