Engine control unit Mazda CX-5 SH1518881A 275700-6347 2757006347
Vendors's code: SH1518881A
Product code: 2084-42675
Barcode:
Code 39:
ISBN:
€406.50
Price
€406.50
€500.00
Price
€500.00
In stock
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Engine control unit Mazda CX-5 SH1518881A 275700-6347 2757006347
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Where can you find the number SH1518881A on a Mazda CX-5 control unit?
Used engine control unit, numbers SH1518881A and 275700-6347, inspected before sale. Compare the numbers with the label on the original in your car.
Where can you find the number SH1518881A on a Mazda CX-5 engine control unit?

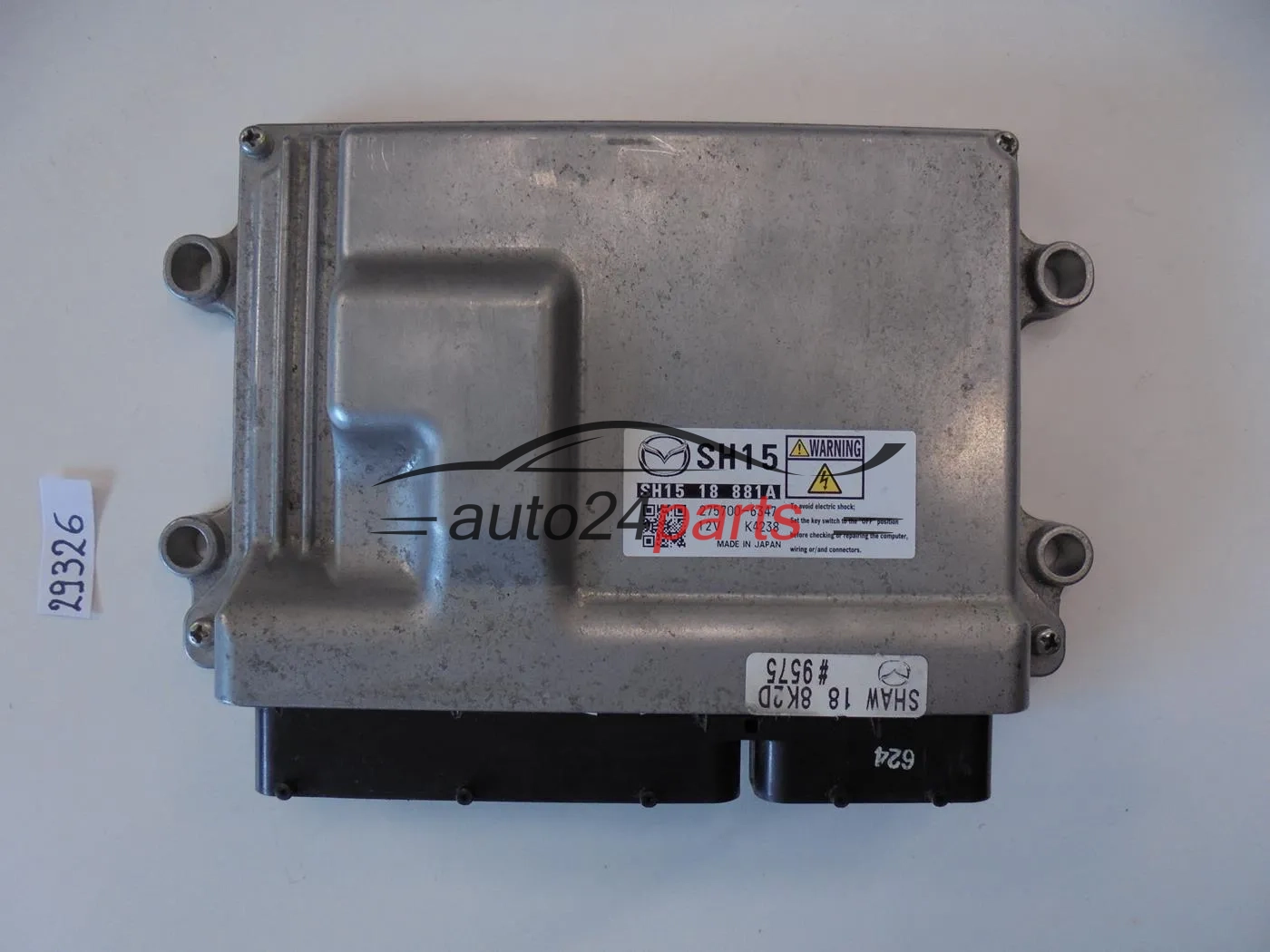

For the Mazda CX-5 we offer a used original engine control unit with the number SH1518881A. The label on the aluminium housing cover shows the Mazda logo, the marking SH15, the number SH15 18 881A, the number 275700-6347, a voltage of 12V and the code K4238. There is a second, smaller sticker next to the connector.
Numbers to check before buying
- Mazda part number SH1518881A (SH15 18 881A on the label),
- number 275700-6347, which we also give without the hyphen, as 2757006347,
- code K4238.
Note them down from the original label and compare them character by character. Similar control units sometimes differ only in the final letter of the number.
Control unit variant
This listing is for a control unit in the following variant(s): Locked / Unlocked. We describe the differences between the variants (locked, unlocked, Virgin, IMMO OFF, Plug and Play, clone, full set) on the ECU preparation options page. Before buying, send us the numbers from the label and we will confirm which variant is available for that number.
What may point to a faulty control unit
- no start even though the starter motor is working,
- the engine warning light does not go out after starting,
- no communication with the diagnostic tester.
Such symptoms can also be caused by faults in the wiring, sensors or power supply, so read the fault codes before buying.
Questions and answers
| Does the control unit need programming after fitting? |
|---|
| It depends on the variant and on the car. Before you buy, send us the numbers from the label and we will tell you whether programming is needed in this case. |
| Does the control unit fit every Mazda CX-5? |
| Not always. The listing does not state the year or the engine, so compatibility is determined by the numbers on the label. |
| What condition is this control unit in? |
| It is an original, used part, inspected before sale. The warranty period is listed in the product features table. |
If you have any doubts, send us a photo of the label on your control unit and we will check whether the numbers match.
