Skoda ECU – Fabia, Octavia, Superb, EDC17 & Simos Modules

Skoda engine control units – ECU identification by VAG and manufacturer part number

A Skoda engine control unit (ECU), also known as an ECM or engine computer, manages engine operation and communicates with other electronic systems in the vehicle. Depending on the engine and ECU generation, the module may control fuel injection, ignition, fuel pressure, turbocharger operation, electronic throttle control and selected emissions-related functions.

When replacing a Skoda ECU, however, the most important task is identifying the exact control unit fitted to the vehicle. Skoda uses many Volkswagen Group engine-management systems from Bosch, Siemens, Continental, Delphi and Magneti Marelli. Similar housings, connectors or ECU-family names do not confirm that two modules are interchangeable.

Skoda VAG ECU numbers – 03L, 03G, 03P, 03F, 03C, 036 and 045

The Skoda catalogue contains several characteristic VAG OEM number families. Current examples include:

• 03L906018BP,
• 03L906018QN,
• 03L906018EE,
• 03L906023LL,
• 03G906018EB,
• 03P906021K,
• 03F906070AM,
• 03C906024CE,
• 036906034AE,
• 045906013R.

The prefix helps identify the general VAG number family, but the complete reference including the final letters must always be checked. For example, 03L906018BP, 03L906018QN and 03L906018EE are separate references.

Why can one Skoda ECU have several numbers?

A Skoda engine computer can carry both a VAG OEM reference and an additional number assigned by the electronics manufacturer. The label may therefore contain:

• Skoda / VAG OEM part number,
• Bosch 0281... or 0261S... reference,
• Siemens / Continental 5WP... reference,
• Delphi manufacturer number,
• Magneti Marelli system designation,
• ECU family such as EDC17C46, EDC16U34, DCM3.7, Simos or MED17,
• additional hardware or software identification.

Using several references from the original label normally gives a much more precise result than searching only for “Skoda ECU”.

Skoda EDC17C46 – 0281016398 / 03L906018BP

One current Bosch diesel module is the Skoda ECU 0281016398 / 03L906018BP / EDC17C46.

The module combines Bosch reference 0281016398, VAG number 03L906018BP and the EDC17C46 engine-management family.

The Bosch number can also be written as 0 281 016 398. Both formats can be useful when comparing the original label, workshop documentation or online listings.

Skoda EDC17C46 – 0281019117 / 03L906018QN

Another EDC17C46 module is the Skoda ECU 0281019117 / 03L906018QN / EDC17C46.

This example is important because it belongs to the same EDC17C46 family as 0281016398 / 03L906018BP, but carries completely different Bosch and VAG references.

EDC17C46 alone is therefore not a compatibility number. The complete manufacturer and OEM references must still be compared.

Skoda 0281039430 / 05L907309AA

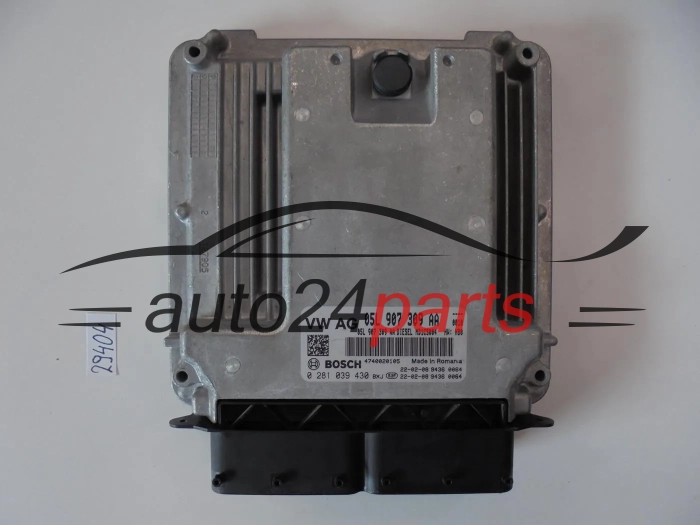

The current catalogue also contains the Skoda ECU Bosch 0281039430 / 05L907309AA.

This module represents a newer VAG number sequence beginning with 05L.... The Bosch number and full VAG reference should be checked together with the original control unit.

Skoda MED9.5.10 – 0261S02259 / 06F906056EQ

Petrol engine electronics are represented by the Skoda Bosch ECU 0261S02259 / 06F906056EQ / MED9.5.10.

The module combines Bosch number 0261S02259 with VAG reference 06F906056EQ and the MED9.5.10 family designation.

A MED9 or MED17 family name should not be used as the only compatibility criterion because several different modules can belong to the same general engine-management generation.

Skoda Simos PPD1.2 – 03G906018EB / 5WP45561AF

Not all Skoda diesel ECUs use Bosch EDC systems. One current example is the Skoda ECU 03G906018EB / 5WP45561AF / Simos PPD1.2.

The VAG number 03G906018EB, manufacturer reference 5WP45561AF and Simos PPD1.2 designation provide three useful identification points.

This makes Simos an important independent search cluster alongside Bosch EDC systems.

Skoda 03L906023LL / Continental 5WP42687AA

Another current VAG diesel control unit is the Skoda ECU 03L906023LL / Continental 5WP42687AA.

The module demonstrates why searching only by 03L... or only by manufacturer name is not sufficiently precise. Both references should be retained when identifying the replacement ECU.

Skoda Fabia 1.2 TDI – Delphi 28281647 / 03P906021K / DCM3.7

Delphi engine management is also present in the Skoda catalogue. One important example is the Skoda Fabia 1.2 TDI ECU Delphi 28281647 / 03P906021K / DCM3.7.

This module uses a completely different manufacturer-number format from Bosch and Siemens units. The combination of 28281647, 03P906021K and DCM3.7 provides the most useful identification.

Skoda Fabia 1.2 TSI – 03F906070AM / 5WP44630

For a petrol TSI application, the catalogue contains the Skoda Fabia 1.2 TSI ECU 03F906070AM / 5WP44630.

The VAG number 03F906070AM and manufacturer reference 5WP44630 should be compared together.

Skoda Fabia 1.2 – Siemens 03D906033C / 5WP40292 / Simos 3PG

Older Fabia petrol applications include Siemens Simos systems. One verified example is the Skoda Fabia 1.2 ECU 03D906033C / Siemens 5WP40292 / Simos 3PG.

This module is very different from a later 1.2 TSI ECU despite both being fitted to Fabia applications with a 1.2-litre engine.

Model name and engine capacity alone are therefore not sufficient for compatibility confirmation.

Skoda Citigo 1.0 – 0261S07186 / 04C906020K / ME17.5.20

For Citigo, the current catalogue includes the Skoda Citigo 1.0 Bosch ECU 0261S07186 / 04C906020K / 04C907309D / ME17.5.20.

This unit provides another distinct petrol ECU family. The full Bosch number, both VAG references and the ME17.5.20 designation should be considered when checking the replacement.

Skoda Octavia – 0281014715 / 03G906021TG / EDC16U34

Octavia is another important model group in the category. One verified example is the Skoda Octavia ECU Bosch 0281014715 / 03G906021TG / 03G906021AB / EDC16U34.

This module uses Bosch 0281014715 together with two VAG references. The EDC16U34 designation helps identify the ECU family but should not replace the exact Bosch and VAG numbers.

Skoda Superb – several TDI and petrol ECU generations

Superb applications in the current range include both petrol and diesel engine-control systems. Examples include:

• 5WP42678AA / 03L906023JJ / 03L906023JH – Superb 1.6 TDI,
• 0261S05741 / 3T0907115G – Superb 1.8 T,
• 0281014111 / 03G906021QM / 03G906021AN / EDC16U34 – Superb 1.9 TDI,
• 0281015878 / 03L906022QJ / 03L906022GA / EDC17CP14 – Superb 2.0 TDI.

One current example is the Skoda Superb 2.0 TDI ECU 0281015878 / 03L906022QJ / EDC17CP14.

This shows how even within one model line the ECU generation can change substantially depending on engine and production version.

Skoda Fabia – one model, many ECU families

Fabia is one of the strongest model clusters in the current Skoda category. The catalogue contains petrol and diesel modules from several electronics manufacturers, including:

• 03D906033C / 5WP40292 / Simos 3PG – Fabia 1.2,
• 03E906033A / 5WP44305 / Simos 3PE – Fabia 1.2,
• 28281647 / 03P906021K / DCM3.7 – Fabia 1.2 TDI,
• 03F906070AM / 5WP44630 – Fabia 1.2 TSI,
• 036906034AE / IAW4LV.B – Fabia 1.4,
• 036906034KE / IAW4TV.KE – Fabia 1.4.

This is why “Skoda Fabia ECU” is useful as a general search phrase but should always be narrowed using the exact part numbers from the original module.

EDC16 and EDC17 Skoda diesel engine control units

Skoda diesel applications include several generations of Bosch electronic diesel control. Current examples include EDC16U34, EDC17C46 and EDC17CP14 systems.

Representative references include:

• 0281014715 / 03G906021TG / EDC16U34,
• 0281016398 / 03L906018BP / EDC17C46,
• 0281019117 / 03L906018QN / EDC17C46,

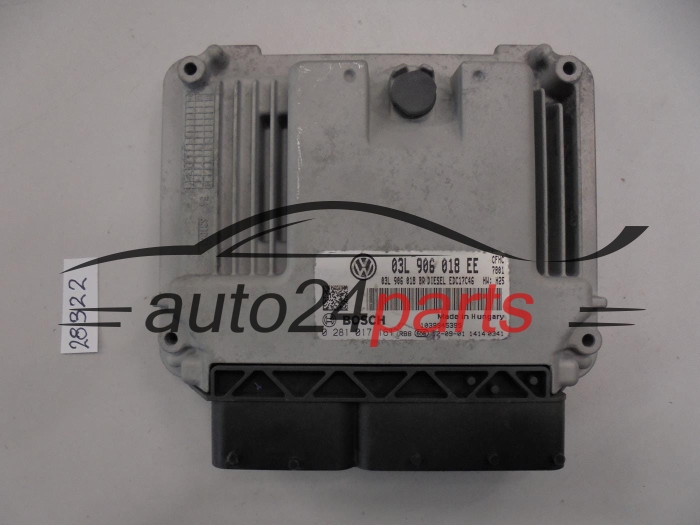

• 0281017161 / 03L906018EE / EDC17C46,
• 0281015878 / 03L906022QJ / EDC17CP14.

The general phrase “Skoda TDI ECU” therefore covers many different electronic architectures and exact part numbers.

Simos engine control units for Skoda

Simos is another important Skoda and VAG engine-management cluster. Current catalogue examples include:

• 03G906018EB / 5WP45561AF / Simos PPD1.2,
• 03D906033C / 5WP40292 / Simos 3PG,
• 03E906033A / 5WP44305 / Simos 3PE.

Simos PPD1.2, Simos 3PG and Simos 3PE are different system designations. The complete VAG and manufacturer numbers should be checked in addition to the family name.

Magneti Marelli IAW engine control units for Skoda

Selected Skoda petrol applications use Magneti Marelli engine-management systems. The current Fabia range includes IAW modules such as:

• 036906034AE / 61600.517.10 / IAW4LV.B,
• 036906034KE / IAW4TV.KE / 61600.313.01,
• 036906034T / 6160048912 / IAW4LV.C,
• 036906034BK / IAW4LV.C,
• 036906034FD / IAW4MV.FD.

The complete IAW suffix matters because visually similar Magneti Marelli modules can contain different electronics or calibration.

Other products from this manufacturer can be found in the Magneti Marelli automotive electronics section.

Bosch, Continental, Siemens, Delphi and Magneti Marelli Skoda ECUs

The current Skoda category contains engine-control modules from several major electronics manufacturers. Bosch is particularly prominent in EDC and MED systems, while Siemens and Continental appear in Simos and 5WP-based applications. Delphi DCM modules and Magneti Marelli IAW petrol controllers are also represented.

Related manufacturer pages include Bosch automotive electronics, Siemens automotive modules and Magneti Marelli electronic modules.

Skoda, Volkswagen, Audi and SEAT shared VAG electronics

Skoda shares many engines, platforms and electronic systems with other Volkswagen Group brands. As a result, related VAG ECU families and part numbers can also appear in Volkswagen, Audi or SEAT applications.

This does not mean that every ECU from a related VAG vehicle is automatically interchangeable. Complete OEM numbers, manufacturer references, hardware, software, engine version and vehicle configuration should still be verified.

Related categories include Volkswagen engine control units, Audi engine control units and SEAT engine control units.

Used / locked Skoda ECU

A standard used / locked Skoda engine control unit normally retains data from the vehicle in which it was previously installed. Depending on the ECU generation and vehicle security system, additional electronic preparation may therefore be required before installation in another vehicle.

This type of module is mainly intended for workshops and automotive electronics specialists equipped to prepare and programme replacement ECUs.

Skoda ECU ready for programming

Many Skoda products in the Auto24Parts catalogue are available in locked and ready-for-programming variants. The available preparation depends on the exact ECU and vehicle application.

Programming, coding, configuration or immobiliser-related adaptation may still be required after installation depending on the module and how it has been prepared.

See our ECU preparation options for further information.

VIRGIN Skoda ECU

For selected Skoda engine control units, the module may be reset or otherwise prepared for subsequent adaptation to another vehicle. This type of preparation may be described as VIRGIN.

The exact meaning and installation procedure depend on the ECU family and vehicle generation. A VIRGIN module should not automatically be treated as Plug & Play unless the specific product description confirms this.

Skoda immobiliser and replacement ECU

In many Skoda vehicles, the engine ECU forms part of an electronic security system involving other vehicle modules. A standard used ECU may retain immobiliser-related data from its previous vehicle.

Depending on the vehicle generation, ECU family and preparation method, programming, adaptation, synchronisation or transfer of vehicle-specific data may be required.

Skoda ECU cloning

For selected compatible control units, Skoda ECU cloning may be another preparation method. If the required information can be correctly read from the original ECU, relevant data may be transferred to a compatible replacement module.

Depending on the ECU design, this can include EEPROM or FLASH content, software, configuration and security-related information.

The possibility of cloning depends on the control-unit type and condition of the original ECU. If the required data cannot be recovered correctly, another preparation method may be necessary.

Why matching only EDC17, Simos or MED is not enough

An ECU-family designation describes the general engine-management architecture but does not identify the exact module.

For example, the current Skoda catalogue contains several separate EDC17C46 modules with different Bosch and VAG numbers. Simos also covers several different generations, including PPD1.2, 3PG and 3PE.

The preferred identification sequence is therefore:

• complete Skoda / VAG OEM number,
• Bosch, Siemens, Continental, Delphi, Magneti Marelli or other manufacturer reference,
• ECU-family designation,
• vehicle model and production year,
• engine capacity and engine code where known,
• hardware and software identification where required.

Common symptoms that may indicate a Skoda ECU problem

A defective engine control unit can cause different symptoms, but similar problems can also result from sensors, wiring, actuators, fuel-system components, power-supply faults or vehicle-network problems.

• engine does not start,
• no diagnostic communication with the ECU,
• engine stalls or is difficult to restart,
• limp mode or reduced engine power,
• injector or ignition-control faults,
• incorrect throttle response,
• fuel-pressure or turbocharger-control problems,
• CAN communication errors,
• fault codes that repeatedly return,
• internal ECU memory or electronic faults.

Before replacing the ECU, check battery voltage, module power supply, ground connections, fuses, relays, connectors and wiring. A diagnostic trouble code alone does not prove that the engine control unit itself is defective.

Skoda engine control units by exact part number

Searching by the complete VAG and electronics manufacturer references is one of the most effective ways to locate the correct replacement ECU:

• 0281039430 / 05L907309AA – Skoda Bosch ECU
• 0281016398 / 03L906018BP / EDC17C46 – Skoda ECU
• 0281019117 / 03L906018QN / EDC17C46 – Skoda ECU
• 0261S02259 / 06F906056EQ / MED9.5.10 – Skoda Bosch ECU
• 03G906018EB / 5WP45561AF / Simos PPD1.2 – Skoda ECU
• 0261S07186 / 04C906020K / ME17.5.20 – Skoda Citigo 1.0 ECU
• 28281647 / 03P906021K / DCM3.7 – Skoda Fabia 1.2 TDI ECU
• 03D906033C / 5WP40292 / Simos 3PG – Skoda Fabia 1.2 ECU
• 0281014715 / 03G906021TG / EDC16U34 – Skoda Octavia ECU
• 0281015878 / 03L906022QJ / EDC17CP14 – Skoda Superb 2.0 TDI ECU

How to check Skoda ECU compatibility before ordering

Take a clear photo of the complete original ECU label. The Skoda / VAG OEM number, Bosch, Siemens, Continental, Delphi, Magneti Marelli or other manufacturer reference and any EDC, Simos, DCM, MED or other ECU-family designation should all be readable.

If you need help identifying the correct replacement module, contact Auto24Parts and send the photo together with the Skoda model, model year, engine capacity, power output and engine version.

For other vehicle makes, browse the complete engine control unit catalogue. Related VAG engine electronics can also be found in the Volkswagen ECU, Audi ECU and SEAT ECU categories.

Before ordering, you can also review our How to Buy guide, Shipping & Delivery information and Returns, Warranty & Complaints conditions.

FAQ – Skoda ECU and Engine Control Units
