Engine control unit (ECU) for Citroën

The engine control unit (ECU) in Citroën vehicles plays a key role in managing and monitoring engine operation. It is responsible for adjusting engine parameters, controlling exhaust emissions and optimising fuel consumption. Below, we explain the main functions of a Citroën engine control unit, its possible advantages and limitations, and the factors that should be considered when selecting and replacing the module.

The engine control unit as the central management module

The Citroën engine control unit is an advanced electronic module that manages numerous processes required for correct vehicle operation. It processes data received from various sensors, including the mass airflow sensor, exhaust gas temperature sensor, coolant temperature sensor and boost pressure sensor.

Based on this information, the ECU controls fuel delivery, ignition timing in petrol engines, boost pressure, airflow and the systems responsible for exhaust emissions. A correctly functioning control unit ensures stable engine operation throughout the entire rev range and continuously adjusts its parameters to the current driving conditions.

The practical importance of a Citroën engine control unit

The engine control unit has a significant influence on engine smoothness, throttle response and the correct operation of the fuel injection and exhaust aftertreatment systems. In older vehicles, symptoms of incorrect operation may be related not only to the ECU itself but also to worn sensors, electrical wiring, the fuel system or other components.

A fully operational and correctly configured ECU helps maintain the engine’s factory operating parameters, appropriate fuel consumption and compliance with the emission standards specified for the vehicle.

Who is a Citroën engine control unit intended for?

A Citroën engine control unit is primarily intended for vehicle owners who need to replace a damaged module with a working and compatible unit. A correctly selected and prepared ECU can restore proper engine operation, communication with other control modules and the function of the immobiliser system.

It is important to remember that replacing the control unit alone does not increase engine power or automatically reduce fuel consumption. The module must be matched to the specific model, engine version, transmission and vehicle equipment. Depending on the ECU type, programming, coding, data cloning or synchronisation with the BSI module may also be required.

Comparison with other control units

Control units used in Citroën vehicles are closely integrated with the vehicle’s other electronic systems. In many models, they communicate with the BSI module, transmission control unit, ABS system, immobiliser and modules responsible for the vehicle’s equipment.

For this reason, a control unit cannot be selected solely on the basis of a similar appearance or identical connectors. The module must be compatible in terms of OEM numbers, hardware version, software and configuration. This is particularly important in Citroën and Peugeot vehicles, where similar units may differ in software, equipment configuration and the method of synchronisation with the BSI.

Possible difficulties when replacing the control unit

Replacing an engine control unit may require specialist knowledge, suitable diagnostic equipment and access to the data stored in the original module. In some vehicles, a used ECU must be programmed, cloned or reset to a VIRGIN state before installation.

An incorrectly selected or unprepared ECU may prevent the engine from starting, cause immobiliser faults, create an incorrect equipment configuration or lead to communication problems between modules. The power supply, ground connections, wiring, connectors and sensors should also be checked before replacement, as faults in these areas may cause symptoms similar to ECU failure.

Technical details and key functions

A Citroën engine control unit communicates with numerous sensors that continuously provide information about engine operating conditions. The most important parameters include:

• intake airflow and air mass,
• coolant temperature,
• exhaust gas temperature,
• boost pressure,
• crankshaft and camshaft position,
• ignition timing in petrol engines,
• fuel pressure and injection parameters.

The ECU analyses this data to ensure correct combustion and stable engine operation. It also supports diagnostic functions by storing fault codes that can be read using compatible diagnostic equipment.

The Citroën engine control unit is one of the vehicle’s most important electronic components. It manages engine operation, analyses information received from sensors and communicates with other control modules. A correctly selected and prepared ECU can effectively restore proper vehicle operation. However, matching the part numbers, performing an accurate diagnosis and carrying out the correct programming, cloning or adaptation to the BSI and immobiliser systems are essential.

Frequently asked questions about Citroën engine control units

1. What are the symptoms of a faulty engine control unit in a Citroën?

Possible symptoms include difficulty starting the engine, irregular engine operation, loss of power, delayed throttle response, increased fuel consumption, an illuminated engine warning light or permanently stored fault codes. However, similar problems may also be caused by faulty sensors, damaged wiring, an incorrect power supply, the fuel system or other vehicle modules. A complete diagnosis should therefore be carried out before replacing the ECU.

2. Does a Citroën engine control unit need to be programmed after installation?

This depends on the vehicle model, the ECU type and how the replacement module has been prepared. A used control unit often requires programming, coding or synchronisation with the BSI module and immobiliser. An alternative solution is to clone the software, configuration and immobiliser data from the original ECU to a compatible replacement module.

3. Can a used engine control unit be installed in a Citroën?

Yes, provided that the control unit is technically compatible with the vehicle and has been correctly prepared. An identical housing or matching connectors do not confirm full compatibility. The Citroën or PSA OEM number, manufacturer part number, hardware and software versions, engine type, transmission and vehicle equipment should all be checked.

4. How do I find the correct engine control unit for a Citroën?

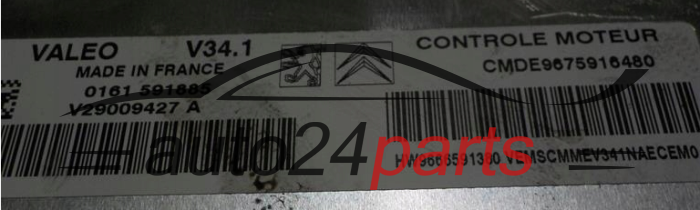

The most important information is shown on the label of the original control unit. Before purchasing, all OEM numbers, hardware references, software versions and manufacturer part numbers should be compared carefully. The Citroën model, year of manufacture, engine code, engine capacity, power output, fuel type and transmission type should also be considered. A clear photo of the original ECU label makes it easier to select the correct module safely.

5. What is the difference between cloning, VIRGIN and IMMO OFF in Citroën control units?

Cloning involves transferring the software, vehicle configuration and immobiliser data from the original control unit to a compatible replacement module. A VIRGIN ECU has been reset to its initial state and requires adaptation or programming to the vehicle, BSI module and immobiliser after installation. IMMO OFF means disabling the immobiliser function in the engine control unit. However, this solution is not available for every Citroën model or every ECU type.
