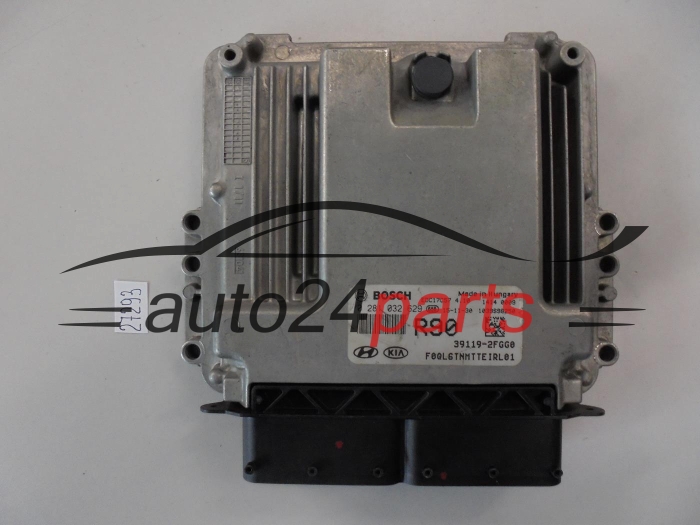

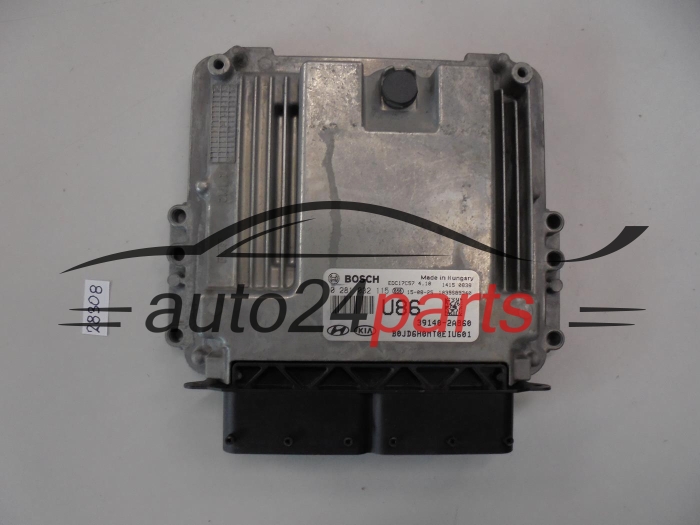

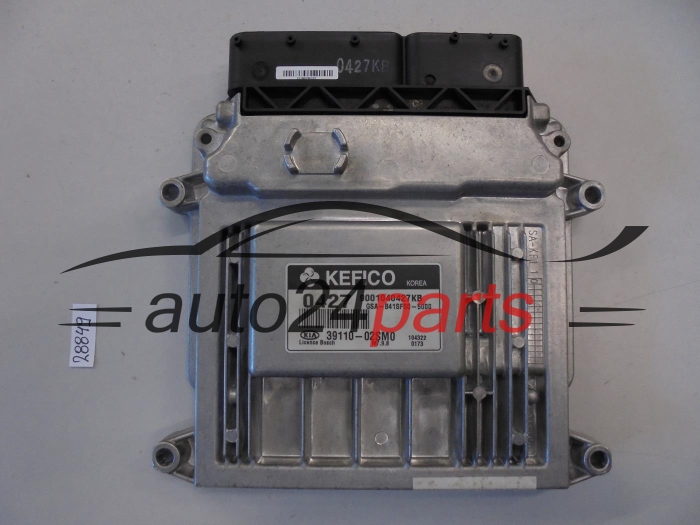

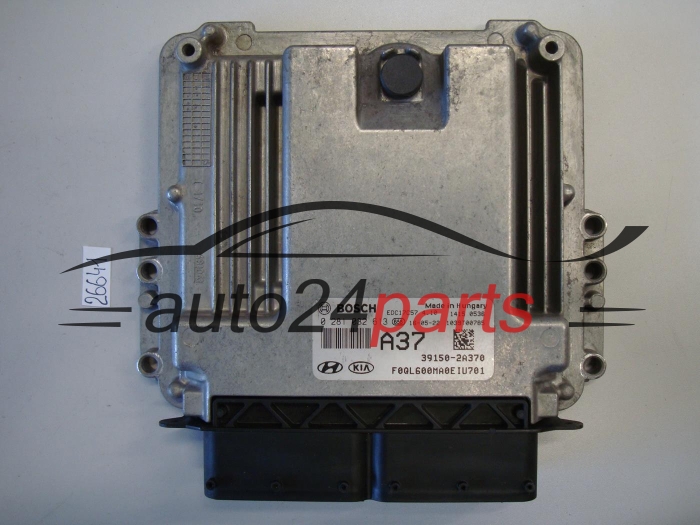

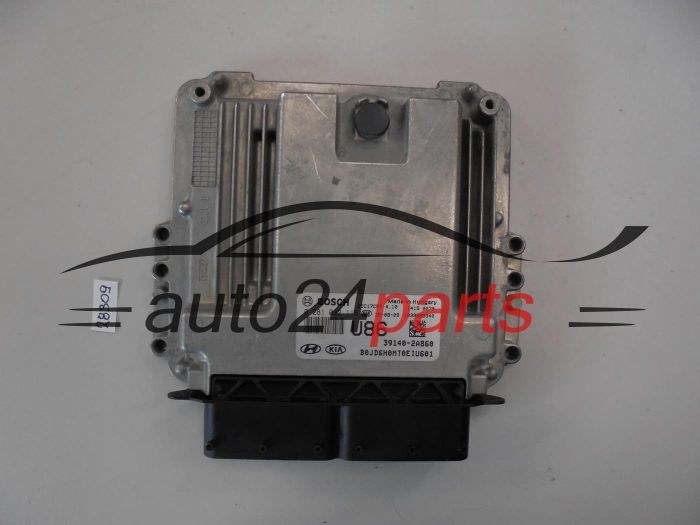

Engine control unit (ECU) for KIA

The engine control unit (ECU) in a KIA vehicle is an essential component responsible for managing the engine’s key functions. The module controls important processes such as fuel delivery and ignition timing by processing data received from numerous sensors. It ensures efficient and reliable engine operation by coordinating all related components.

KIA engine control units are characterised by precise calibration and advanced technology. They are designed to optimise engine performance while reducing fuel consumption and exhaust emissions. This combination of efficiency and control makes the ECU an essential part of modern vehicles.

Key functions and technical details

The control unit performs a range of functions specifically designed to optimise engine operation. The most important include:

1. Precise fuel delivery: The module adjusts the amount of fuel supplied based on real-time data such as air pressure and temperature, improving engine efficiency.
2. Ignition timing control: To ensure optimal combustion, the ignition timing is dynamically adjusted according to the current driving conditions.
3. Exhaust emission monitoring: The control unit continuously monitors the engine’s emission-related parameters and helps ensure compliance with applicable exhaust emission standards.
4. Self-diagnostic system: When a malfunction occurs, the ECU identifies possible causes and stores the relevant fault codes, which can then be read using diagnostic equipment.

Comparison with alternative control units

Compared with control units used by other vehicle manufacturers, KIA modules are known for their reliability and practical operation. While some competing systems may require complex updates or adaptations, KIA control units are supported by diagnostic and software solutions designed to simplify servicing and configuration. They are also built to withstand the demanding conditions of long-term vehicle use.

One potential limitation found in certain older KIA control units is restricted compatibility with newer sensors. In some cases, this may require a software update, additional programming or the installation of a compatible component.

Applications and intended users

A KIA engine control unit is intended for owners who require reliable and efficient engine management. Drivers who value reduced fuel consumption, stable performance and lower emissions benefit from the ECU’s precise control and automatic adjustments. Technicians can also use compatible OBD diagnostic equipment to read fault codes, monitor operating parameters and perform the necessary adaptations.

KIA engine control units combine functionality, precise operation and reliability. Accurate management of the engine ensures stable performance, while integrated diagnostic functions simplify fault detection and servicing. Although certain applications may require programming, adaptation or a software update, a correctly matched ECU provides an effective solution for restoring proper vehicle operation.

Frequently asked questions about KIA engine control units

1. What are the symptoms of a faulty engine control unit in a KIA?

The most common symptoms include difficulty starting the engine, irregular engine operation, loss of power, no response from the accelerator pedal, increased fuel consumption, an illuminated engine warning light and stored fault codes. Similar symptoms may also be caused by sensors, electrical wiring or other control modules, so a thorough diagnosis should be carried out before replacing the ECU.

2. Does a KIA engine control unit need to be programmed after installation?

The requirements depend on the vehicle model, the type of control unit and how it has been prepared. A used ECU may require programming, coding, immobiliser synchronisation or data cloning from the original control unit. An ECU prepared as Plug & Play may be ready for installation without additional work, provided that it has been correctly matched to the specific vehicle.

3. Can a used engine control unit be installed in a KIA?

Yes, provided that the control unit is technically compatible with the vehicle and has been correctly prepared. A matching housing or connector layout alone is not sufficient. The part numbers, software version, engine type, transmission and vehicle equipment should all be checked. In many cases, the immobiliser data and vehicle configuration must also be transferred from the original module.

4. How do I choose the correct engine control unit for a KIA?

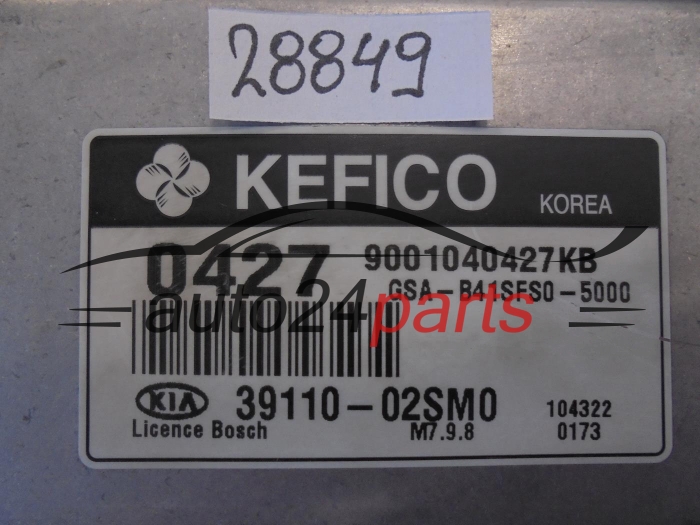

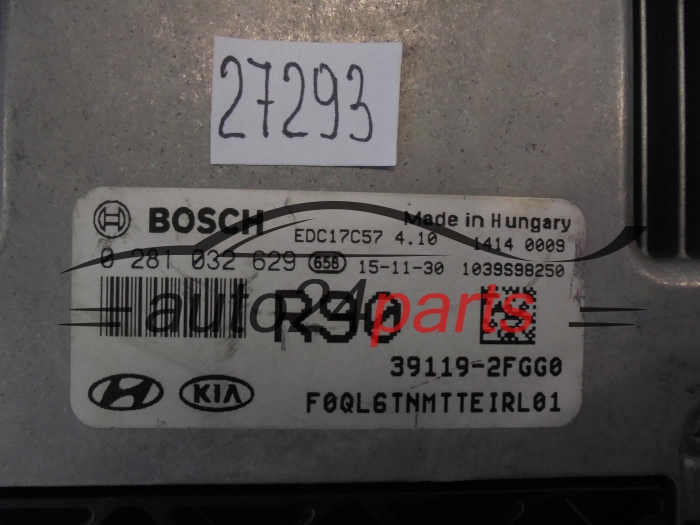

The most important information is found on the label of the original control unit. The KIA model, year of manufacture, engine capacity and version, power output, fuel type and transmission type should also be taken into account. The safest solution is to compare all OEM and manufacturer part numbers or send a clear photo of the ECU label before purchasing.

5. What is the difference between cloning, VIRGIN and IMMO OFF in KIA control units?

Cloning involves transferring the software, configuration and immobiliser data from the original ECU to a compatible replacement module. A VIRGIN ECU has been reset to its initial state and requires adaptation or programming in the vehicle. IMMO OFF means disabling the immobiliser function in the control unit, although this service is not available for every KIA model and ECU type.
