ABS pump and control module Audi Bosch 0265255815 8W0907379J 0265956241
Vendors's code: 0265956241
Product code: 5C1B-519A3
Barcode:
Code 39:
ISBN:
Ask about the product
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
0265255815 - is this the number on your ABS pump?
If your unit shows 0 265 255 815, this used, working Bosch assembly from an Audi could be the right replacement. It comes with control module 8W0 907 379 J - compare both numbers to confirm compatibility.
Bosch hydraulic unit 0265255815 with module 8W0907379J for Audi

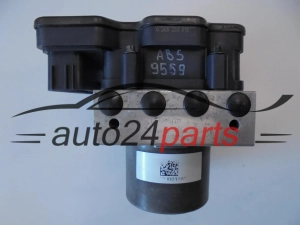

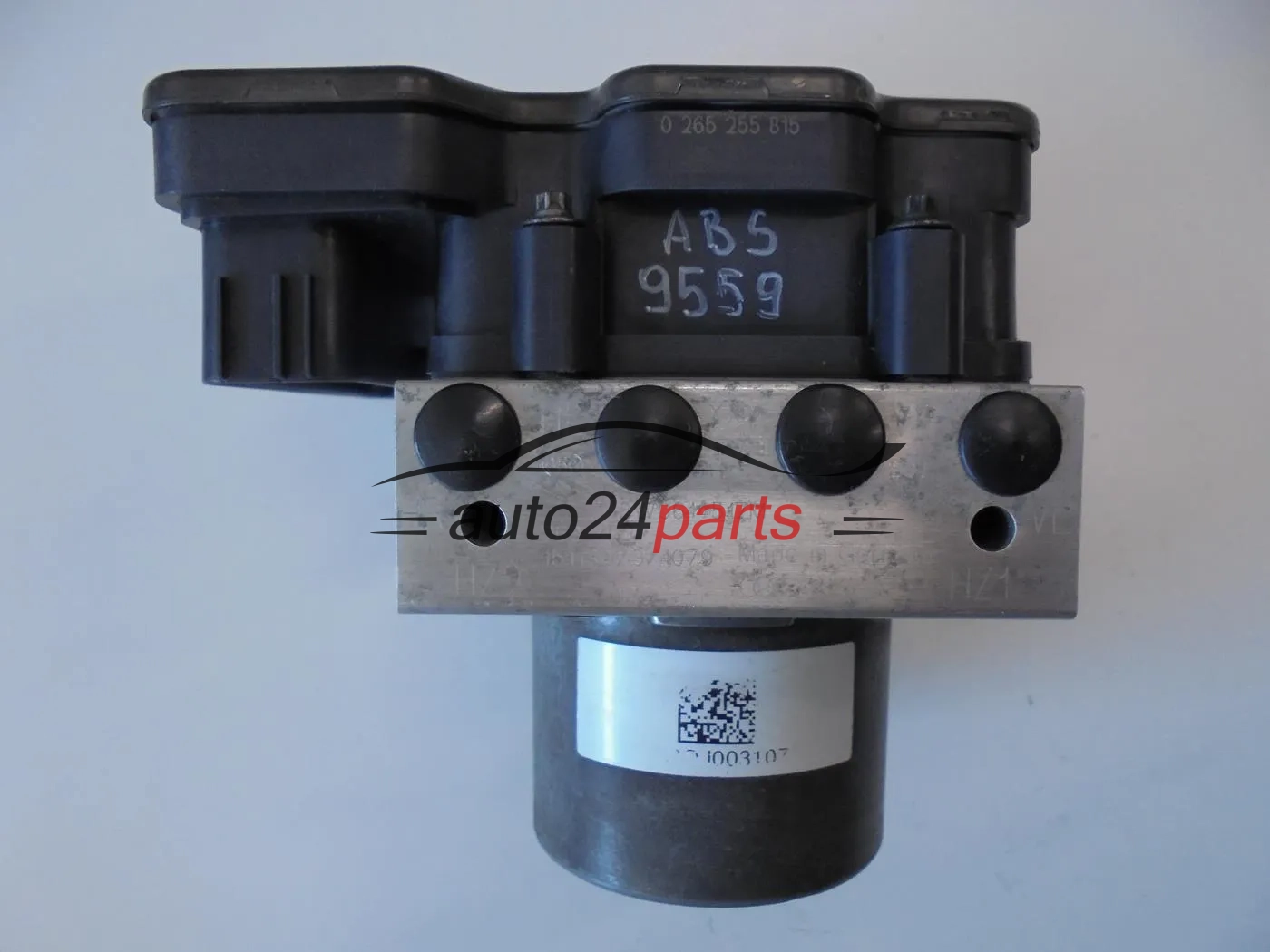

The listing covers the complete assembly: the aluminium hydraulic block with its valves, the pump motor and the electronic module bolted to the block. The Bosch number 0 265 255 815 is laser-marked on the top surface of the module housing, and the markings also include the text ‘ZSB Hydroaggregat ESP9’. The control module carries its own numbers: the VAG Group number 8W0 907 379 J and the manufacturer's number 0 265 956 241. A white sticker with a 2D code is attached to the pump motor.
Markings read from this particular unit
- 0265255815 - Bosch number of the hydraulic block (pump) - the main number of this pump, shown on the housing as 0 265 255 815

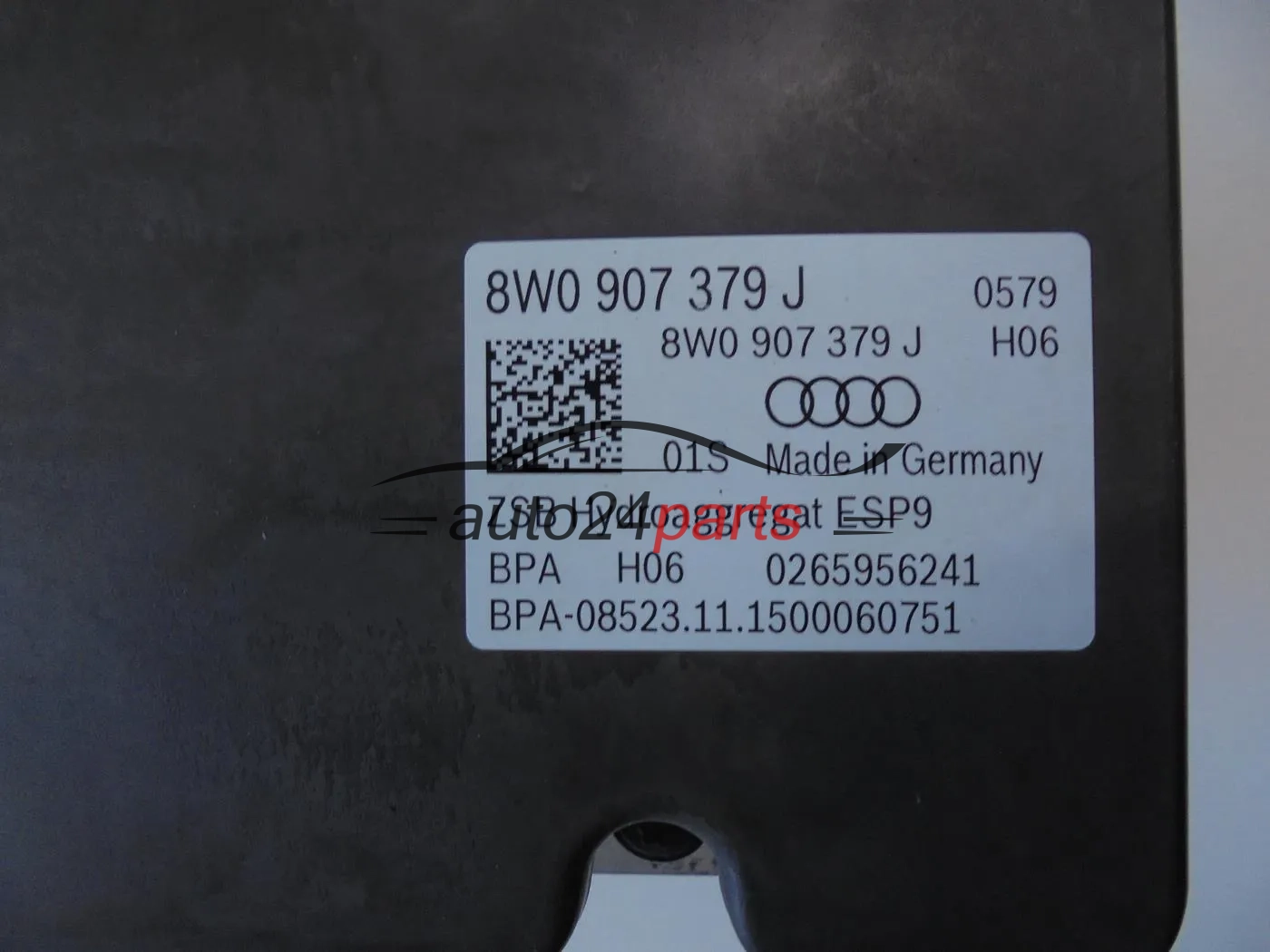

- 8W0907379J - VAG number of the ABS/ESP control module, on the label: 8W0 907 379 J
- 0265956241 - Bosch number of the control module, written as 0 265 956 241
- 2265106528 - Bosch number from the sticker on the side of the housing: 2 265 106 528 - the label does not say what it refers to
The engraving on the aluminium block is faint and mostly illegible, so the laser-marked number on the housing and the control module label are what you should compare first. Module 0 265 956 241 is also listed in our shop with pump 8W0614517H, so the control module number alone does not settle the choice - what counts is a match on block number 0265255815.
When the ABS unit needs attention
A fault in this component usually gives itself away through:
- no communication with the control module during diagnostics,
- an ABS warning light that stays on,
- a stored pump motor fault code.
First connect a diagnostic tool and read the fault memory, then inspect the wheel speed sensors, fuses, wiring and connector, and the battery - some of these produce exactly the same symptoms. Once the unit is fitted, bleed the brakes; on many VW Group cars the control module also has to be coded, and with ESP a basic setting of the steering angle sensor is usually carried out.
Most common questions about 0265255815
| Which car is this pump intended for? |
|---|
| It comes from an Audi. We do not give the model - the fit is based on the numbers 0 265 255 815 and 8W0 907 379 J, which should match your part. |
| What is the technical condition of the part? |
| It is a genuine Bosch part, used and in working order. The warranty period is given in the product features table. |
| Which number should I compare first? |
| No VAG pump number is visible in the photos of this unit, so the reference point is Bosch block number 0265255815. The second step is to check control module number 8W0907379J. |
| What do the Bosch numbers on this unit mean? |
| 0 265 255 815 is the hydraulic block number and 0 265 956 241 is the control module number. Number 2 265 106 528 comes from the sticker on the side of the housing, which does not describe its role. |
Send us a photo of the markings on your unit or your VIN, and we will check whether this assembly will fit.
