A faulty transmission control module (TCM) most often causes limp mode with the gearbox stuck in one gear, harsh jolts when you select D or R, erratic gear changes, flashing PRND letters and a gearbox or engine warning light. However, the same symptoms are often caused by a low gearbox oil level, a weak battery, a poor earth or a faulty sensor. To test a transmission control module, start by checking the battery and reading the fault codes with a diagnostic tool that can talk to the gearbox control unit, then check the power supply, the connector, the oil and the live data. Below we explain the symptoms, the diagnostic steps and what the most common fault codes mean.
ABS pump and control module Audi Volkswagen ATE 1K0614517EG 10021210364 1K0907379BS 10096103833
Vendors's code: 10021210364
Product code: 9BE9-983DB
Barcode:
Code 39:
ISBN:
€325.20
Price
€325.20
€400.00
Price
€400.00
Ask about the product
ABS pump and control module Audi Volkswagen ATE 1K0614517EG 10021210364 1K0907379BS 10096103833
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
1K0614517EG - is this the number on your ABS pump?
Check the black sticker on your pump motor: if it shows 1K0 614 517 EG and the control module is numbered 1K0 907 379 BS, this assembly is worth considering. It is a genuine ATE unit for Audi and Volkswagen, used and in working order.
ATE ABS pump 1K0614517EG and control module 1K0907379BS - Audi, VW
Control module 1K0 907 379 BS is the ‘brain’ of this assembly: it collects information from the speed sensors on all the wheels and uses it to decide when to activate the valves and pump 1K0614517EG. If the signal from one of the sensors drops out or is disrupted, the module usually switches ABS off and turns on the warning light. That is why it is worth ruling out a fault in the sensors and their wiring before judging the unit itself.
Numbers to check before buying

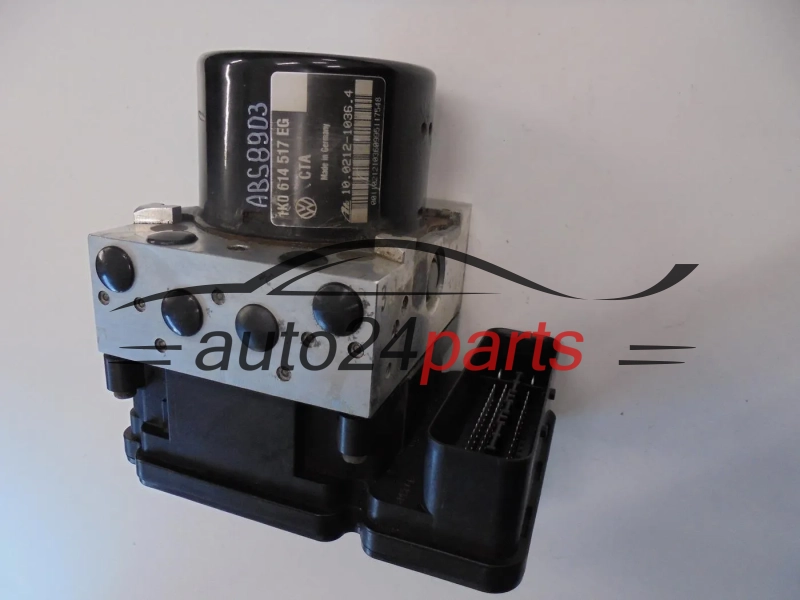

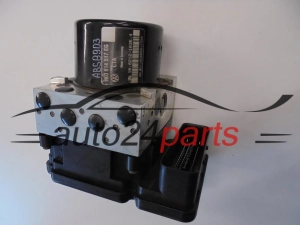

- 1K0614517EG - VAG number of the ABS pump (hydraulic unit), on the sticker on the pump motor: 1K0 614 517 EG
- 10021210364 - ATE number of the hydraulic block (pump), on the sticker on the pump motor: 10.0212-1036.4

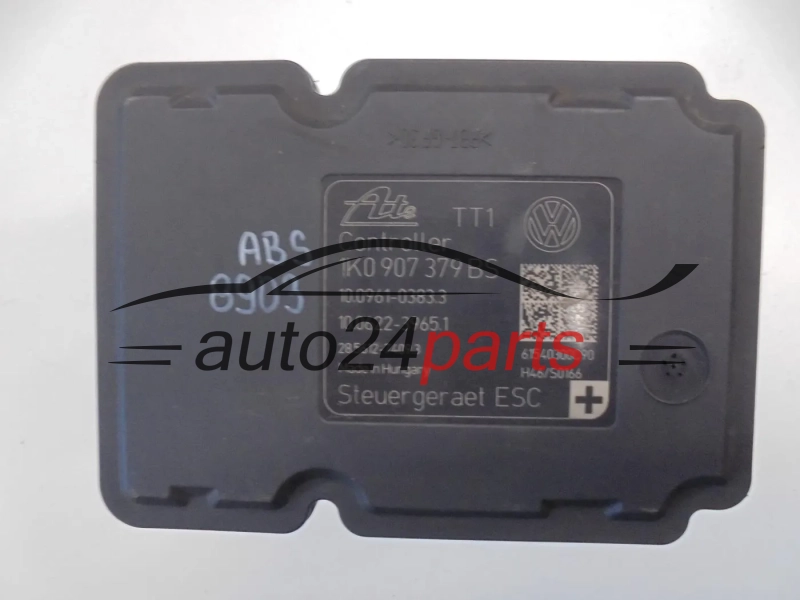

- 1K0907379BS - VAG number of the ABS/ESP control module, on the control module label: 1K0 907 379 BS
- 10096103833 - ATE number from the control module label: 10.0961-0383.3
- 28561274093 - ATE number from the control module label: 28.5612-7409.3

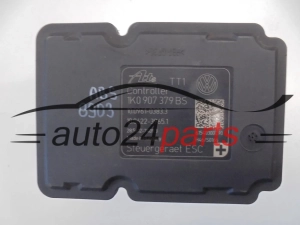

The black foil barcode sticker is on the pump motor, and the label with the words ‘Controller’ and ‘Steuergeraet ESC’ is on the module housing. Number 1K0 614 517 has a great many suffix versions, in our shop too, so the suffix EG is crucial here.
When the ABS unit stops working properly
In this situation the usual signs are:
- no diagnostic connection to the module,
- an ABS warning light that will not go out,
- a pump motor fault stored in the control module.
Start the diagnosis by reading the faults and checking the fuses, the wiring loom and plug, and the battery voltage. After the replacement, bleed the brakes, code the module with a diagnostic tool if the car requires it, and usually carry out the basic setting of the steering angle sensor and the ESP sensors.
Questions and answers about 1K0614517EG
| Which make is this pump intended for? |
|---|
| For Audi and Volkswagen. We do not specify a model - the fit follows from the numbers matching. |
| What condition is the assembly in? |
| This is a genuine ATE part, used and in working order. The warranty period is given in the product features table. |
| What do the ATE numbers tell me? |
| 10.0212-1036.4 denotes the hydraulic block (pump), while 10.0961-0383.3 and 28.5612-7409.3 come from the control module label. |
| Can I fit a 1K0 614 517 version with a different letter? |
| A different suffix may indicate a different version of the system. The safest option is the identical suffix EG, and if in doubt, ask us before buying. |
Send us photos of both labels or your VIN - we will help you establish whether this is the assembly for your car.
