ABS pump and control module Audi Volkswagen ATE 5Q0614517C 10022001874 5Q0907379D 28515059613
Vendors's code: 5Q0907379D
Product code: B108-9431C
Barcode:
Code 39:
ISBN:
€182.93
Price
€182.93
€225.00
Price
€225.00
Ask about the product
ABS pump and control module Audi Volkswagen ATE 5Q0614517C 10022001874 5Q0907379D 28515059613
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Will ABS pump 5Q0614517C fit your Audi or Volkswagen?
This used, working ATE unit for Audi and Volkswagen has pump 5Q0 614 517 C and control module 5Q0 907 379 D - and it is these numbers that decide the match.
ATE ABS pump 5Q0614517C with control module 5Q0907379D

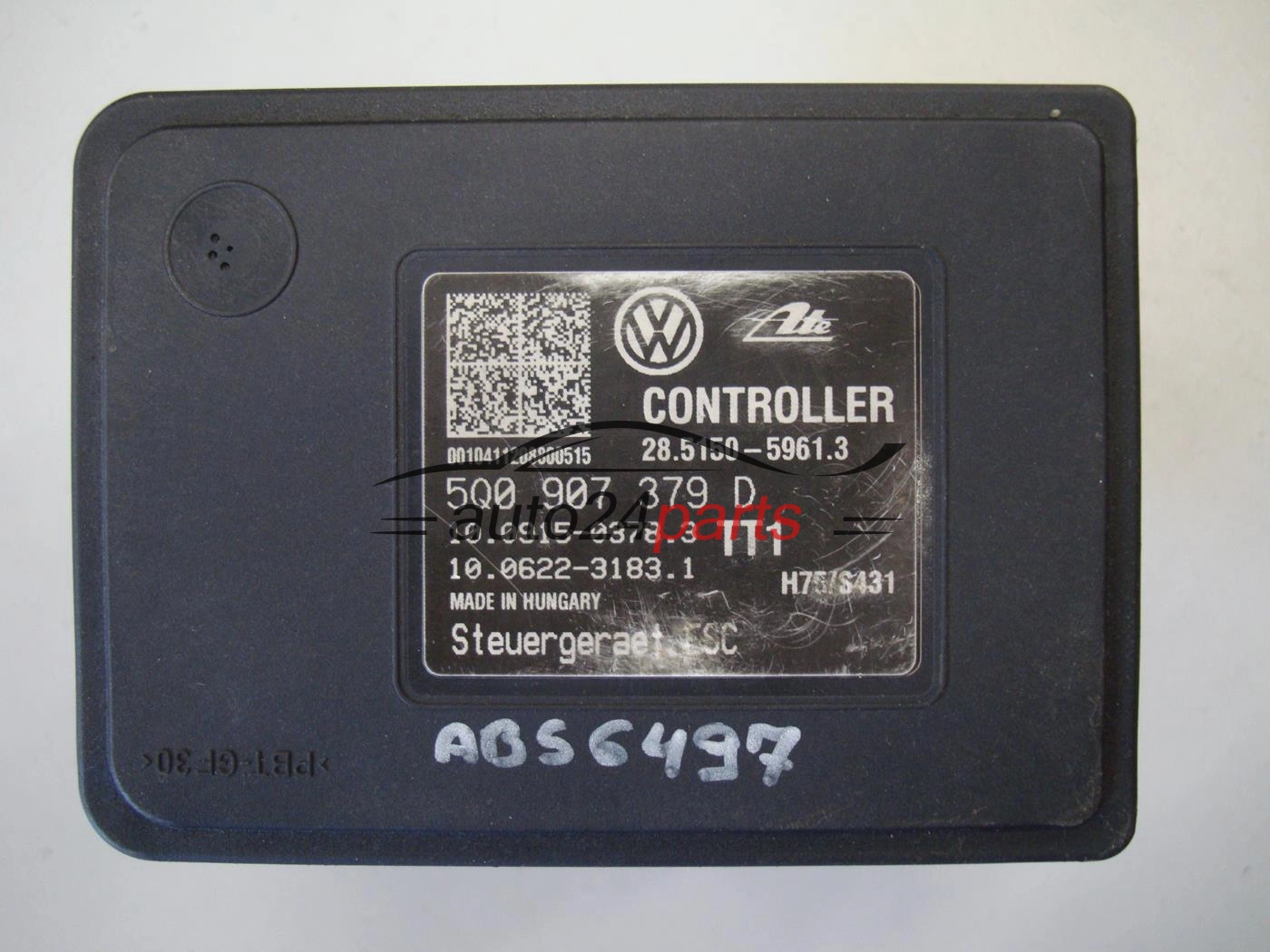

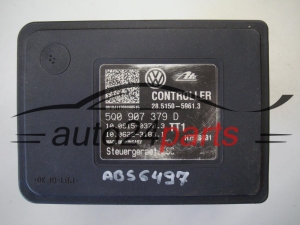

This unit carries two types of number: VAG and ATE. VAG number 5Q0614517C identifies the hydraulic unit in the Audi and Volkswagen catalogue, while 10.0220-0187.4 is the ATE number of the hydraulic block alone. The control module label, marked with the words ‘CONTROLLER’ and ‘Steuergeraet ESC’, shows VAG number 5Q0 907 379 D and two ATE numbers: 28.5150-5961.3 and 10.0622-3183.1. When matching, the VAG numbers are the reference point.
VAG and ATE numbers of this unit

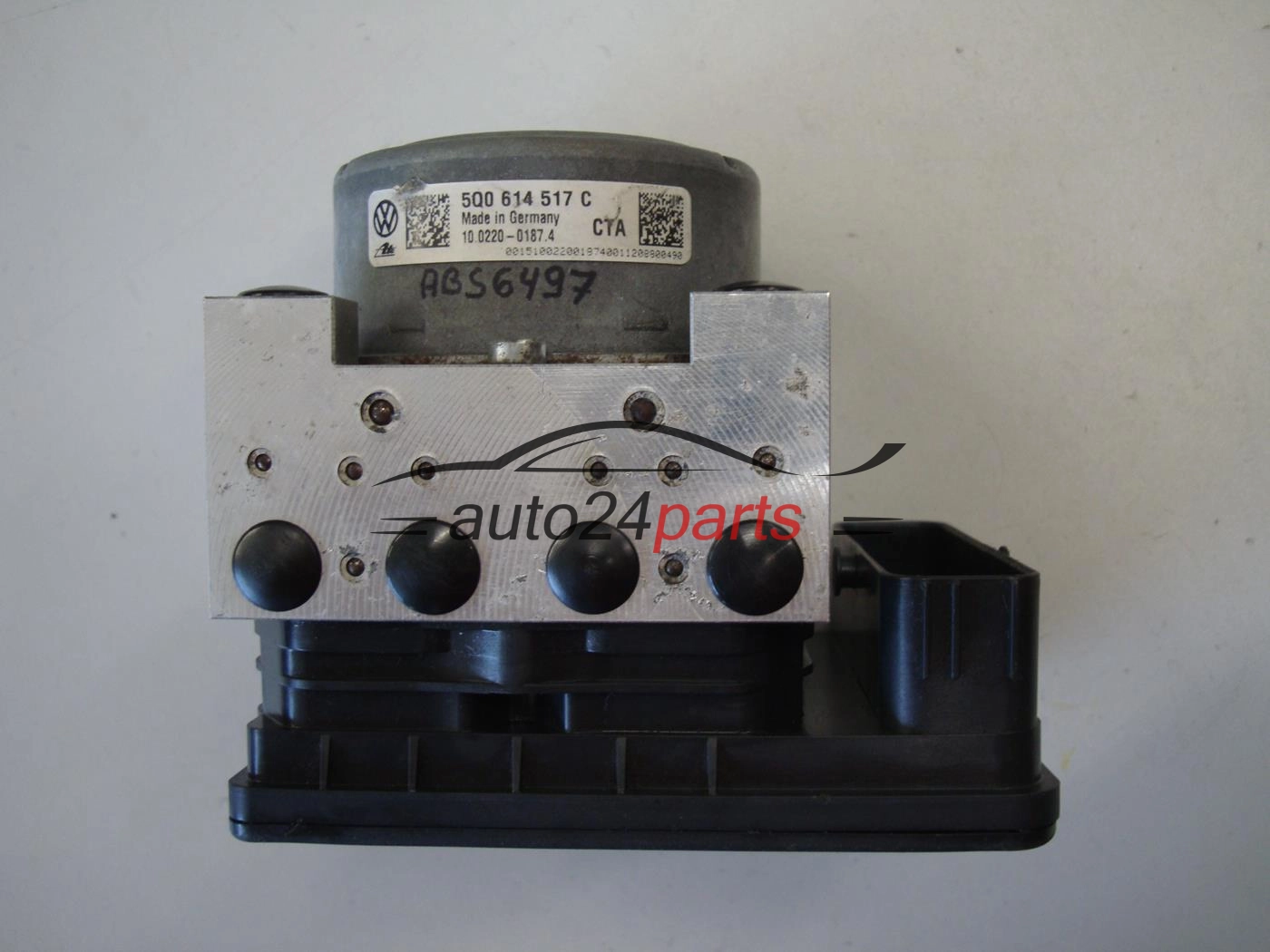

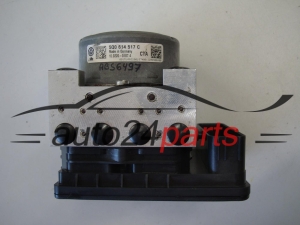

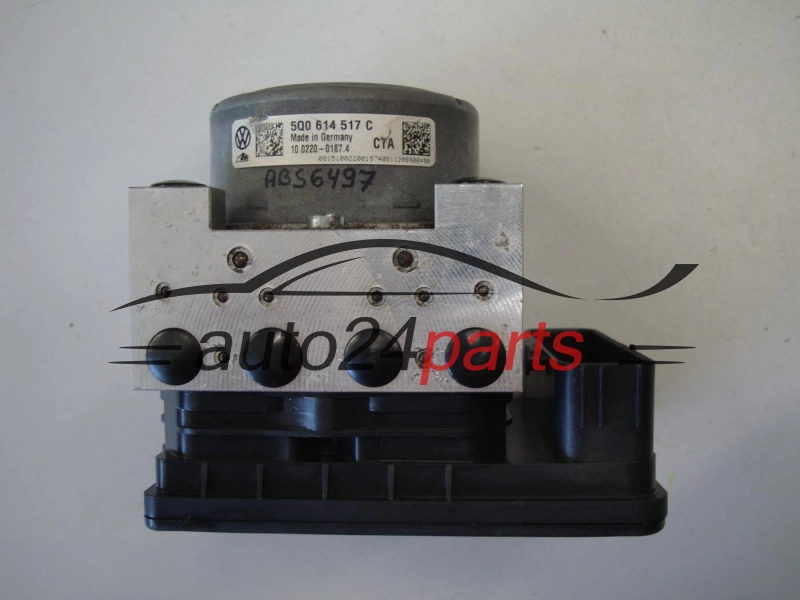

- 5Q0614517C - VAG, ABS pump (hydraulic unit) - on the label 5Q0 614 517 C
- 10022001874 - ATE, hydraulic block (pump) - on the label 10.0220-0187.4
- 5Q0907379D - VAG, ABS/ESP control module - on the label 5Q0 907 379 D
- 28515059613 - ATE, number from the control module label - written 28.5150-5961.3
- 10062231831 - ATE, another number from the control module label - written 10.0622-3183.1
You will find one sticker on the hydraulic block and the other on the control module housing. Our shop has one more listing with the same control module 5Q0 907 379 D and pump 5Q0 614 517 C, as well as 10 versions of the pump with the core number 5Q0 614 517 and a different letter - so check the C suffix especially carefully.
Typical symptoms of faulty ABS
The ABS unit may be the cause if you notice:
- the ABS warning light together with the ESP light,
- ABS not working under hard braking,
- a pump fault logged in diagnostics.
First carry out a fault code reading and rule out a failed wheel speed sensor, a blown fuse, a damaged connector or low battery voltage. After fitting, bleed the system; on cars with ESP a basic setting of the sensors is usually required too, and the control module often needs coding.
Worth knowing before you buy
| Which makes does this unit fit? |
|---|
| The VAG numbers point to Audi and Volkswagen. We do not give a model - compatibility is checked by number 5Q0614517C and the control module number. |
| What state is the part in? |
| Used, genuine, working. Warranty period - in the product features table. |
| Do the brakes need bleeding after the replacement? |
| Yes, it is a standard part of fitting - without bleeding, the brake system will not work properly. |
| Which number carries the most weight? |
| The VAG pump number with the letter C, followed immediately by the VAG control module number 5Q0 907 379 D. The ATE numbers only help to confirm compatibility. |
Give us your VIN or show us the labels on your part in a photo - we will confirm whether it is the same unit.
