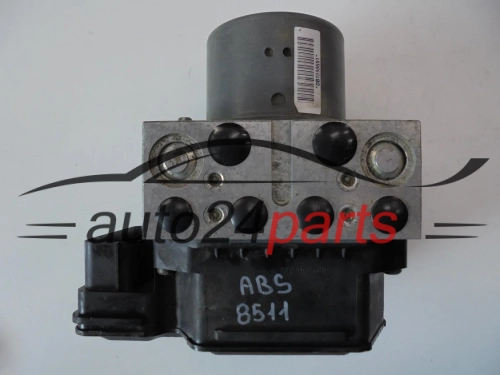

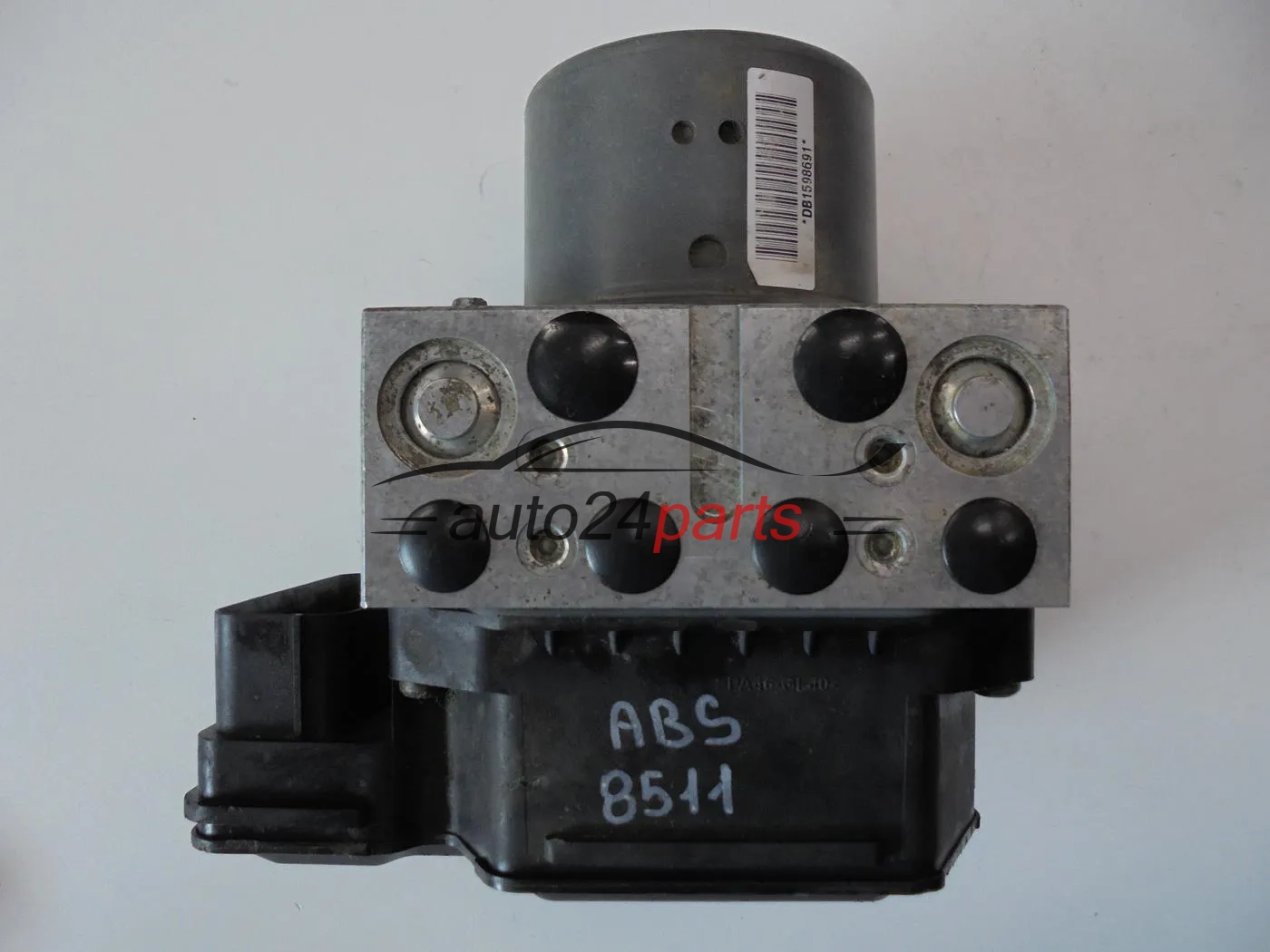

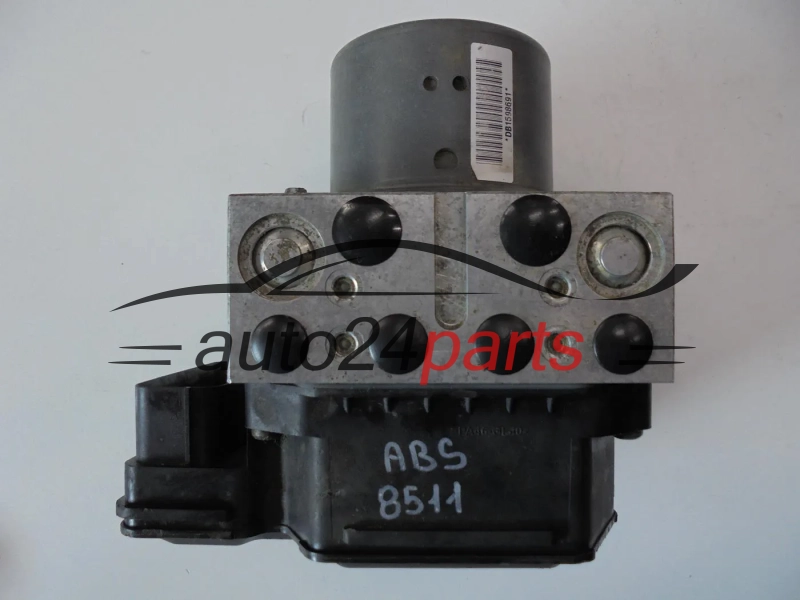

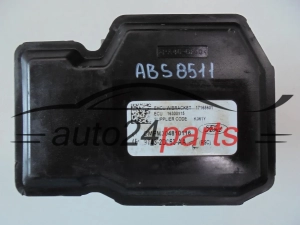

ABS pump Ford Edge 9T432D063AA 304810116
  • ABS pump Ford Edge 9T432D063AA 304810116
  • ABS pump Ford Edge 9T432D063AA 304810116 - photo 2
  • Part Type ABS PUMP
  • Vehicle Make and Model FORD
  • OEM Part Number 9T43-2D063-AA 304810116
  • Warranty 6-month warranty
  • Testing & Inspection Device thoroughly inspected and tested by a certified technician
  • Condition USED ORYGINAL IN GOOD CONDITION
ORYGINAL
with VAT without VAT
Price €500.00
PLN GBP EUR USD
Availability:
product-availability-module In stock
pcs.

Fast Delivery

DHL Express - 30 euro

6 Month Warranty

Returns Possible up to 14 days

Secure payments

Stripe - Paypal - Credit Card
Ask about the product
Shipping from €30.00 - shipping (Poland)

Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price

PRODUCT DETAILS

  • Part Type ABS PUMP
  • Vehicle Make and Model FORD
  • OEM Part Number 9T43-2D063-AA 304810116
  • Warranty 6-month warranty
  • Testing & Inspection Device thoroughly inspected and tested by a certified technician
  • Condition USED ORYGINAL IN GOOD CONDITION

When is ABS pump 9T432D063AA the right choice for your Ford Edge?

Used ABS pump with control unit, number 9T432D063AA, inspected before sale. Matched by the numbers on the block and sticker.

Go to full description

Used Ford Edge ABS pump with number 9T432D063AA

If the ABS warning light is on in your Ford Edge, one possible cause is the hydraulic module or its control unit. ABS pump 9T432D063AA is a used original part, inspected before sale. According to the listing, the pump comes from the Ford Edge model.

Numbers and markings on the ABS pump

Below are the numbers as they appear on the labels, together with the single-string form used in catalogues:

  • 9T43-2D063-AA (catalogue format: 9T432D063AA), original Ford number,
  • 304810116, additional number from the listing.

Check the numbers on your pump and compare them with those above. If any of them differs, contact us before ordering.

Symptoms of a faulty ABS pump or control unit

  • the ABS warning light comes on after the engine is started and stays on,
  • valve or pump motor faults are stored in the control unit memory,
  • the pump motor switches on at unusual moments or runs louder than usual,
  • the ABS warning light comes on together with the stability control warning light.

Before buying a module, read the fault codes with a diagnostic tester. A faulty wheel speed sensor or its wiring can cause the same symptoms, and in that case replacing the pump will not help. After replacement the fault codes usually need to be cleared, and if the brake lines have been disconnected, the system must be bled.

Questions and answers

Where do I find number 9T432D063AA on my pump?

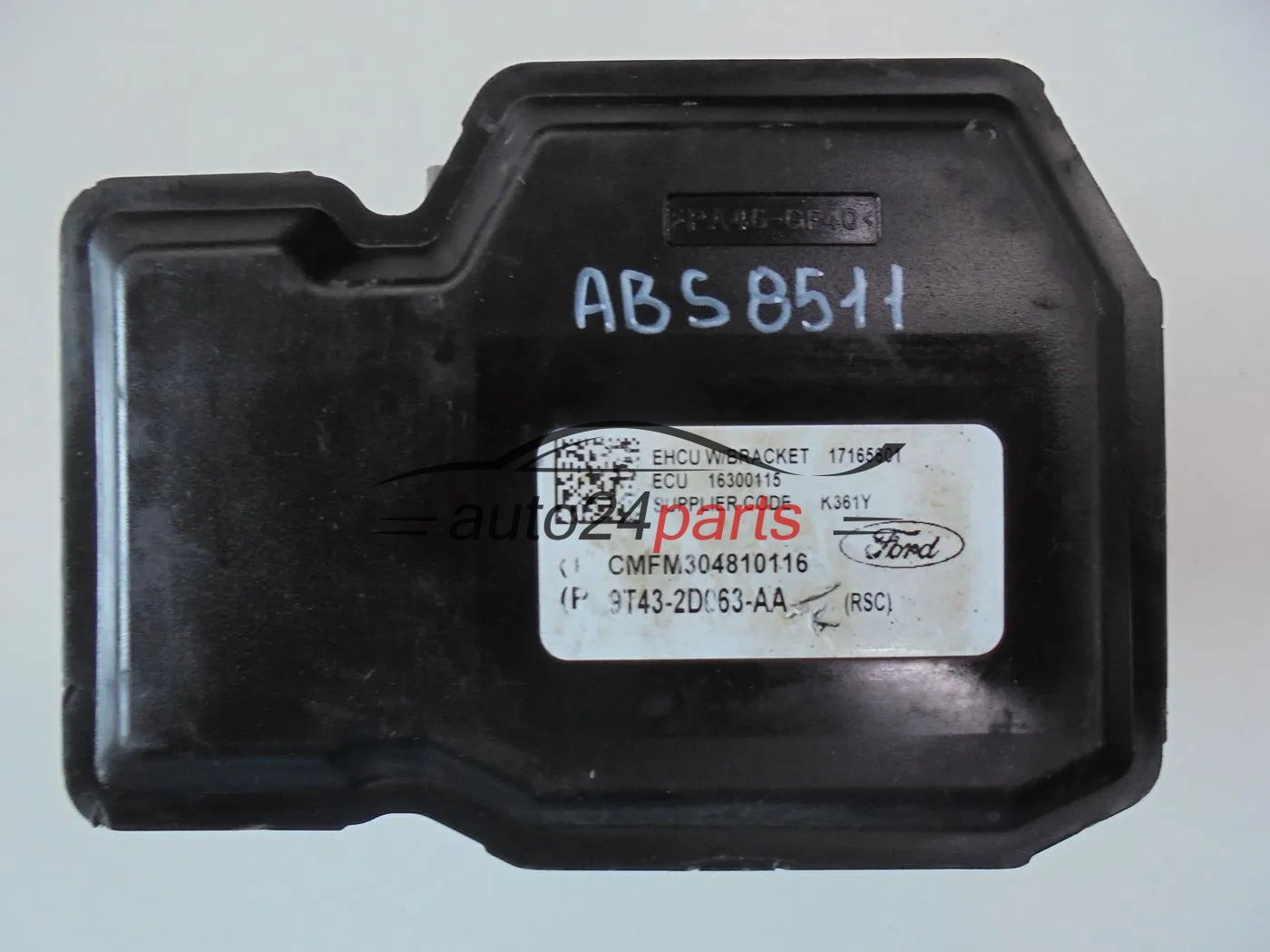

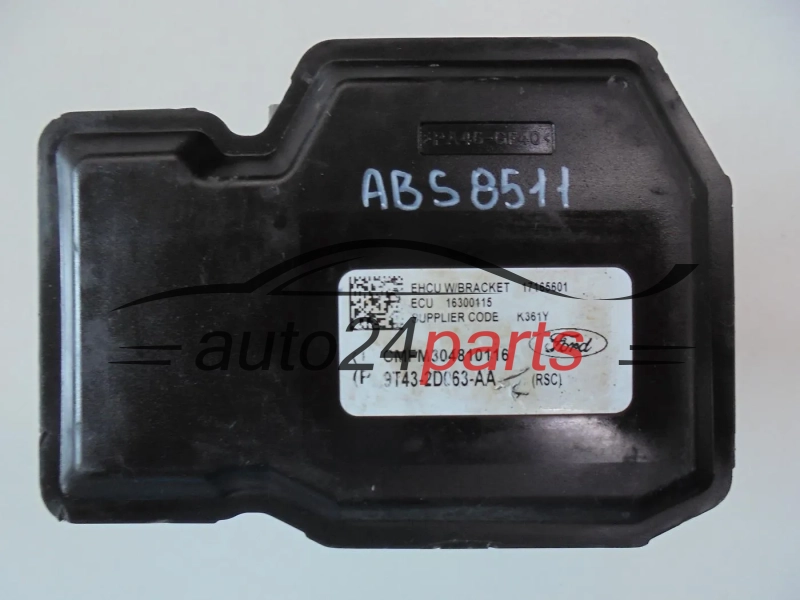

The numbers are stamped or printed on the aluminium hydraulic block, and the control unit has a separate sticker. Take a close-up photo of both places in good light.
Are the make and model of the car enough to choose the part?
No. A single model comes with different versions of the module, depending on the engine, year of manufacture and drivetrain. The most reliable reference is the number on the original pump.
Can I send a photo for a compatibility check?
Yes. Contact us and send a photo of the numbers on your original pump, and we will help you check whether this module will fit.
Is this a new part?
No. We sell used original modules, each one inspected before sale. You will find the warranty period in the product features table.

Not sure about the match? Send us a photo of the numbers on your ABS pump and we will check whether this module will fit.
