ABS pump and control module Audi Volkswagen Bosch 8E0614111M 0265220441 0273004134
Vendors's code: 0265220441
Product code: 8E0614111M
Barcode:
Code 39:
ISBN:
€203.25
Price
€203.25
€250.00
Price
€250.00
Ask about the product
ABS pump and control module Audi Volkswagen Bosch 8E0614111M 0265220441 0273004134
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
How do you match ABS pump 8E0614111M to your car?

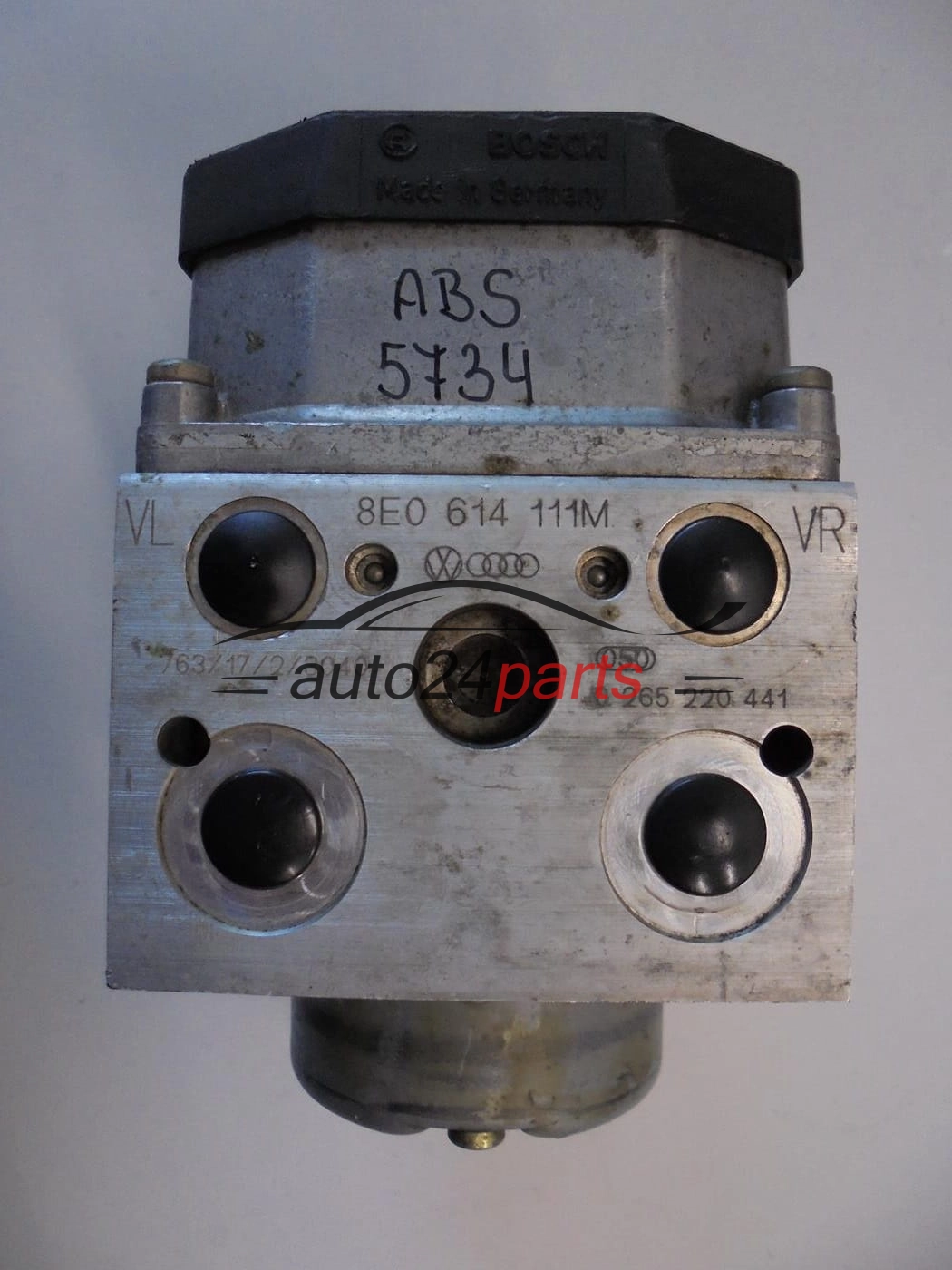

Find the numbers 8E0 614 111 M and 0 265 220 441 on the aluminium block and compare them with this listing. It is a used, working Bosch assembly with control module 0 273 004 134, intended for Audi and Volkswagen.
Bosch hydraulic block 0265220441 - unit 8E0614111M
Let us start with what the entries in this listing mean. Number 8E0614111M is the VAG designation of the whole ABS unit, and 0 265 220 441 is the number Bosch uses to describe the hydraulic block with the pump. The control module has its own Bosch number, 0 273 004 134, with no VAG number in our data. Since the first two numbers are visible on the block, that is where the comparison begins.
Breakdown of Bosch and VAG numbers
- 8E0614111M - VAG number of the ABS pump (hydraulic unit), visible on the block: 8E0 614 111 M
- 0265220441 - Bosch number of the hydraulic block (pump), visible on the block: 0 265 220 441

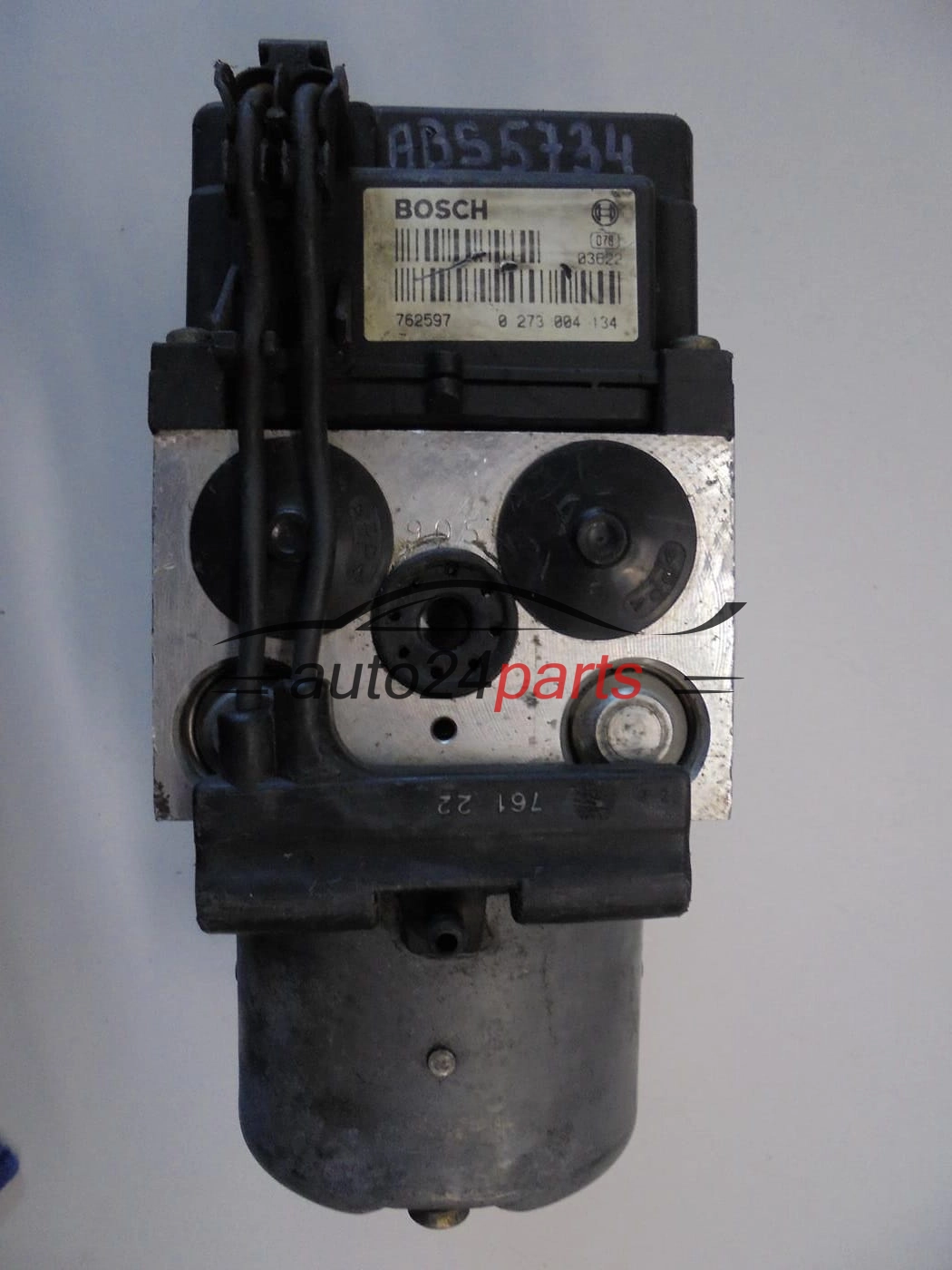

- 0273004134 - Bosch number of the control module: 0 273 004 134
The block has the port markings HZ1, HZ2, VL, VR, HL and HR, which help when connecting the brake lines. Our shop has 8 other versions of part number 8E0 614 111, so when buying, pay attention to the letter M at the end of the number.
Symptoms that call for a look at the pump
Damage to the ABS assembly is usually signalled by:
- the ABS warning light on together with the ESP lamp,
- ABS inactive during braking,
- a pump fault stored in the control module memory.
First read the faults with a diagnostic tool, then check the wheel speed sensors, fuses, wires, the plug and the battery, because even a faulty sensor produces a similar picture. After fitting the assembly, bleed the brakes and, if the car requires it, code the control module with a diagnostic tool.
Questions about pump 8E0614111M
| Will this assembly fit my Audi or Volkswagen? |
|---|
| It is intended for Audi and Volkswagen. We do not confirm the model - matching numbers decide the fit. |
| What condition is the part in, and what about the warranty? |
| It is a genuine Bosch assembly, used and in working order. The warranty period is given in the product features table. |
| Does the listing include the pump together with the control module? |
| Yes, we sell the hydraulic block with pump 8E0 614 111 M together with Bosch control module 0 273 004 134. |
| What do the Bosch numbers of this assembly mean? |
| Number 0 265 220 441 relates to the hydraulic block (pump) and 0 273 004 134 to the control module. Numbers starting with 0 273 refer to the electronics. |
In doubt? Show us the numbers from the block in a photo or give us your VIN, and we will check them together.
