A faulty transmission control module (TCM) most often causes limp mode with the gearbox stuck in one gear, harsh jolts when you select D or R, erratic gear changes, flashing PRND letters and a gearbox or engine warning light. However, the same symptoms are often caused by a low gearbox oil level, a weak battery, a poor earth or a faulty sensor. To test a transmission control module, start by checking the battery and reading the fault codes with a diagnostic tool that can talk to the gearbox control unit, then check the power supply, the connector, the oil and the live data. Below we explain the symptoms, the diagnostic steps and what the most common fault codes mean.
ABS pump and control module Audi Volkswagen Seat Skoda ATE 1J0614417D 10020600384 1C0907379K 10096003163
Vendors's code: 1C0907379K
Product code: 1J0614417D
Barcode:
Code 39:
ISBN:
$82.70
Price
$82.70
$101.73
Price
$101.73
Ask about the product
ABS pump and control module Audi Volkswagen Seat Skoda ATE 1J0614417D 10020600384 1C0907379K 10096003163
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
$30.52
-
shipping
(Poland)
from
$30.52
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
1J0614417D - is this the number on your ABS pump?
If so, this genuine, used and working ATE assembly with control module 1C0 907 379 K may be the right part. We offer it for Audi, Volkswagen, Seat and Skoda cars, and matching is based on the numbers.
ATE ABS pump 1J0614417D with module 1C0907379K

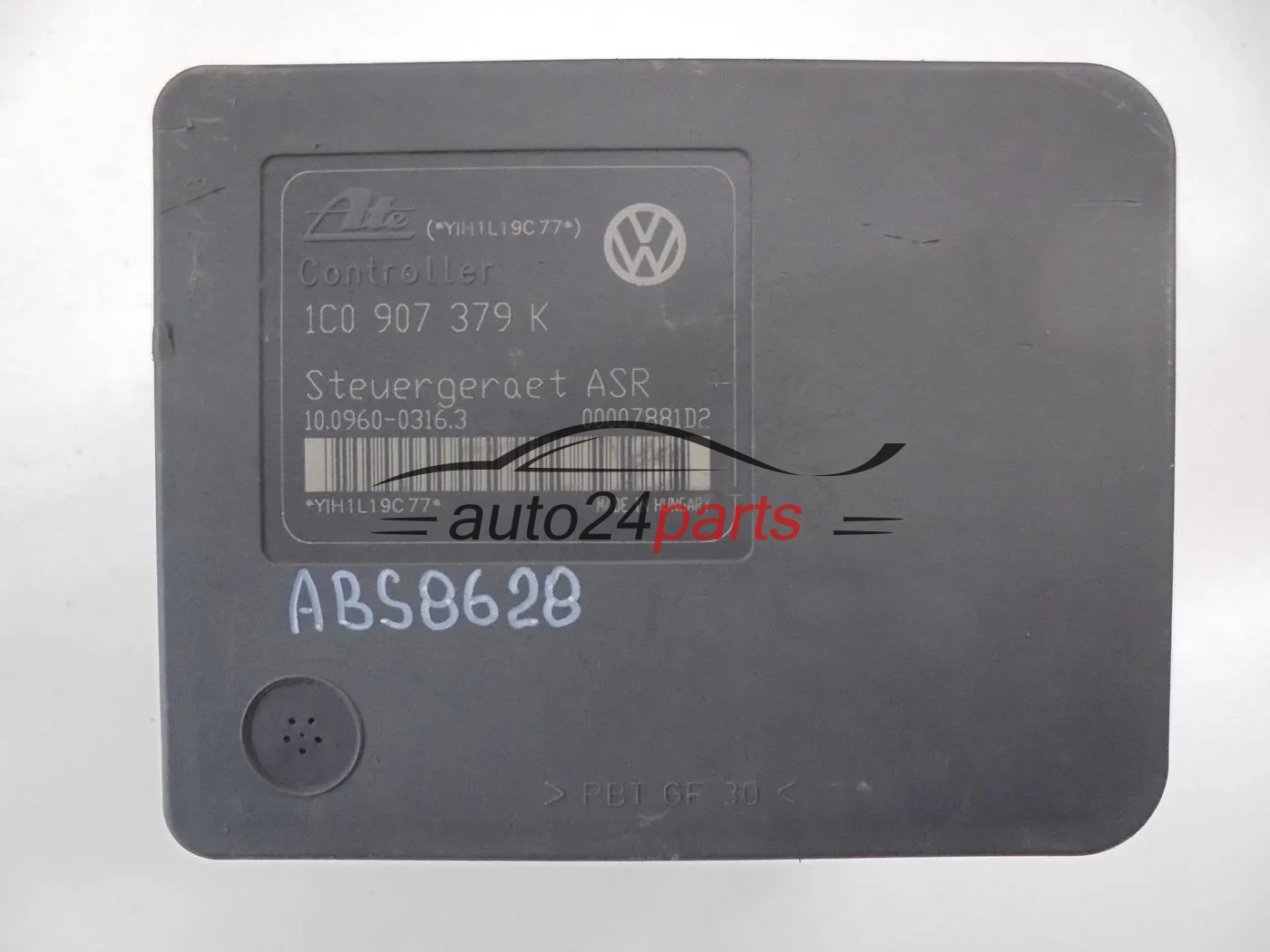

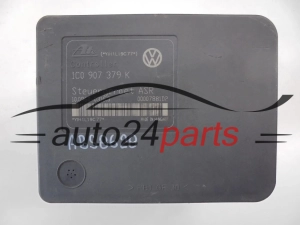

The whole assembly is usually replaced when diagnostics point to a fault in the hydraulic block or the electronics and replacing a single component is not an option. This listing covers unit 1J0 614 417 D with ATE block 10.0206-0038.4 and the bolted-on control module 1C0 907 379 K. The module label bears the words ‘Controller’ and ‘Steuergeraet ASR’ and ATE number 10.0960-0316.3. With the complete set of numbers, you can compare both parts with what you have in your car.
List of numbers to verify
- 1J0614417D - VAG number of the ABS pump (hydraulic unit), on the sticker: 1J0 614 417 D
- 10020600384 - ATE number of the hydraulic block (pump), on the sticker: 10.0206-0038.4
- 1C0907379K - VAG number of the ABS/ESP control module, on the label: 1C0 907 379 K
- 10096003163 - ATE number from the control module label, written as 10.0960-0316.3

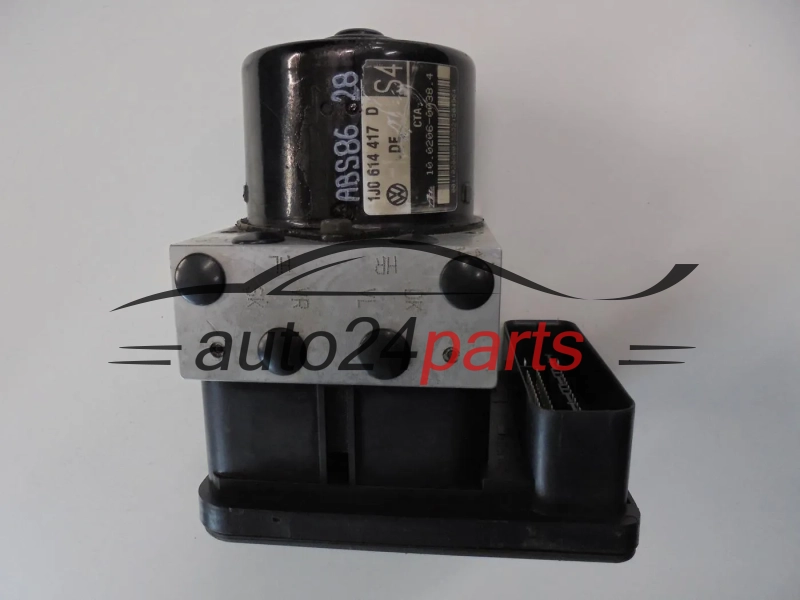

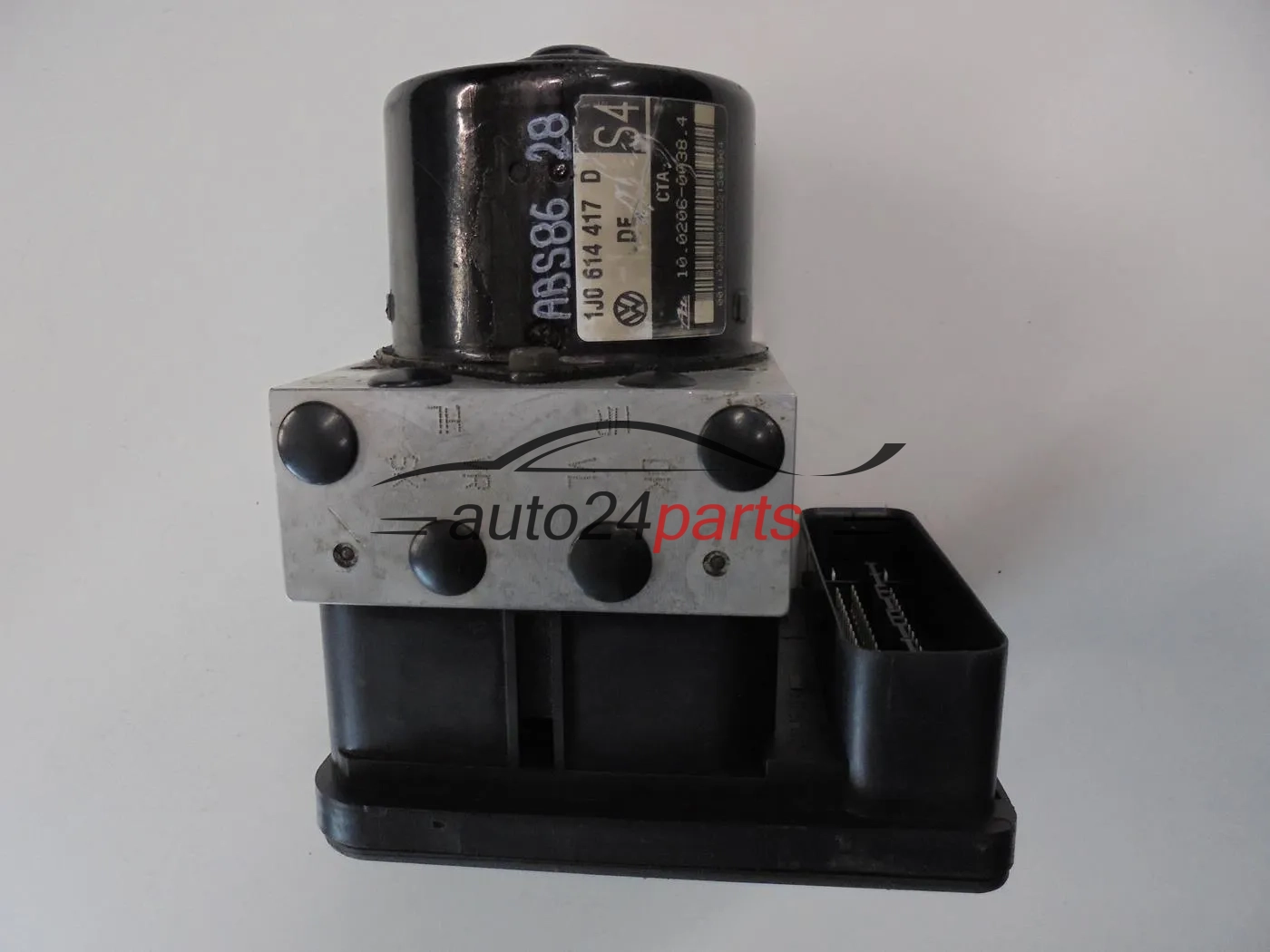

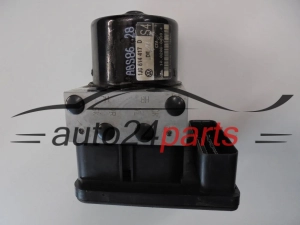

The pump markings are printed on a black-and-white barcode foil stuck to the motor; the control module has a separate label on its housing. In the shop you will find three other versions of this pump with a different suffix, so compare the letter D with the original.
Faults that may point to the ABS assembly
The most frequently encountered symptoms are:
- no connection to the control module during diagnostics,
- the ABS warning light coming on while driving,
- a pump motor fault in the fault memory.
Before the replacement, check the stored codes with a diagnostic tool, then the wheel speed sensors, fuses, wiring, connector and battery. After fitting, it is time to bleed the brakes, and on Volkswagen cars and related makes the electronics quite often need coding as well.
Buyers' questions about pump 1J0614417D
| Which car does the assembly fit? |
|---|
| Audi, Volkswagen, Seat and Skoda cars - although compatibility is decided by the numbers on the labels, not by the make. |
| Is this a genuine part? |
| Yes, a genuine part from a dismantled vehicle, used and in working order. The warranty period is given in the product features table. |
| Which number is key? |
| The VAG pump number, including the last letter. The control module number and the ATE markings let you confirm your choice further. |
| What are the numbers 10.0206-0038.4 and 10.0960-0316.3? |
| They are numbers from the manufacturer ATE: the first relates to the hydraulic block, the second comes from the control module label. |
Write to us with photos of the stickers or your VIN attached - we will confirm whether the numbers match.
