ABS pump and control module Audi Volkswagen ATE 5Q0614517C 10022002074 5Q0907379D 10062232391
Vendors's code: 5Q0614517C
Product code: 10022002074
Barcode:
Code 39:
ISBN:
€182.93
Price
€182.93
€225.00
Price
€225.00
Ask about the product
ABS pump and control module Audi Volkswagen ATE 5Q0614517C 10022002074 5Q0907379D 10062232391
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
What should you look for on the label of ABS pump 5Q0614517C?

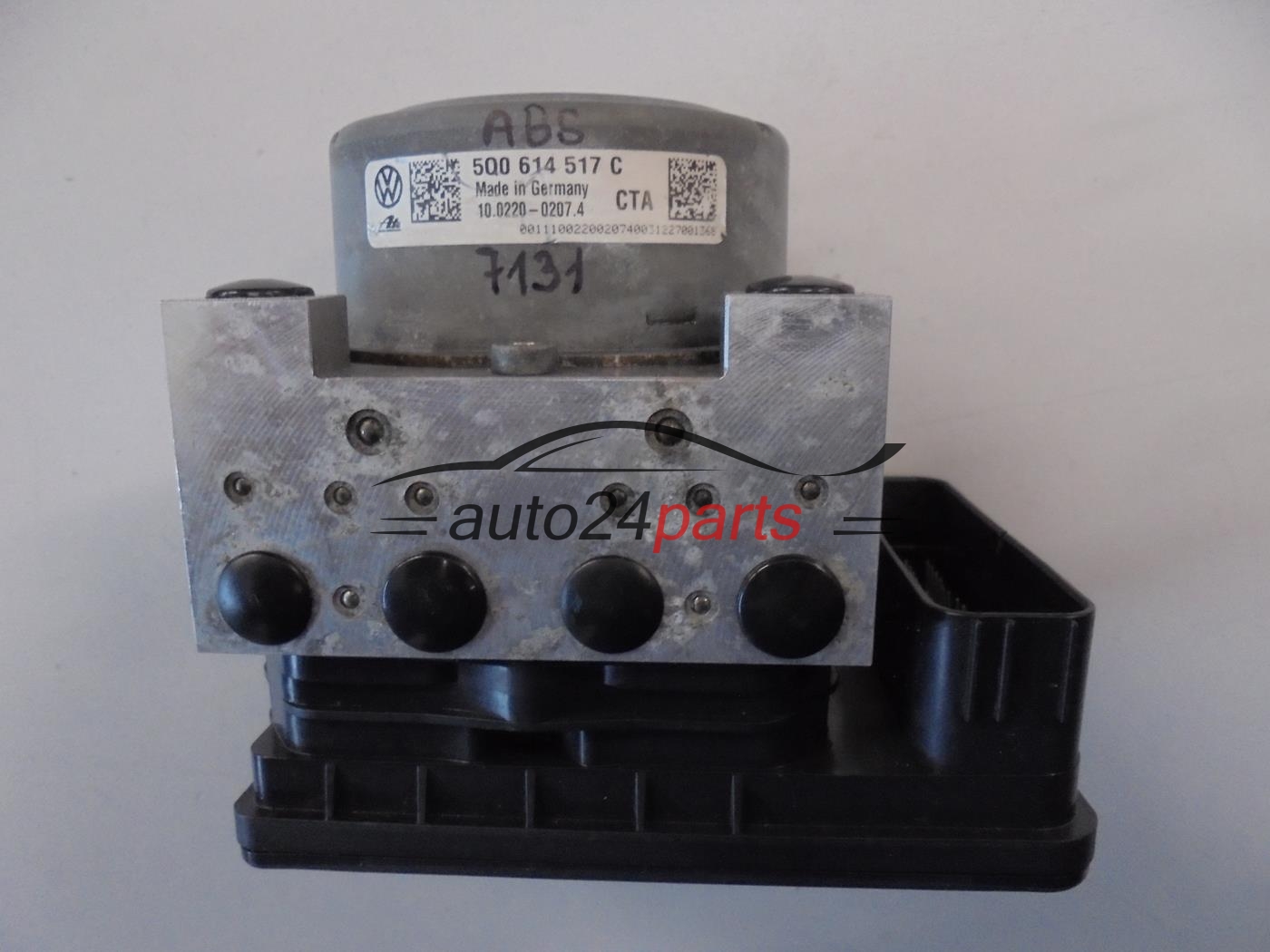

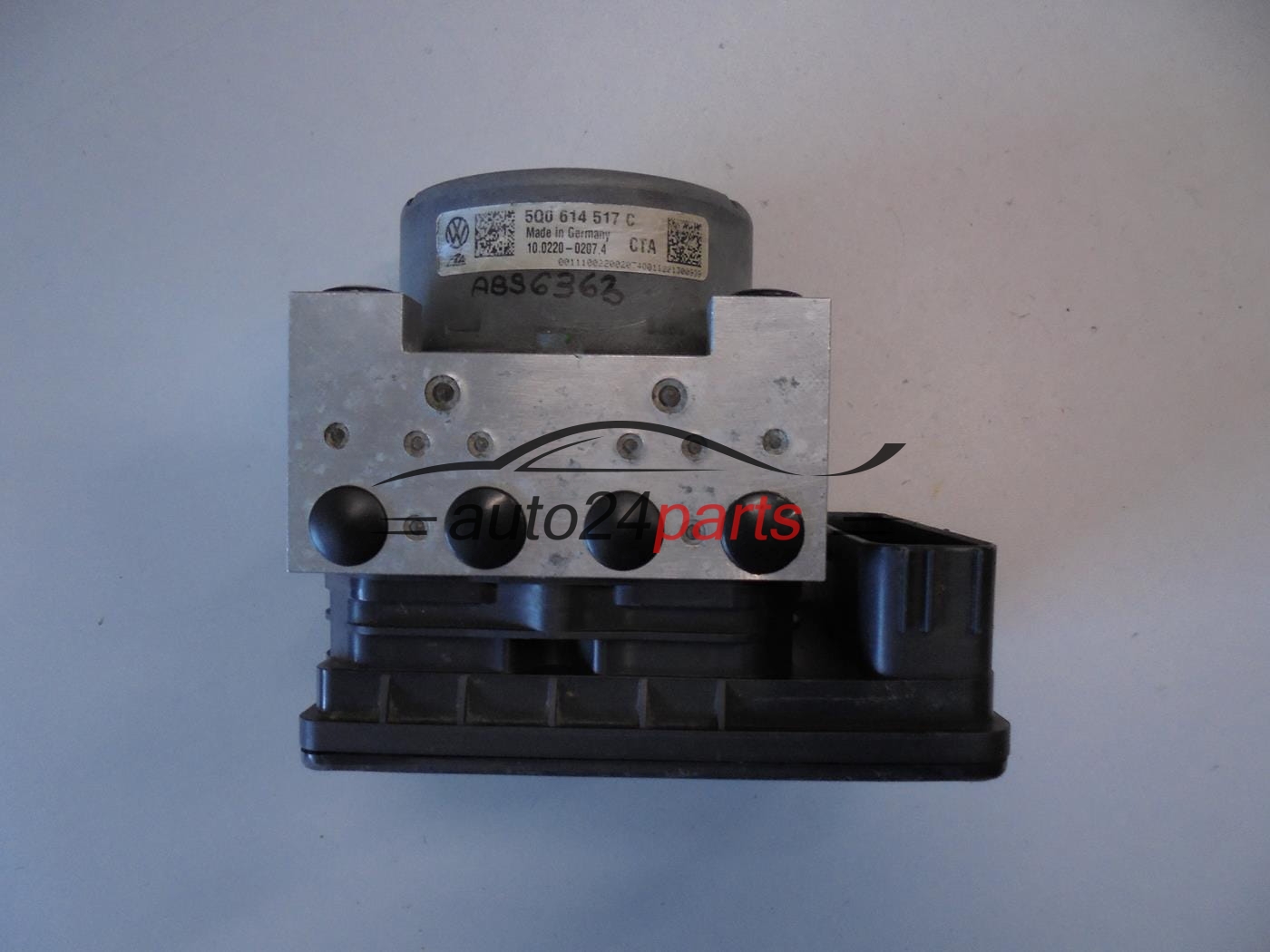

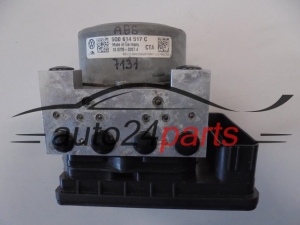

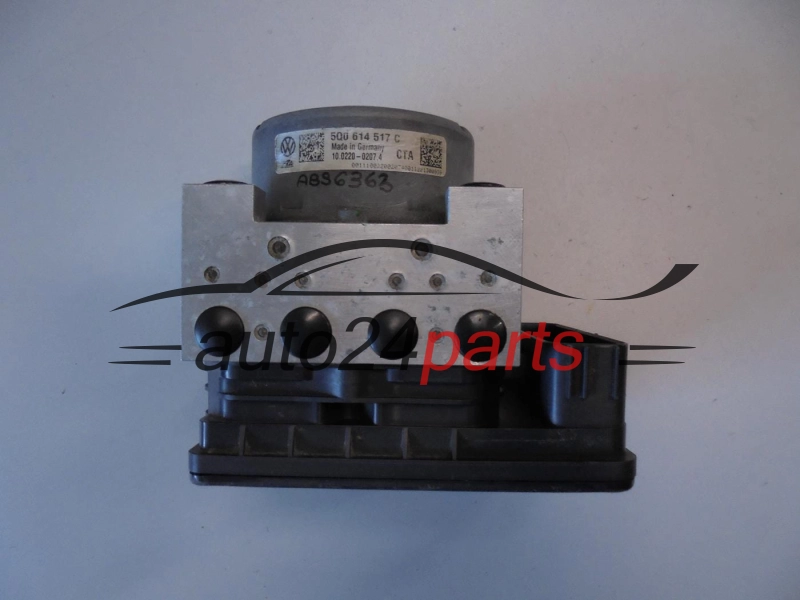

The sticker on the pump motor should show 5Q0 614 517 C and ATE number 10.0220-0207.4, and the control module should read 5Q0 907 379 D. This is a genuine, used and working ATE assembly for Audi and Volkswagen cars; it fits when these markings match yours.
ATE ABS block 5Q0614517C with control module 5Q0907379D
Each number on this unit tells you something different. 5Q0614517C is the VAG reference for the whole hydraulic unit, while 10.0220-0207.4 is the number ATE uses for the block with the pump itself. The electronics have their own VAG number, 5Q0 907 379 D, and two manufacturer numbers: 10.0622-3239.1 and 28.5150-5963.3. When matching the part, the VAG number is the starting point, and the ATE numbers let you confirm it.
VAG and ATE markings at a glance
- 5Q0614517C - VAG number of the ABS pump (hydraulic unit), on the sticker on the pump motor: 5Q0 614 517 C
- 10022002074 - ATE number of the hydraulic block (pump), on the sticker on the pump motor: 10.0220-0207.4
- 5Q0907379D - VAG number of the ABS/ESP control module, on the control module label: 5Q0 907 379 D
- 10062232391 - ATE number from the control module label: 10.0622-3239.1
- 28515059633 - ATE number from the control module label: 28.5150-5963.3

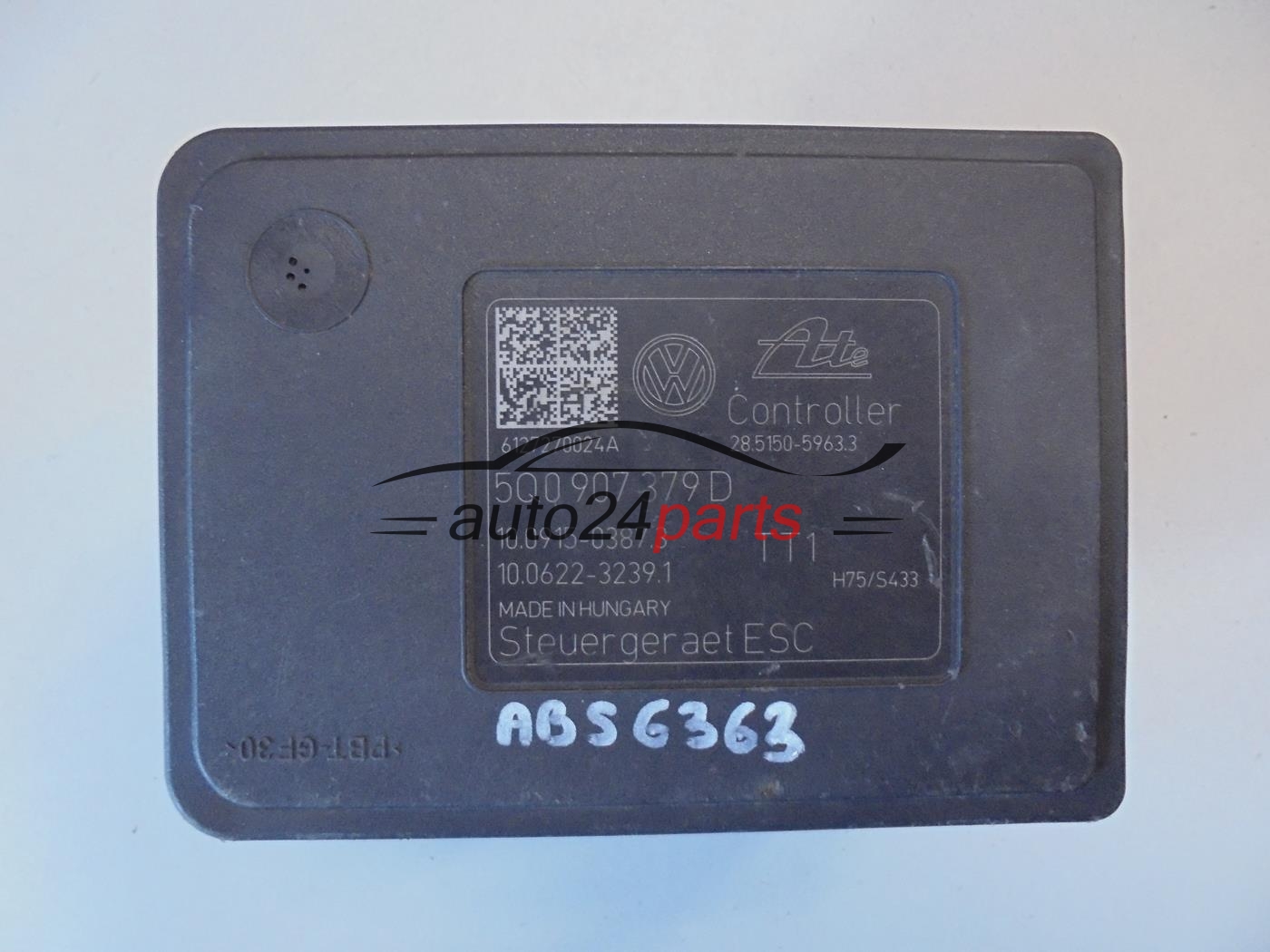

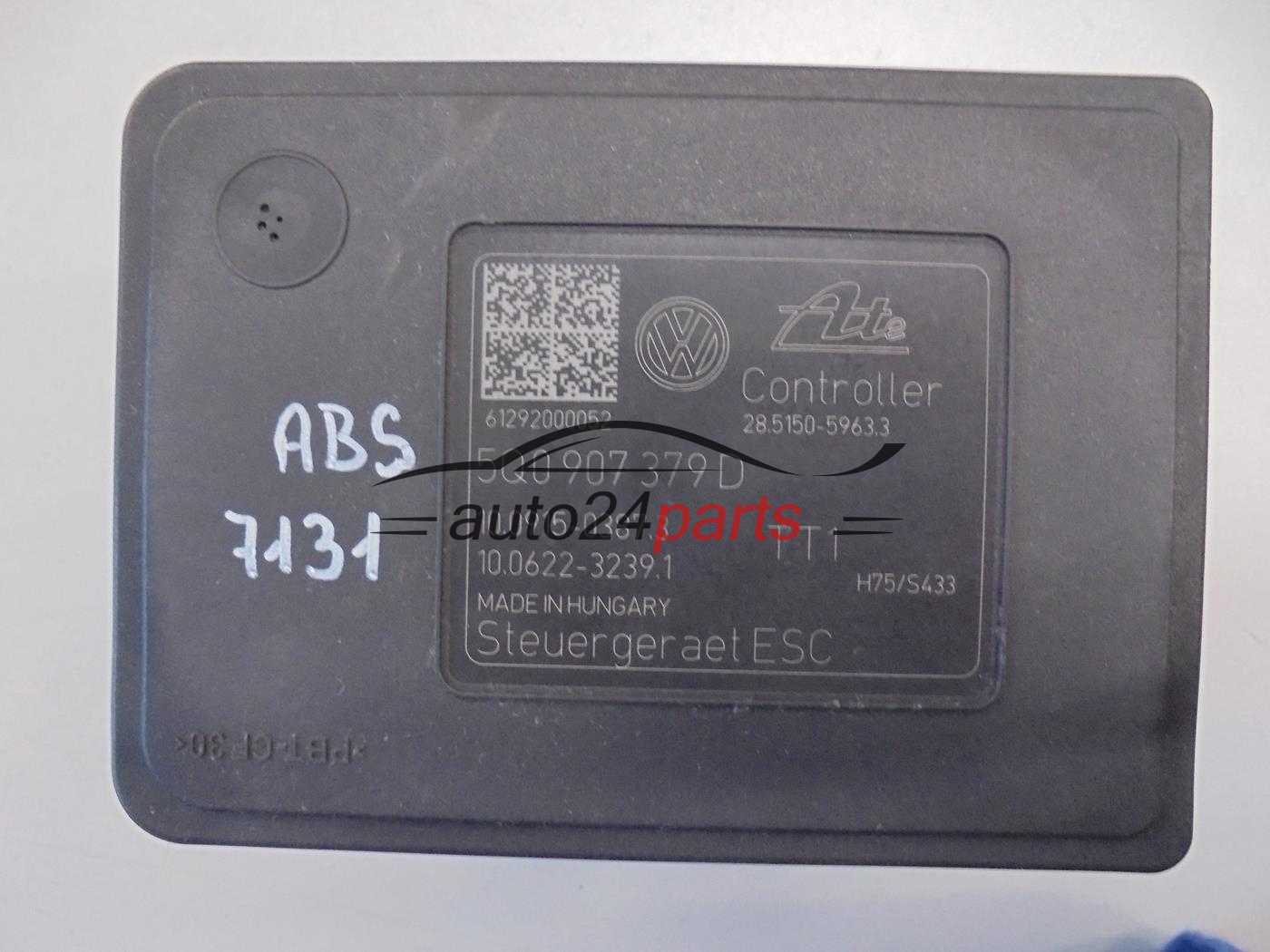

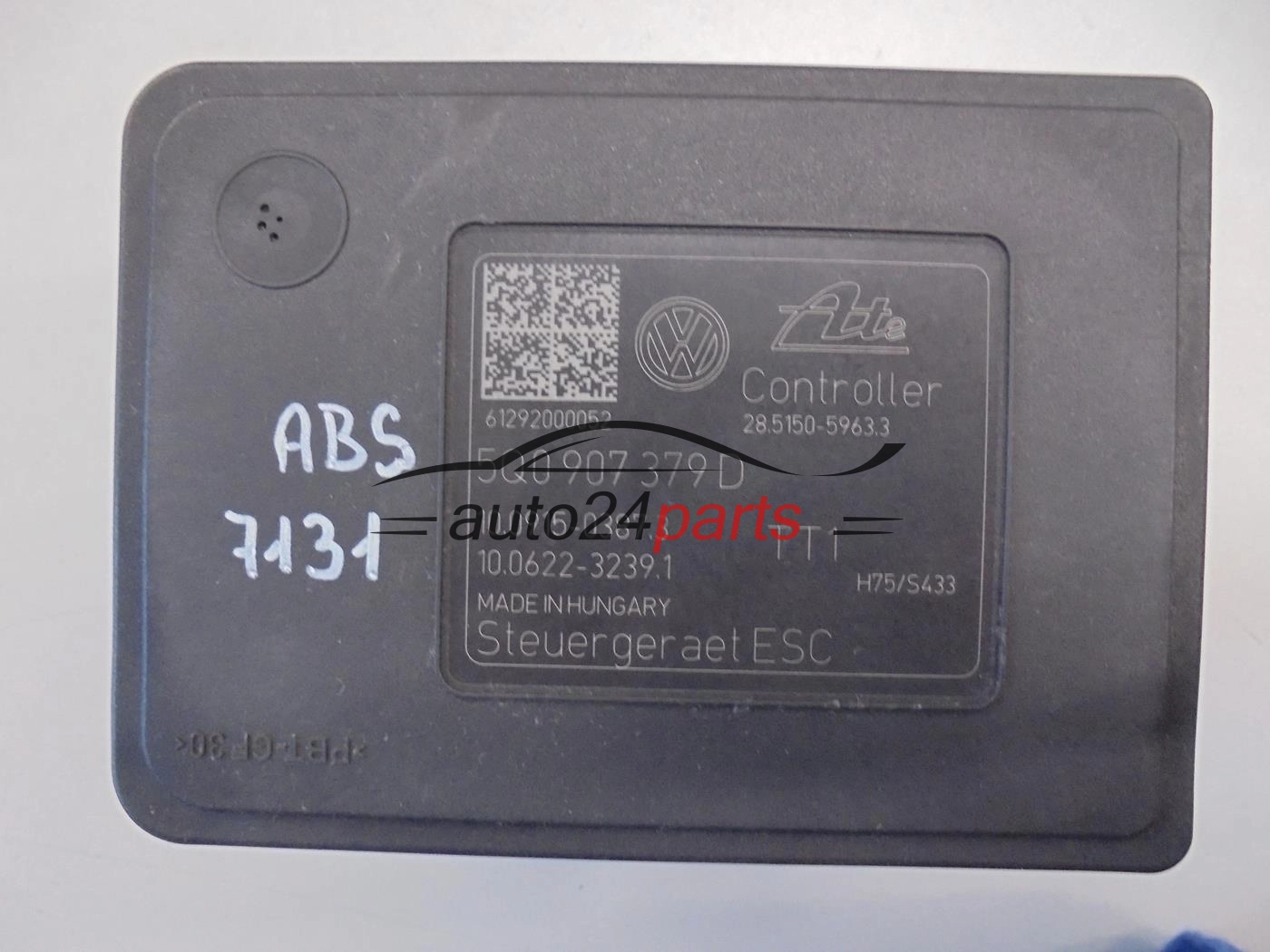

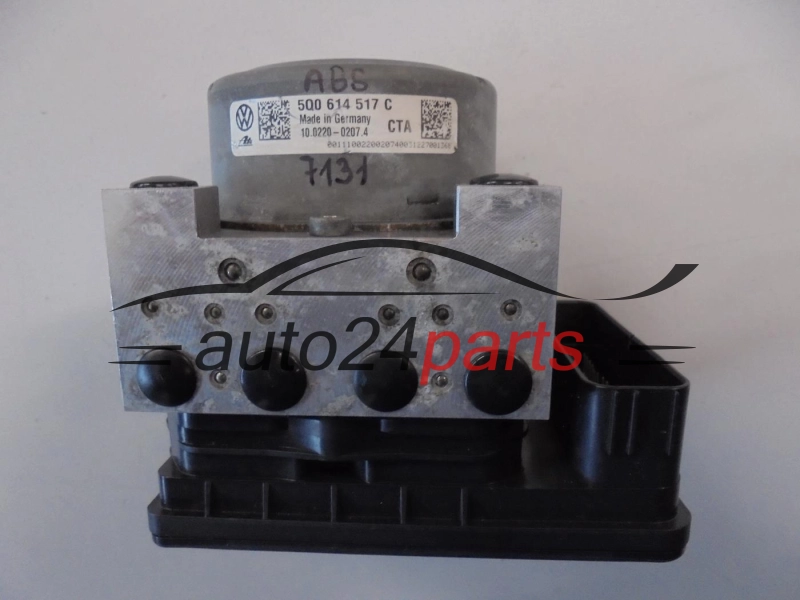

The paper sticker with DataMatrix codes is attached to the pump motor, and the module label - with the words ‘Controller’ and ‘Steuergeraet ESC’ - is on its housing. Copy the full numbers from both places, including the final letter C; the shop also lists other versions of 5Q0 614 517 with a different suffix.
Typical signs of a faulty unit
A problem with the block or the control module is usually indicated by:
- ABS and ESP/ASR switching off at the same time,
- a fault for one of the valves in the control module memory,
- the ABS warning light coming on straight after the engine starts.
Start the diagnosis with a diagnostic tool, then inspect the wheel speed sensors, fuses, wiring and connector, and measure the battery voltage. After fitting the assembly, bleed the system, code the control module if the car requires it and usually calibrate the steering angle sensor and the ESP sensors.
Questions about assembly 5Q0614517C
| Which car make is this pump for? |
|---|
| For Audi and Volkswagen cars. We do not specify the model; the match is decided by the VAG numbers of the pump and the control module being identical. |
| What condition is the part in, and what about the warranty? |
| A genuine ATE part, used and in working order. The warranty period is given in the product features table. |
| Am I buying the pump together with the control module? |
| Yes - the listing covers the hydraulic block with pump 5Q0 614 517 C and module 5Q0 907 379 D mounted on it. |
| What do the ATE numbers mean? |
| 10.0220-0207.4 is the ATE number of the hydraulic block, while 10.0622-3239.1 and 28.5150-5963.3 are ATE numbers from the control module label. They complement the VAG references. |
Send us a photo of the sticker on the pump motor and the module label, or your VIN - we will tell you whether this is the right assembly.
