ABS pump and control module Audi ATE 83A614517 10022019334 83A907379 10062931681
Vendors's code: 10022019334
Product code: 6E00-39004
Barcode:
Code 39:
ISBN:
€487.80
Price
€487.80
€600.00
Price
€600.00
Ask about the product
ABS pump and control module Audi ATE 83A614517 10022019334 83A907379 10062931681
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
How do you match ABS pump 83A614517 to your Audi?
The simplest way is by number: this used, working ATE unit is marked 83A 614 517, and its control module 83A 907 379. If your part carries identical markings, you can consider this unit as a replacement in your Audi.
ATE ABS unit 83A614517 with control module 83A907379 - Audi
Two groups of numbers describe this unit. The VAG numbers - 83A 614 517 for the hydraulic unit and 83A 907 379 for the module - are assigned by the Group, and it is under these that parts are catalogued for Audi. The ATE numbers come from the component manufacturer: 10.0220-1933.4 describes the hydraulic block, and 10.0629-3168.1 is printed on the control module label. When buying, the VAG marking is what decides, while the ATE numbers serve as confirmation.
What the labels on this unit say
- 83A614517 - VAG number of the ABS pump (hydraulic unit), on the label: 83A 614 517
- 10022019334 - ATE number of the hydraulic block (pump), written: 10.0220-1933.4
- 83A907379 - VAG number of the ABS/ESP control module, on the label: 83A 907 379
- 10062931681 - ATE number from the control module label, written: 10.0629-3168.1

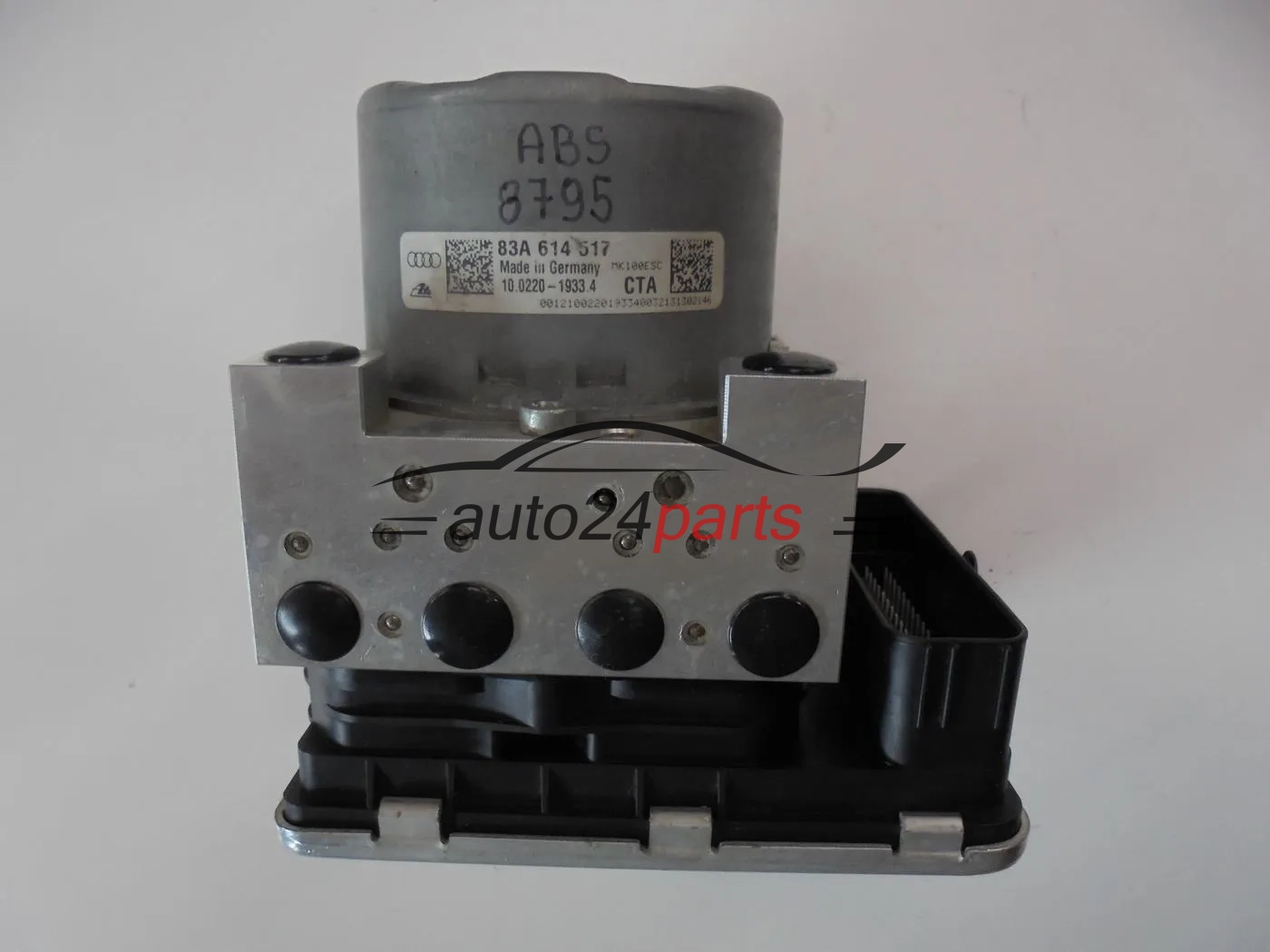

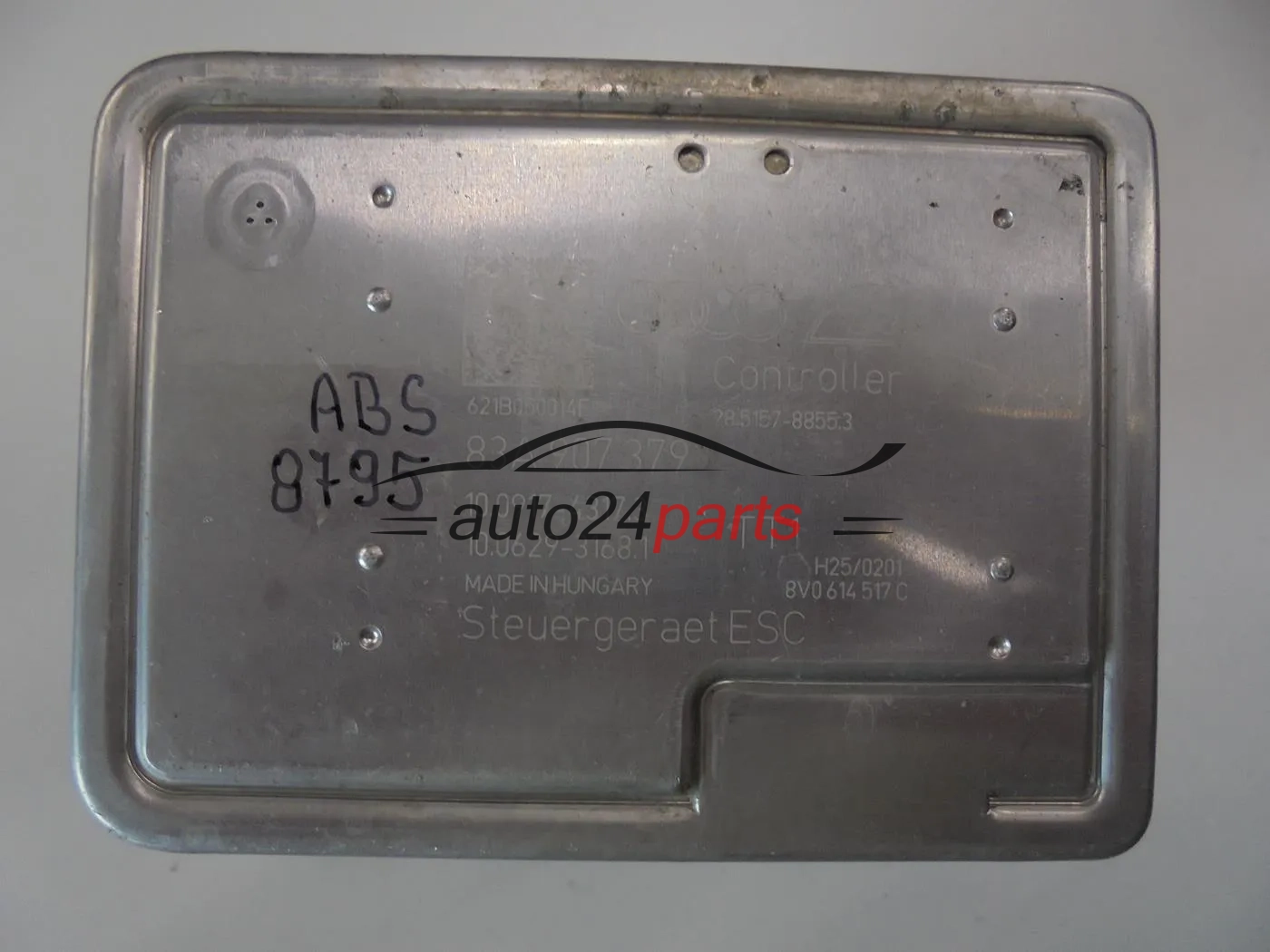

The pump sticker - white, printed, with 2D codes - is attached to the pump motor housing, and there is a second label on the control module housing, bearing the words ‘Controller’ and ‘Steuergeraet ESC’. Note that number 83A 614 517 does not end with a suffix letter; if there is a letter after the digits on your part, it may be a different version that needs checking separately.
Common warning signs of an ABS unit failure
Replacement may be necessary when you see:
- the ABS and ESP lights on simultaneously,
- the ABS function disabled during braking,
- a pump fault stored in the control module.
Before removing the old part, connect a diagnostic tool - the fault message could just as well come from a wheel sensor, a blown fuse, a damaged connector or a weak battery. After fitting, bleed the brakes; the module normally has to be coded, and with ESP a basic setting of the steering angle sensor is usually carried out too.
Questions and answers - pump 83A614517
| Which Audi will take this pump? |
|---|
| One that runs hydraulic unit 83A 614 517 with control module 83A 907 379. We base the match on the numbers, not on the model name. |
| Is the part brand new? |
| No - it is a genuine, used and working component. The warranty period is given in the product features table. |
| Which number should I check first? |
| VAG hydraulic unit number 83A 614 517; ATE number 10.0220-1933.4 will help if the VAG sticker is worn. |
| Does the control module need coding after replacement? |
| Usually, yes: on VW Group cars the module is coded with a diagnostic tool after fitting. If the car has ESP, sensor calibration is normally added. |
Any doubts? Photograph the sticker on your pump motor or give us your VIN - we will reply and tell you whether the markings match.
