ABS pump and control module Audi ATE 8S0614517P 10022018134 8S0907379P 28515423423
Vendors's code: 10022018134
Product code: ADA6-90135
Barcode:
Code 39:
ISBN:
€487.80
Price
€487.80
€600.00
Price
€600.00
Ask about the product
ABS pump and control module Audi ATE 8S0614517P 10022018134 8S0907379P 28515423423
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
How can you check that ABS pump 8S0614517P is the right part?
Find the white sticker on your pump motor and compare the number - this used, working ATE unit for Audi reads 8S0 614 517 P, and its control module 8S0 907 379 P.
ATE ABS pump 8S0614517P with MK100ESC module 8S0907379P
Picture braking on a wet road: one wheel slows down faster than the others. This unit's control module detects it through the wheel speed sensors and reacts instantly - the valves in the block of pump 8S0 614 517 P limit the pressure in that wheel's circuit. Once the wheel is rolling again, the pump motor rebuilds the pressure and braking continues, while the driver keeps directional control.
Where to find which numbers

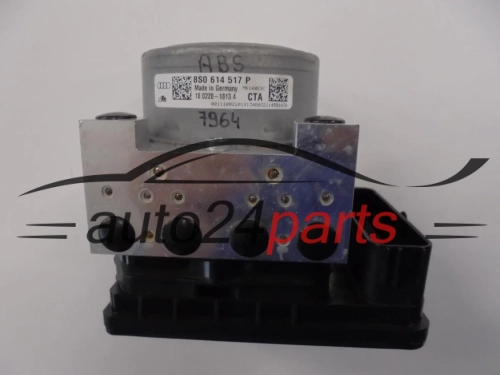

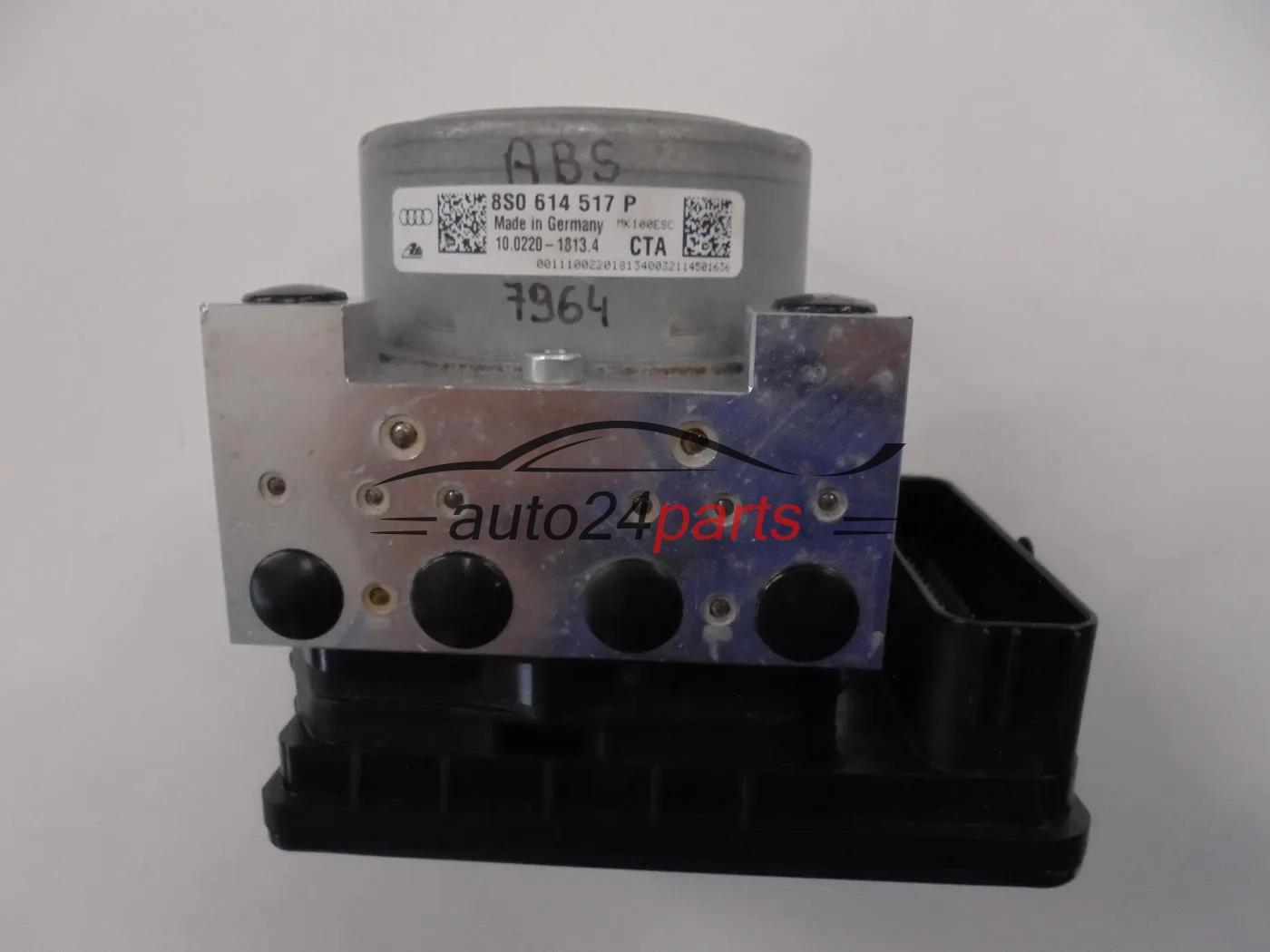

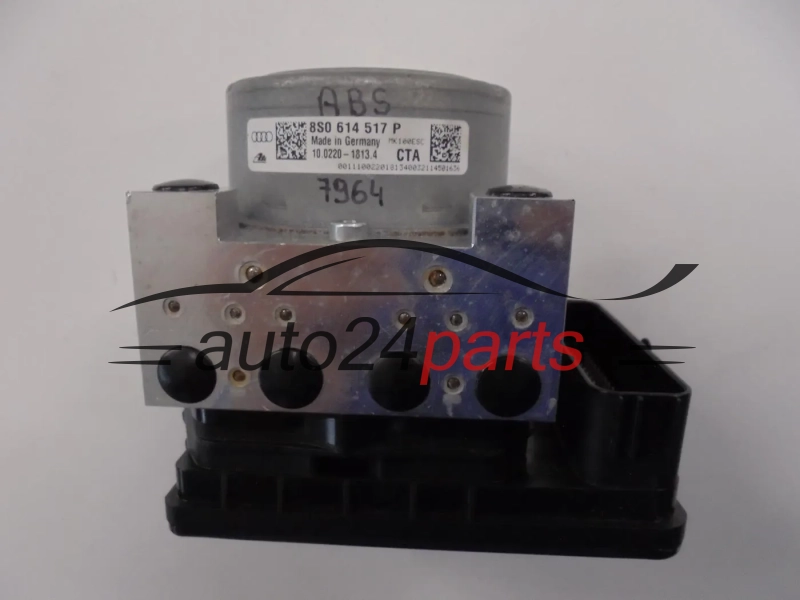

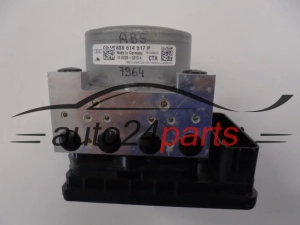

- 8S0614517P - VAG number of the ABS pump (hydraulic unit); sticker on the pump motor: 8S0 614 517 P
- 10022018134 - ATE number of the hydraulic block; sticker on the pump motor: 10.0220-1813.4

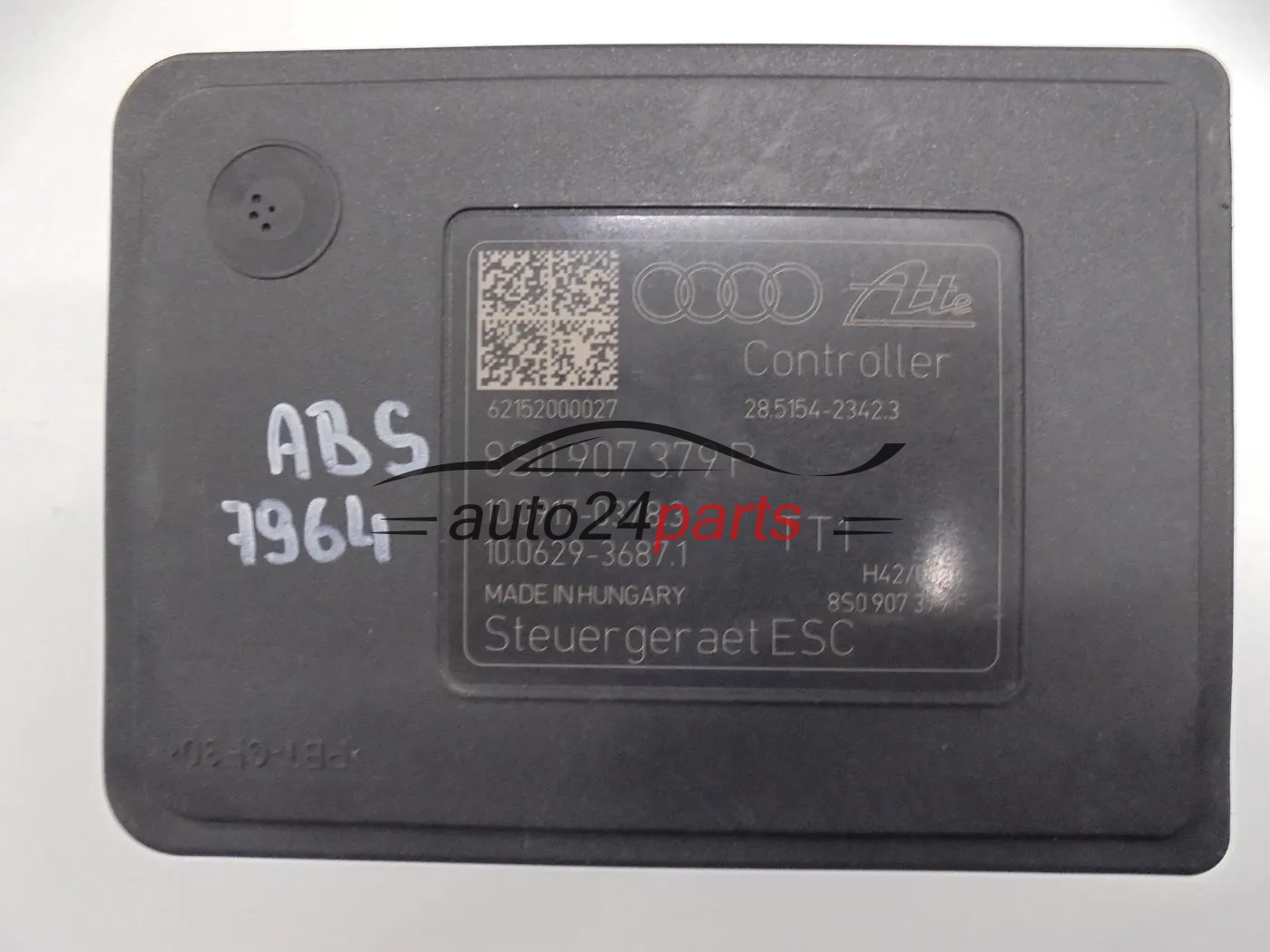

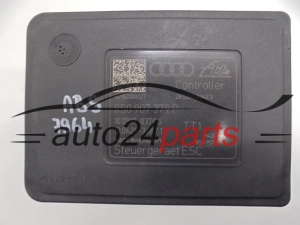

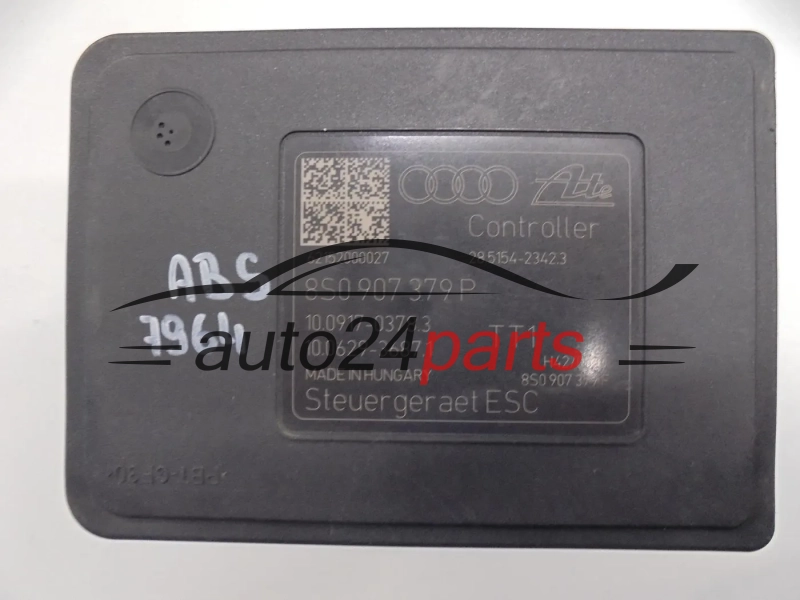

- 8S0907379P - VAG number of the ABS/ESP control module; control module label: 8S0 907 379 P
- 28515423423 - ATE number from the control module label: 28.5154-2342.3
- 10062936871 - another ATE number from the control module label: 10.0629-3687.1
The pump numbers are printed on a white paper sticker with two DataMatrix codes, attached to the pump motor. The control module has its own label reading ‘Controller’, ‘MK100ESC’ and ‘Steuergeraet ESC’. The letter P at the end distinguishes this item from the 3 other versions of 8S0 614 517 available in our shop.
Symptoms that may point to this unit
A fault in the ABS unit is usually signalled by:
- ABS and ESP/ASR functions switched off,
- a valve fault in the module memory,
- an ABS light coming on just after the car is started.
Not every warning light means a pump failure, so start with a scan tool and a check of the wheel sensors, wiring, fuses and battery condition. After replacement, the unit requires the brake system to be bled; on many VW Group cars control module coding is added, and with ESP often steering angle sensor calibration as well.
Questions before buying 8S0614517P
| Which make is the unit suitable for? |
|---|
| Audi. Compatibility is decided by numbers 8S0 614 517 P and 8S0 907 379 P, not by the car model alone. |
| What condition is the pump in, and is there a warranty? |
| It is a genuine, used and working ATE unit. The warranty period is given in the product features table. |
| Can I choose a version with a letter other than P? |
| Such a swap is risky - a different ending may mean a different version of the system. It is better to choose a number identical to yours. |
| How can I confirm the fit before ordering? |
| Send a photo of the sticker on the pump motor and the control module label, or your VIN. We will check whether this item matches yours. |
We will help you choose - just send us a photo of both stickers or your car's VIN.
