A faulty transmission control module (TCM) most often causes limp mode with the gearbox stuck in one gear, harsh jolts when you select D or R, erratic gear changes, flashing PRND letters and a gearbox or engine warning light. However, the same symptoms are often caused by a low gearbox oil level, a weak battery, a poor earth or a faulty sensor. To test a transmission control module, start by checking the battery and reading the fault codes with a diagnostic tool that can talk to the gearbox control unit, then check the power supply, the connector, the oil and the live data. Below we explain the symptoms, the diagnostic steps and what the most common fault codes mean.
ABS pump Range Rover ATE KJ322C405AB 10091532633
Vendors's code: 10091532633
Product code: KJ322C405AB
Barcode:
Code 39:
ISBN:
€203.25
Price
€203.25
€250.00
Price
€250.00
Ask about the product
ABS pump Range Rover ATE KJ322C405AB 10091532633
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
When is ABS pump KJ322C405AB the right choice for your Range Rover?
Used original ABS module with number KJ322C405AB for Range Rover. Confirm compatibility with the number from your original pump.

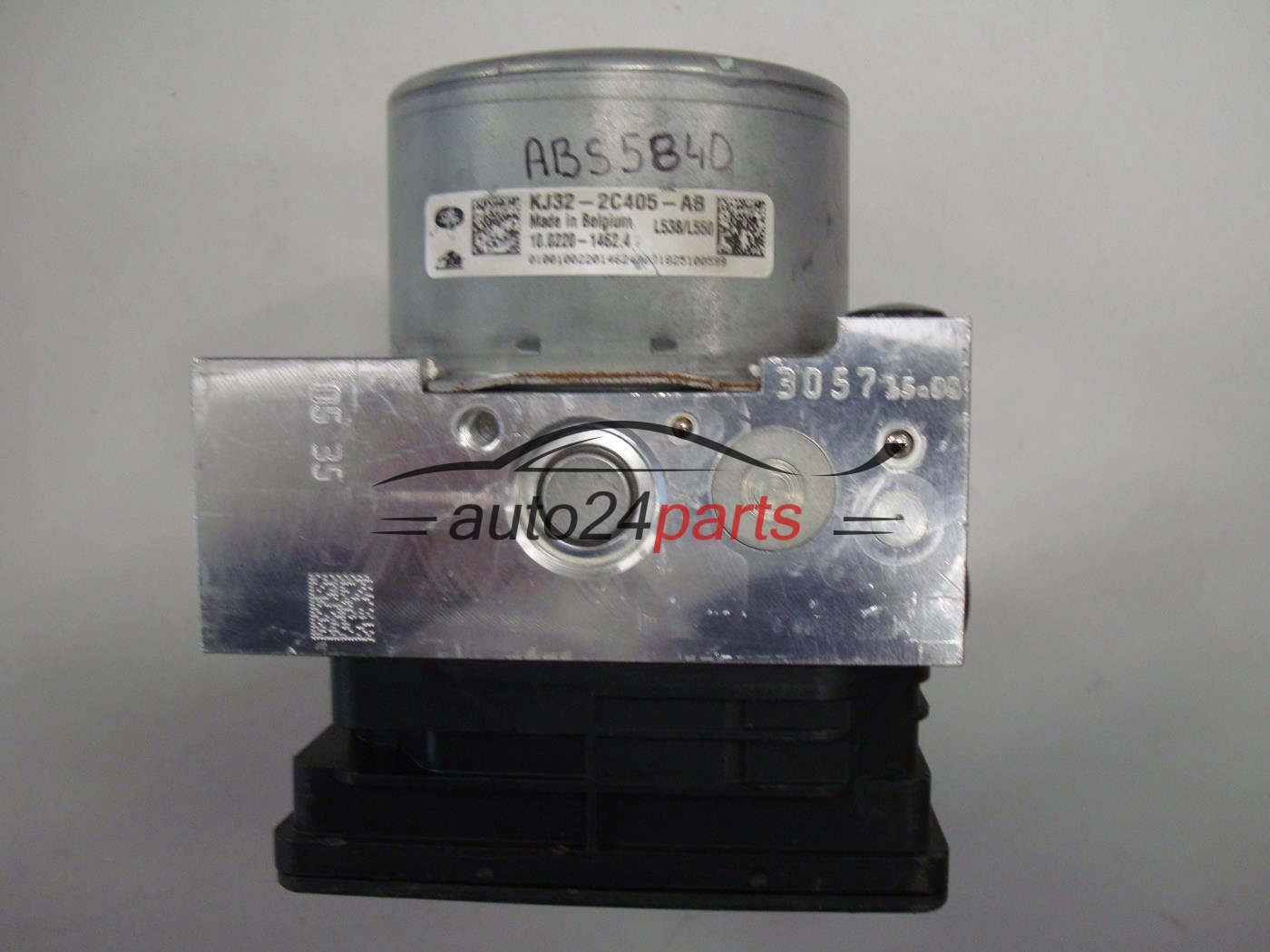

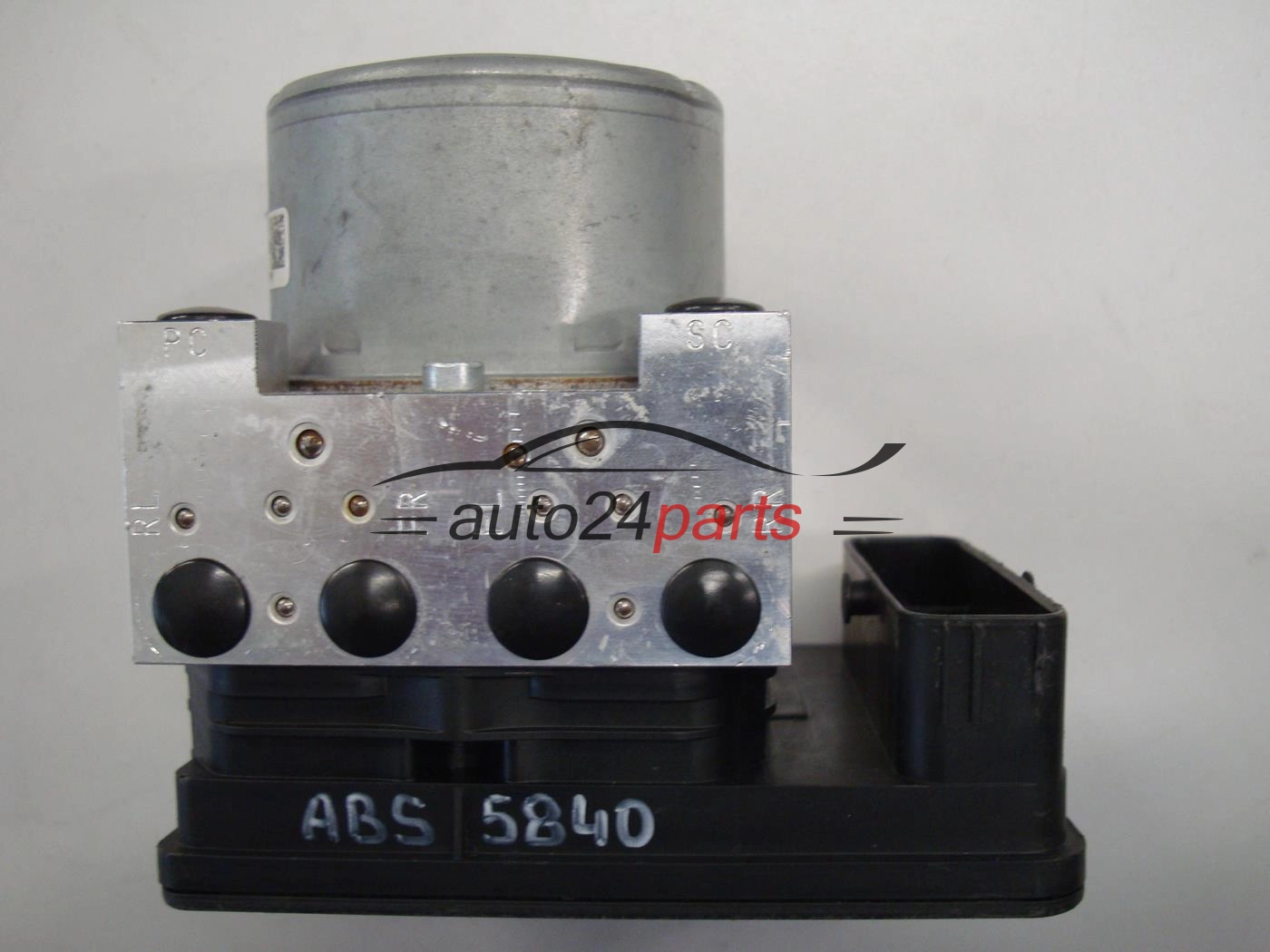

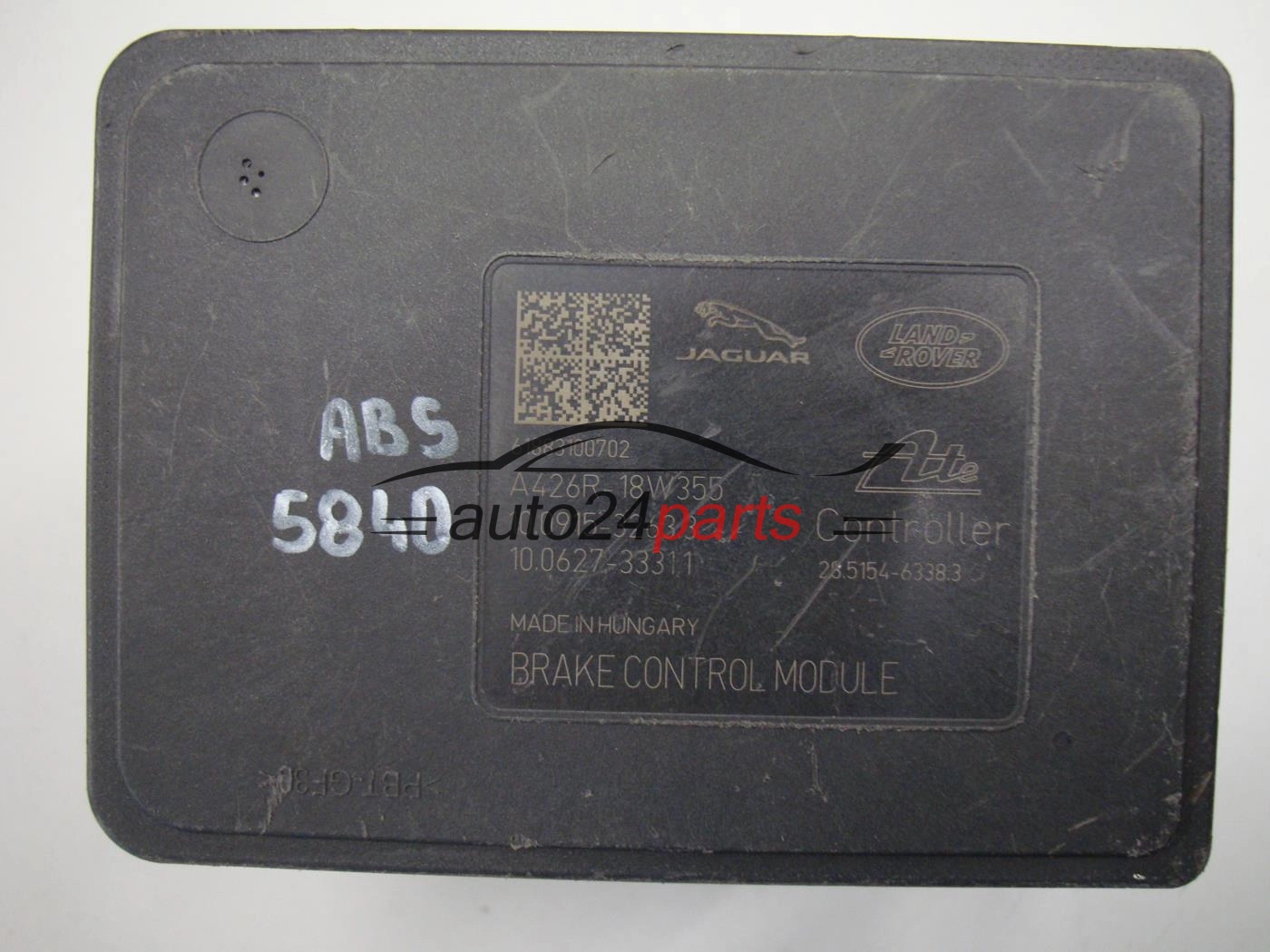

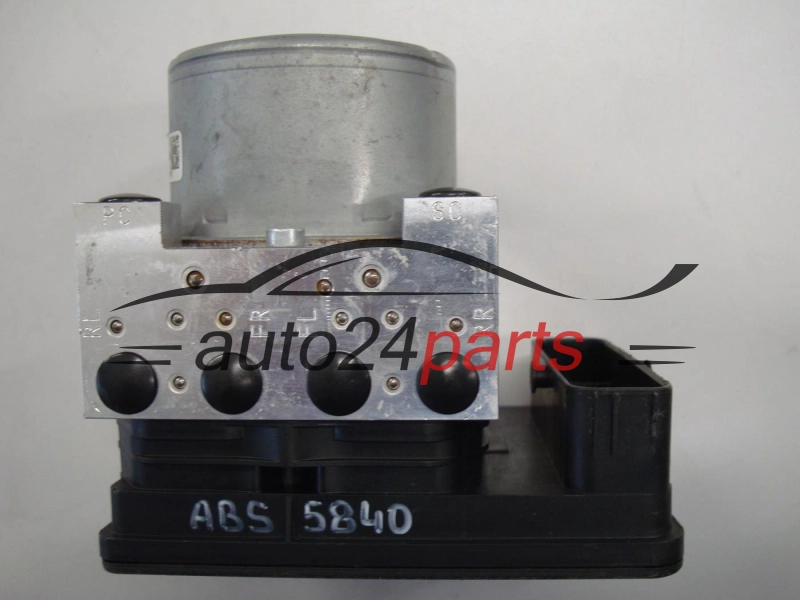

Range Rover ABS pump KJ322C405AB: hydraulic module with control unit
If the ABS warning light is on in your Range Rover, one possible cause is the hydraulic module or its control unit. ABS pump KJ322C405AB is a used original part, inspected before sale. The listing does not state the car model or year, so we do not give them here and match the part by its numbers.
Where to find the numbers on an ABS pump
The numbers as written on the labels and as a single string, the way catalogues list them:
- KJ322C405AB, original Range Rover number,
- 10.0915-3263.3 (catalogue format: 10091532633), control unit number.
Matching by number is more reliable than matching by car model. Compare all the numbers and ask us if any of them does not match.
What can point to an ABS pump failure
- the ABS warning light comes on after the engine is started and stays on,
- brake fluid leaks from the hydraulic block, which requires immediate action,
- the ABS switches itself off shortly after the engine is started,
- on a slippery surface the wheels lock up noticeably sooner than they used to.
Before buying a module, read the fault codes with a diagnostic tester. A faulty wheel speed sensor or its wiring can cause the same symptoms, and in that case replacing the pump will not help. After replacement the fault codes usually need to be cleared, and if the brake lines have been disconnected, the system must be bled.
Questions and answers
| Are the pump and the control unit sold separately? |
|---|
| In this listing they are a single module: a hydraulic block with the pump and valves, with the control unit attached to it. |
| Does a lit ABS warning light always mean a faulty pump? |
| No. Read the fault codes first, because the cause may be a wheel sensor, its wiring or too low a supply voltage. |
| Who makes this module? |
| The module is made by ATE. The manufacturer's name does not change the numbers you should use to match the part. |
| Is this a new part? |
| No. We sell used original modules, each one inspected before sale. You will find the warranty period in the product features table. |
Not sure about the match? Send us a photo of the numbers on your ABS pump and we will check whether this module will fit.
