A faulty transmission control module (TCM) most often causes limp mode with the gearbox stuck in one gear, harsh jolts when you select D or R, erratic gear changes, flashing PRND letters and a gearbox or engine warning light. However, the same symptoms are often caused by a low gearbox oil level, a weak battery, a poor earth or a faulty sensor. To test a transmission control module, start by checking the battery and reading the fault codes with a diagnostic tool that can talk to the gearbox control unit, then check the power supply, the connector, the oil and the live data. Below we explain the symptoms, the diagnostic steps and what the most common fault codes mean.
ABS pump Volkswagen Audi ATE 1K0614517BC 1K0907379AM 10096103263
Vendors's code: 1K0907379AM
Product code: AB45-69117
Barcode:
Code 39:
ISBN:
€487.80
Price
€487.80
€600.00
Price
€600.00
Ask about the product
ABS pump Volkswagen Audi ATE 1K0614517BC 1K0907379AM 10096103263
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
What does number 1K0614517BC on an ABS pump mean?
Used ABS pump with control unit, number 1K0614517BC, inspected before sale. Matched by the numbers on the block and sticker.
Volkswagen Audi ABS pump: numbers 1K0614517BC and 1K0907379AM

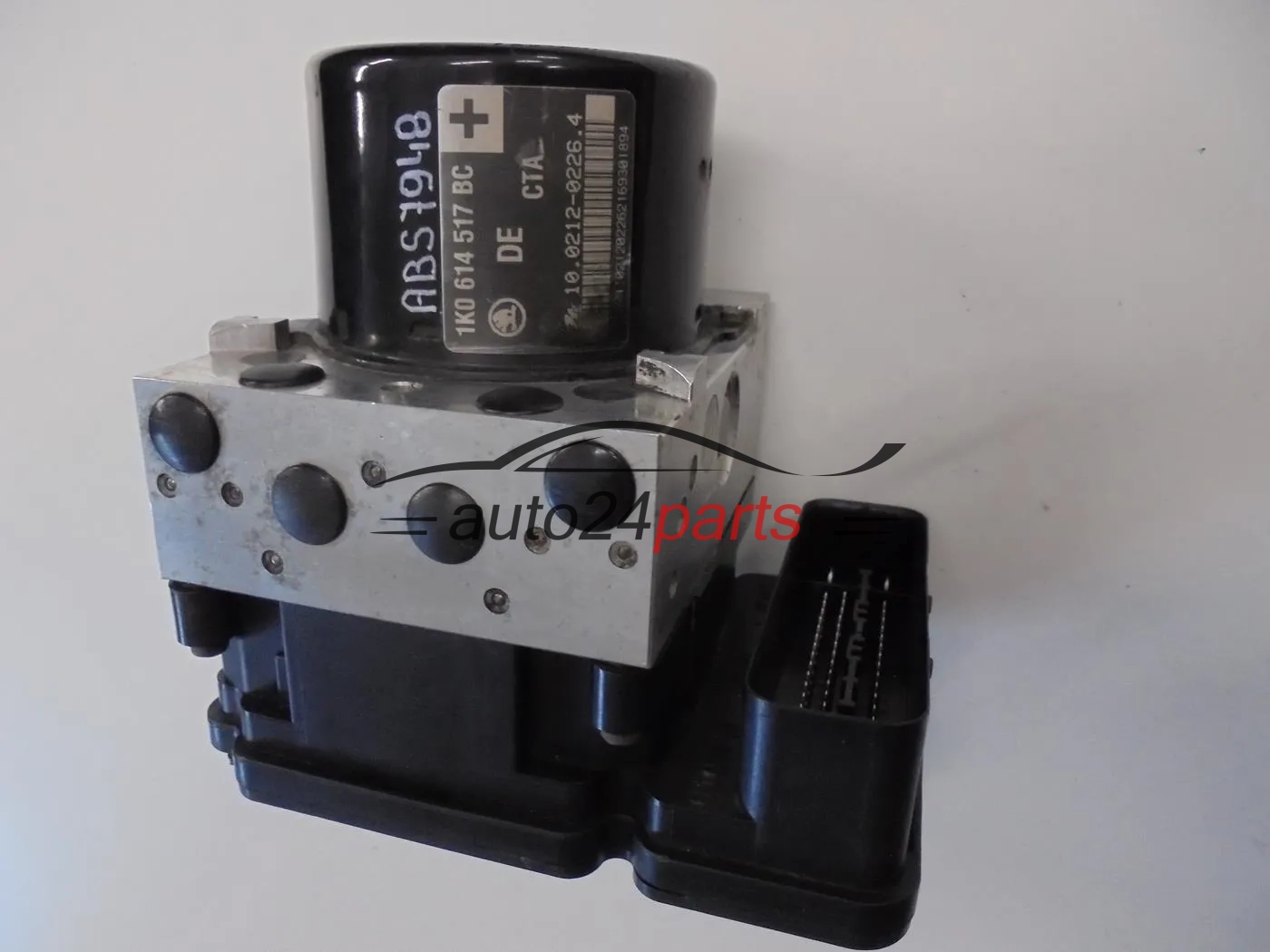

This is a used original ABS pump with a control unit for Volkswagen Audi cars: an aluminium hydraulic block with valves and a pump motor, with the electronics bolted to it. The main number is 1K0614517BC, and the other numbers from the labels are listed below. According to the listing, the pump comes from the Volkswagen Audi model.
Part number 1K0614517BC and related numbers
The numbers from the listing, as written on the labels and as a single string:
- 1K0614517BC, original Volkswagen number,

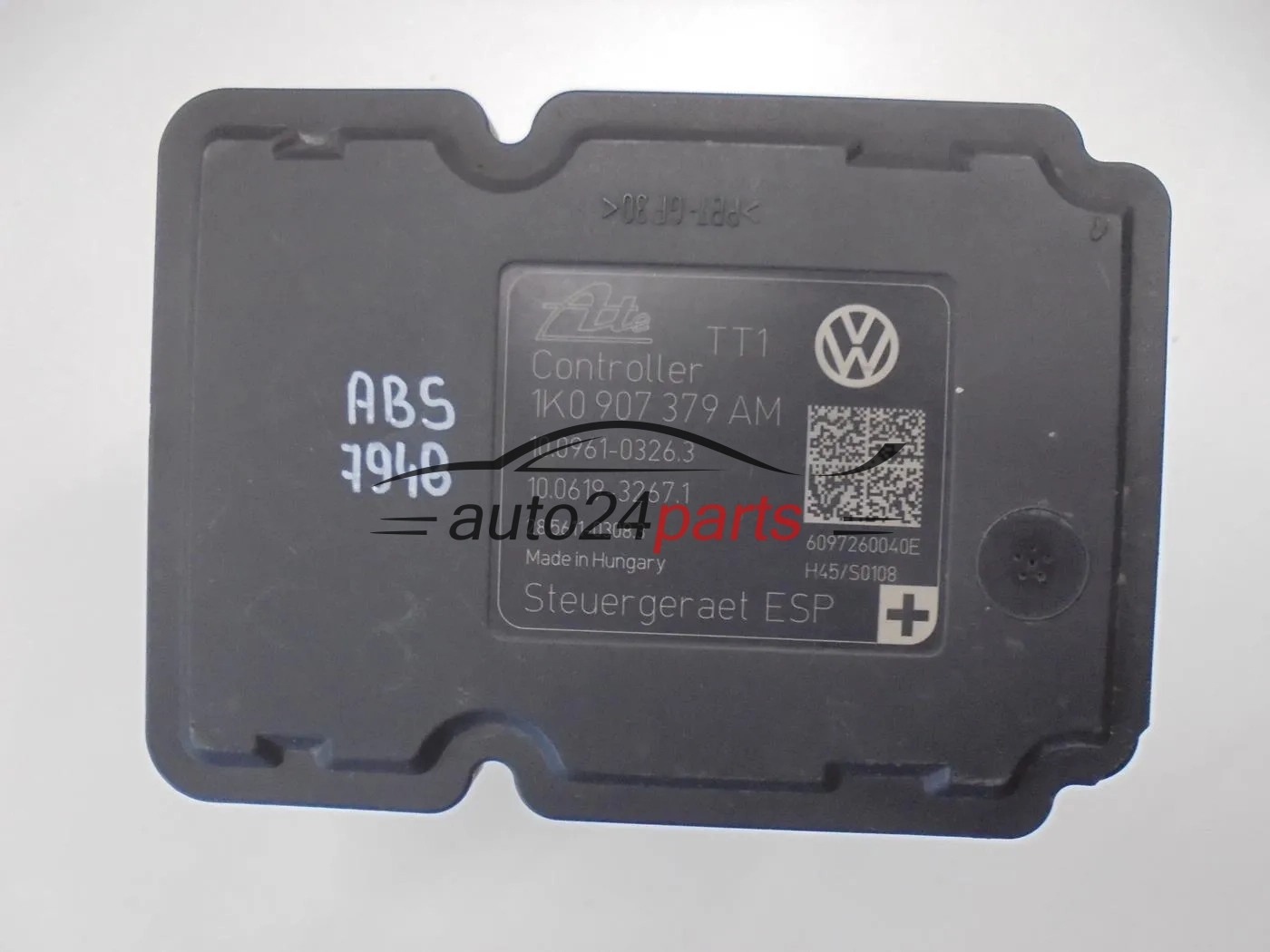

- 1K0907379AM, Volkswagen control unit number,
- 10.0961-0326.3 (catalogue format: 10096103263), control unit number.
Matching by number is more reliable than matching by car model. Compare all the numbers and ask us if any of them does not match.
Symptoms of a faulty ABS pump or control unit
- the brake pedal pulses or feels uneven for no obvious reason,
- the pump motor switches on at unusual moments or runs louder than usual,
- brake fluid leaks from the hydraulic block, which requires immediate action,
- the ABS warning light comes on together with the stability control warning light.
Before buying a module, read the fault codes with a diagnostic tester. A faulty wheel speed sensor or its wiring can cause the same symptoms, and in that case replacing the pump will not help. After replacement the fault codes usually need to be cleared, and if the brake lines have been disconnected, the system must be bled.
Questions and answers
| What is the difference between numbers 1K0614517BC and 1K0907379AM? |
|---|
| The module carries several numbers, because it is identified both by the car brand and by the manufacturer of the block and control unit. When matching the part, compare all the numbers. |
| Can I send a photo for a compatibility check? |
| Yes. Contact us and send a photo of the numbers on your original pump, and we will help you check whether this module will fit. |
| Who makes this module? |
| The module is made by ATE. The manufacturer's name does not change the numbers you should use to match the part. |
| Is this a new part? |
| No. We sell used original modules, each one inspected before sale. You will find the warranty period in the product features table. |
Want to check before you buy? Send a photo of the block and sticker on your ABS pump and we will check that the numbers match.
