Engine control unit Suzuki Mitsubishi 33920-60A70 E2T40671
Vendors's code: 33920-60A70
Product code: E2T40671
Barcode:
Code 39:
ISBN:
€569.11
Price
€569.11
€700.00
Price
€700.00
Shortage
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Engine control unit Suzuki Mitsubishi 33920-60A70 E2T40671
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Looking for the 33920-60A70 ECU for your Suzuki?
A working, used Mitsubishi ECU with numbers 33920-60A70 and E2T40671. Compare them with the label of your own unit; we agree the unlocking method before purchase.

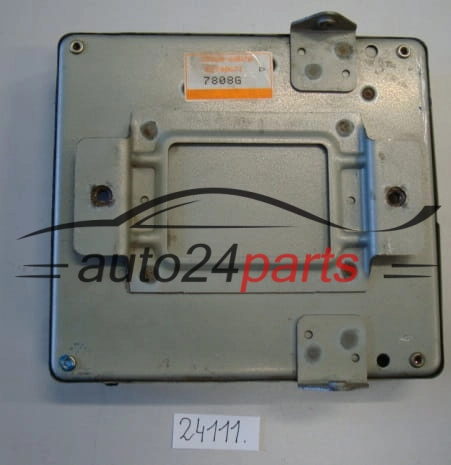

Engine control unit Suzuki Mitsubishi 33920-60A70 E2T40671
The Mitsubishi module 33920-60A70 controls the engine – it reads sensor data and uses it to regulate the fuel system. It is a part for Suzuki vehicles. We do not state a model or engine that the label does not confirm; the part numbers decide the fit. The label shows the following markings: 33920-60A70, E2T40671, 7808G.

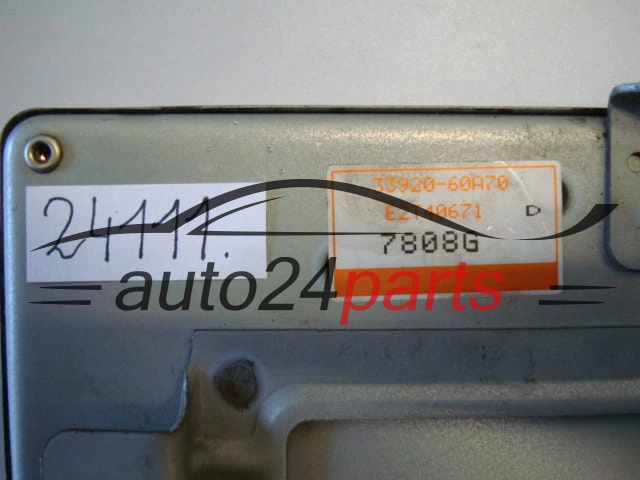

ECU markings
- 33920-60A70 – Suzuki part number
- E2T40671 – Mitsubishi number
- 7808G – additional marking
Every character must match, including the final letters. If you are not sure, send us a photo of the label.
Symptoms of a faulty engine ECU
- the engine will not start despite a good power and fuel supply,
- no communication with the ECU during diagnostics,
- limp mode with no sensor fault,
- damage after water ingress or a voltage spike.
Before buying, check the ECU earths and wiring, as a damaged loom produces similar symptoms.
Locked or unlocked version?
A locked ECU holds the data and immobiliser of the previous car – it is chosen by garages that will program it themselves. The unlocked version is prepared by us before dispatch.
The available unlocking methods depend on the ECU number and the immobiliser system, so before buying ask what we can prepare for the 33920-60A70 unit.
All variants are described on our Locked & Unlocked ECUs page.
Questions and answers
| Is E2T40671 the same ECU as 33920-60A70? |
|---|
| Yes. Both numbers appear on the label of the same ECU. |
| What details should I send before ordering? |
| All the numbers from the label of your current ECU, or a clear photo of it. Based on that, we will check the fit and the possible variants. |
| What condition is the ECU in? |
| It is a used part, fully working and in good condition. The warranty period is shown in the product features table. |
Any questions? Send a photo of your ECU label to contact@auto24parts.com – we will tell you whether this unit will fit.
