Engine Control Unit Volkswagen, Seat Bosch 06A906032QJ 0261208686
Vendors's code: 0261208686
Product code: 0261208686
Barcode:
Code 39:
ISBN:
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Does the 06A906032QJ ECU fit your Volkswagen or Seat?
It fits when the label on your current unit shows the same VW number, 06A906032QJ, and Bosch number 0261208686. The vehicle model alone is not enough – the numbers decide the match.
Engine Control Unit Volkswagen, Seat Bosch 06A906032QJ 0261208686
The 06A906032QJ engine control unit is a Bosch module used in Volkswagen and Seat cars with petrol engines. Its Bosch number, 0 261 208 686, belongs to the series the manufacturer uses for petrol engine ECUs. The unit reads sensor signals and uses them to control fuel injection and ignition. This unit is used, in working order and in good condition.
Numbers to compare
- 06A906032QJ – VW part number
- 0261208686 – Bosch number, shown on the label as 0 261 208 686
The QJ suffix in the VW number denotes a specific software or hardware version. A unit with the same start to its number but a different suffix may have different data – compare the full number.
Symptoms of a faulty engine control unit
- the engine won't start even though the starter turns and fuel is getting through,
- no communication with the diagnostic tester,
- the engine warning light is on and injection or ignition faults keep returning despite working components,
- rough running or stalling at idle.
First check the ECU's fuses, power supply and earths – faults there produce similar symptoms.
Locked or unlocked version?
There are two versions to choose from. The locked one reaches you with the data and immobiliser of the previous vehicle – an option for workshops that unlock, program and match the unit themselves. The unlocked one is prepared before dispatch, which usually takes 1–2 working days.
The preparation method (PIN / CAR PASS, Virgin, IMMO OFF, auto programming or cloning) depends on the part number, software and immobiliser – not every method is available for the 06A906032QJ ECU, so please ask us before buying. Description of the options: ECU preparation options.
Questions and answers
| Does this unit fit both Seat and Volkswagen? |
|---|
| The number 06A906032QJ was used in vehicles of both brands. Whether it fits your car depends on the VW number and Bosch number matching the label on your current ECU. |
| Will the 06A906032QJ start the engine straight after fitting? |
| Not in the locked version – it needs to be programmed and matched to the immobiliser. With the unlocked version, it depends on the preparation method, which we agree before dispatch. |

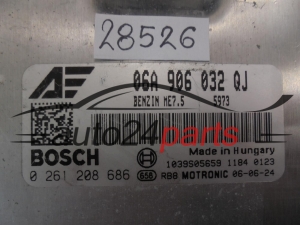

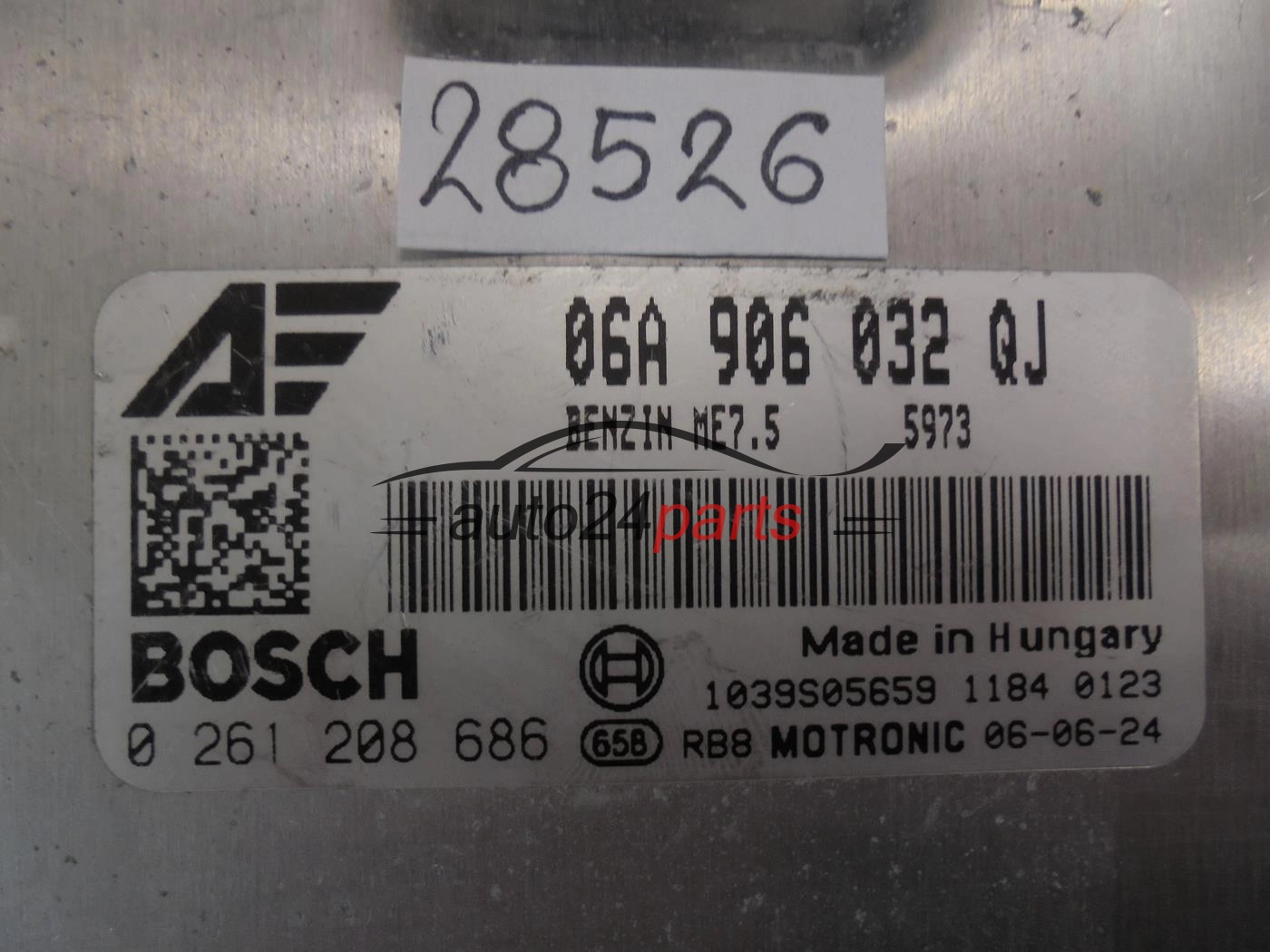

| Where can I find the number 0261208686? |
| On the Bosch label on the ECU casing. It is usually written with spaces: 0 261 208 686. |
| What condition is this ECU in? |
| It is a used part, in working order and in good condition. You will find the warranty period in the product features table. |
Questions about matching? Email contact@auto24parts.com and attach a photo of your ECU's label.
