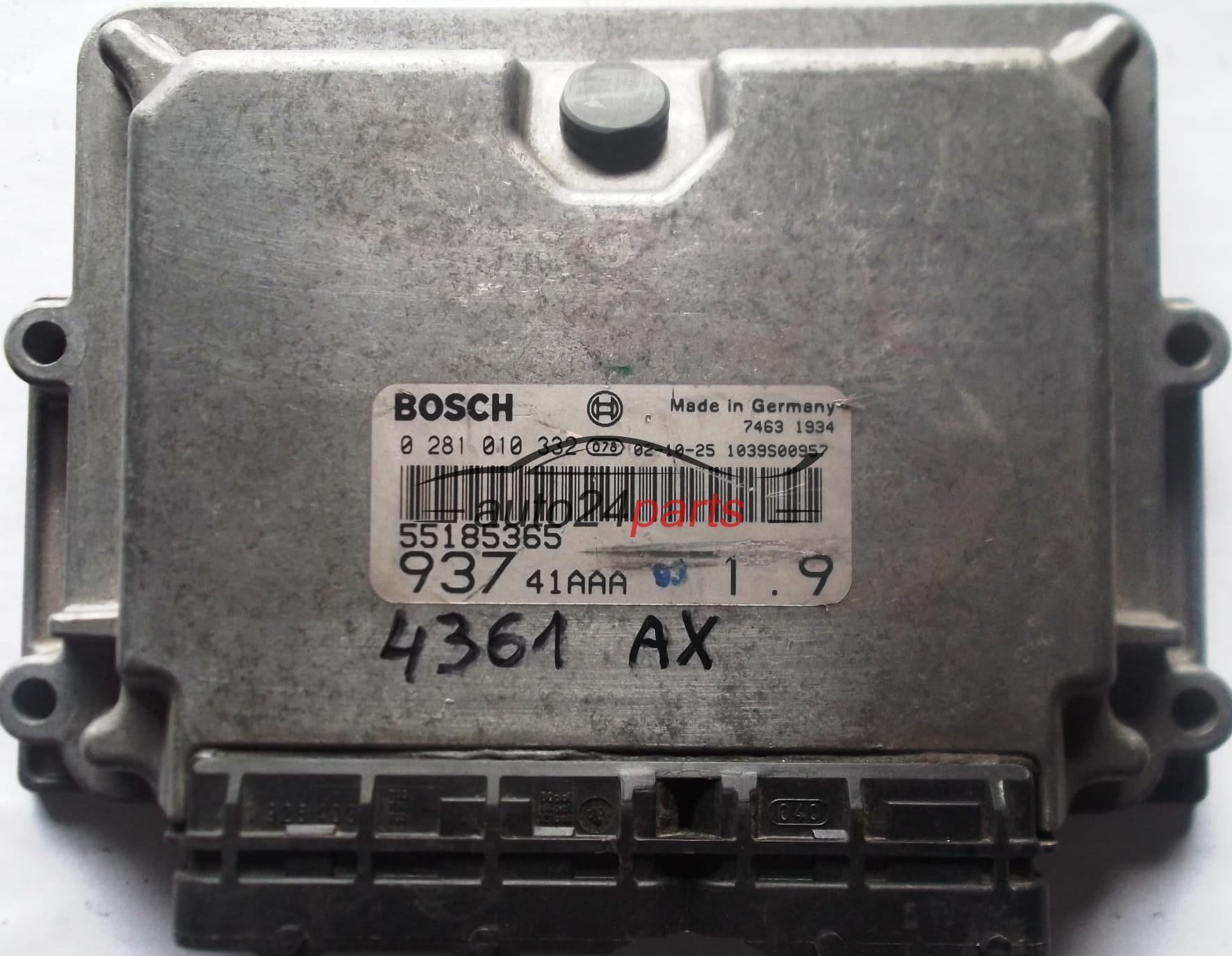

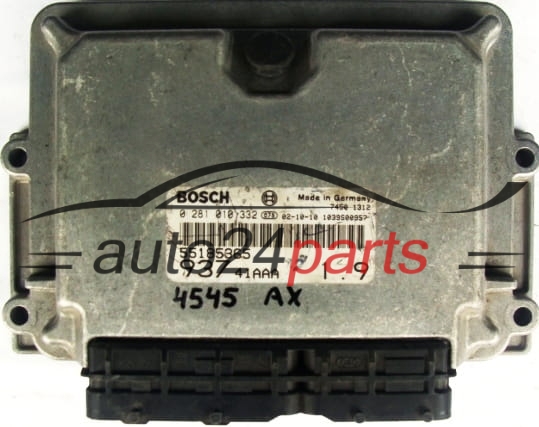

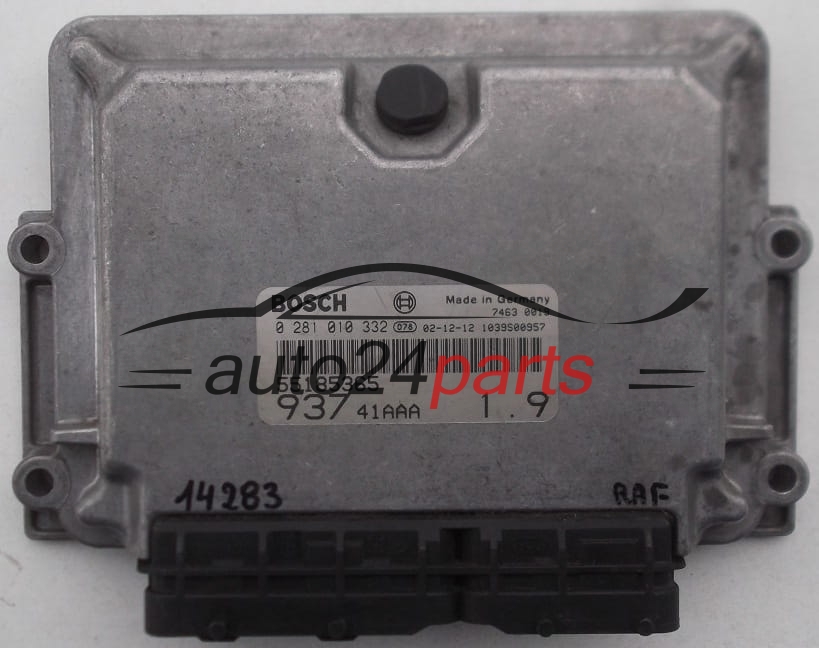

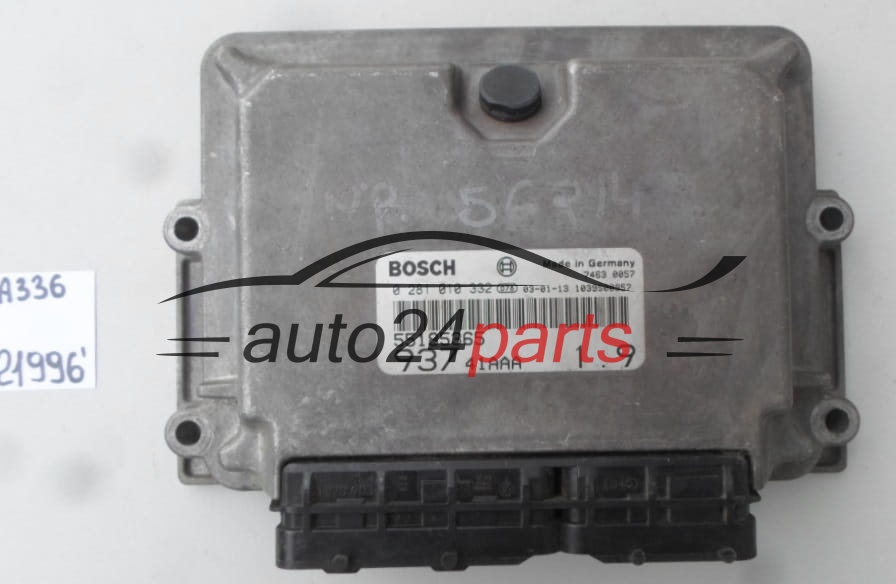

Engine control unit Alfa Romeo 147 1.9 JTD 55185365 0281010332 1039S00957
Vendors's code: 55185365
Product code: 6B27-368F3
Barcode:
Code 39:
ISBN:
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set

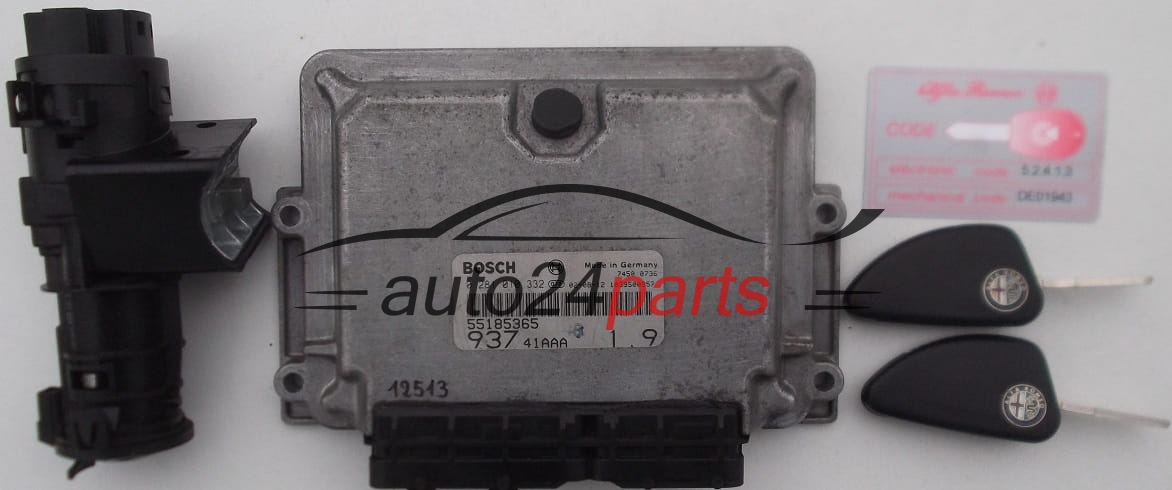

A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Engine control unit Alfa Romeo 147 1.9 JTD 55185365 0281010332 1039S00957
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
How to check whether control unit 55185365 fits Alfa Romeo 147?
Used Alfa Romeo engine control unit with number 55185365. Send us the numbers from the label on your control unit.
Engine control unit 55185365 for Alfa Romeo 147: how to match it by part numbers?
Engine control unit 55185365 is a used electronic module that manages engine operation. It is intended for Alfa Romeo 147, and it is matched by the numbers in the listing, not by the car make alone. The listing states that this control unit is for: Alfa Romeo 147. Engine given in the listing: 1.9 JTD. The listing also gives the markings 93741AAA. They help tell the control unit versions apart, but the full part number is what decides compatibility.
Where to find the numbers on an engine control unit
You will find the numbers on the label of the control unit, while catalogues list them as a single string:
- 55185365, car manufacturer's original number,
- 0281010332, control unit manufacturer's number,
- 1039S00957, additional number from the listing.
The ending of a number often indicates a different version of the control unit, so compare every character. If you are in doubt, write to us before buying.
Control unit variant
This listing is for a control unit in the following variant(s): Locked / Unlocked. We describe the differences between the variants (locked, unlocked, Virgin, IMMO OFF, Plug and Play, clone, full set) on the ECU preparation options page. Before buying, send us the numbers from the label and we will confirm which variant is available for that number.
When an engine control unit needs replacing
- the diagnostic tester cannot connect to the control unit,
- the car loses power or goes into limp mode,
- the radiator fan or other electrical components do not work properly,
- the engine jerks when accelerating.
First check the battery, fuses and wiring, because a faulty control unit has to be distinguished from an ordinary fault in the electrical system. Fitting and configuration are best left to a garage with suitable equipment.
Questions and answers
| What do the markings 93741AAA in the listing mean? |
|---|
| They are markings of the version or type of the control unit. They help tell the units apart, but the full part number is what decides compatibility. |
| Can I send a photo for a compatibility check? |
| Yes. Contact us and send a photo of the label on the original control unit, and we will help you check whether this part will fit. |
| Is this an original control unit? |
| Yes, it is a used original engine control unit, not an aftermarket replacement. You can compare the numbers on the label with the original in your car. |
| What condition is this control unit in? |
| It is a used original part, inspected before sale. You will find the warranty period in the product features table. |
Want to be certain? Send us the numbers from the housing of your control unit, and together we will check whether this part will fit.
