Vendors's code: 55190306
Product code: E054-623CC
Barcode:
Code 39:
ISBN:
Select a product option:
Individual variants may differ in price
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.

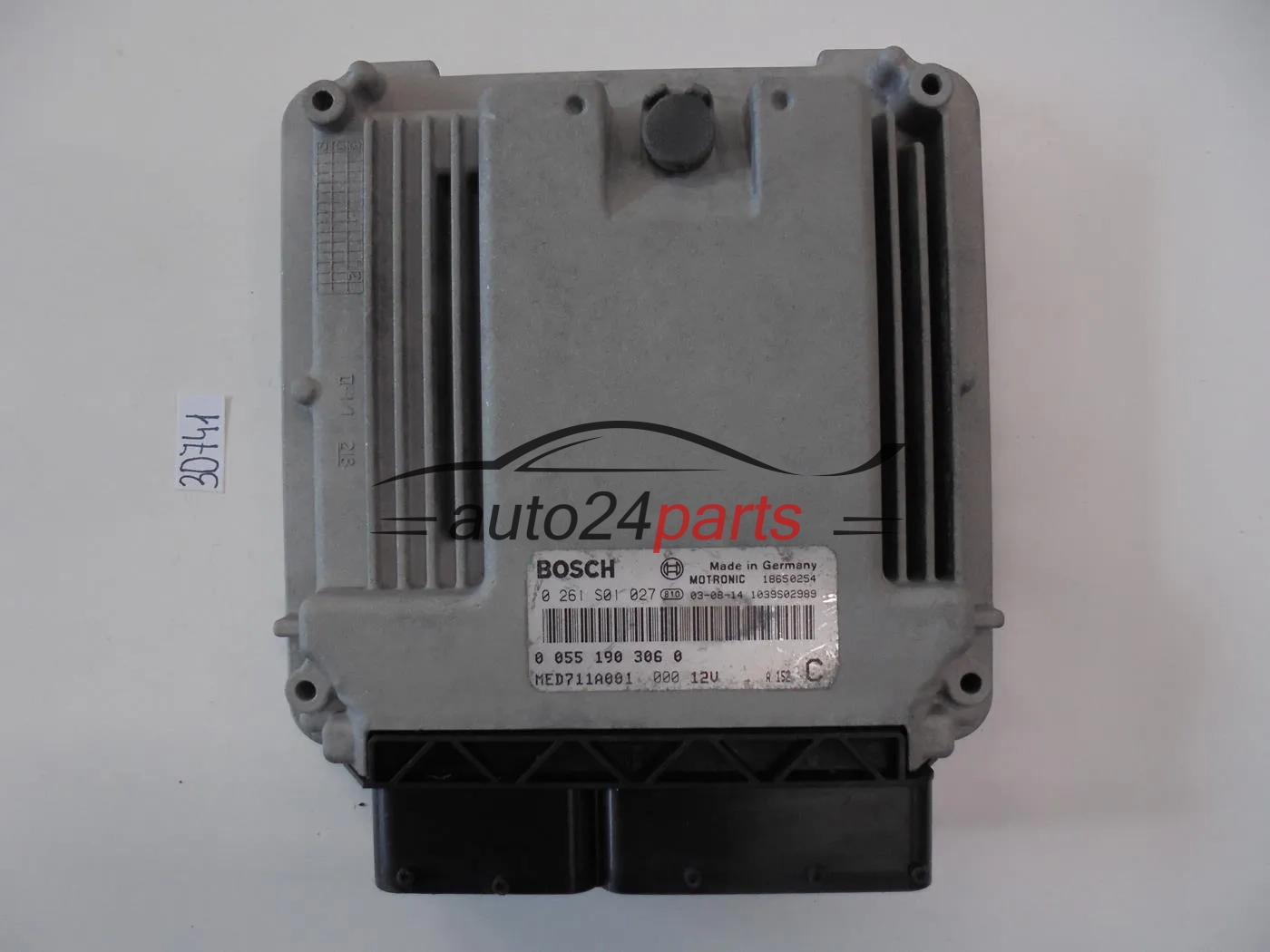

The engine control unit for Alfa Romeo 156 2.0 JTS with part numbers 0261S01027, 00551903060, 55190306 and MED711A001 is a proven solution for replacement or failure – before purchasing, please read the variant description, as the engine controller is available in a locked or unlocked version.
The number 0261S01027 identifies a specific engine control unit used in the Alfa Romeo 156 with the 2.0 JTS engine. This manufacturer designation allows precise matching of the ECU to the correct vehicle version.
To confirm compatibility, compare number 00551903060 with the marking found on the original module in your vehicle. Matching numbers is essential for proper engine operation.
Number 55190306 is the catalog designation assigned to this ECU version. Together with 0261S01027, it clearly identifies the correct module for Alfa Romeo 156 2.0 JTS.
MED711A001 indicates the ECU version or software configuration. Even if the modules look similar, matching this code is important for correct part selection.
Engine control unit 0261S01027 manages operation of the JTS petrol engine, controlling fuel injection and ignition. It directly affects performance, fuel consumption and engine smoothness.
Rough engine operation, starting difficulties, power loss or a check engine light may indicate a problem with module 55190306.
Two variants are available in the store: a locked engine control unit or a virgin (unlocked) version. Before choosing, review the variant descriptions to select the correct option for your vehicle.
Depending on the selected variant, adaptation to the vehicle may be required. It is advisable to verify before installation whether additional coding is necessary.
ECUs may look similar but differ in configuration. Matching numbers 0261S01027, 00551903060, 55190306 and MED711A001 minimizes the risk of incorrect fitment.
Before purchase, ensure that all markings – 0261S01027, 00551903060, 55190306 and MED711A001 – fully match your original module. This guarantees proper installation and correct engine operation.
