Vendors's code:
Product code: 2306-399AC
Barcode:
Code 39:
ISBN:
Select a product option:
Individual variants may differ in price
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.

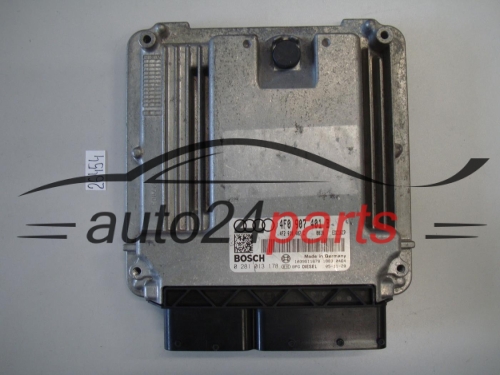

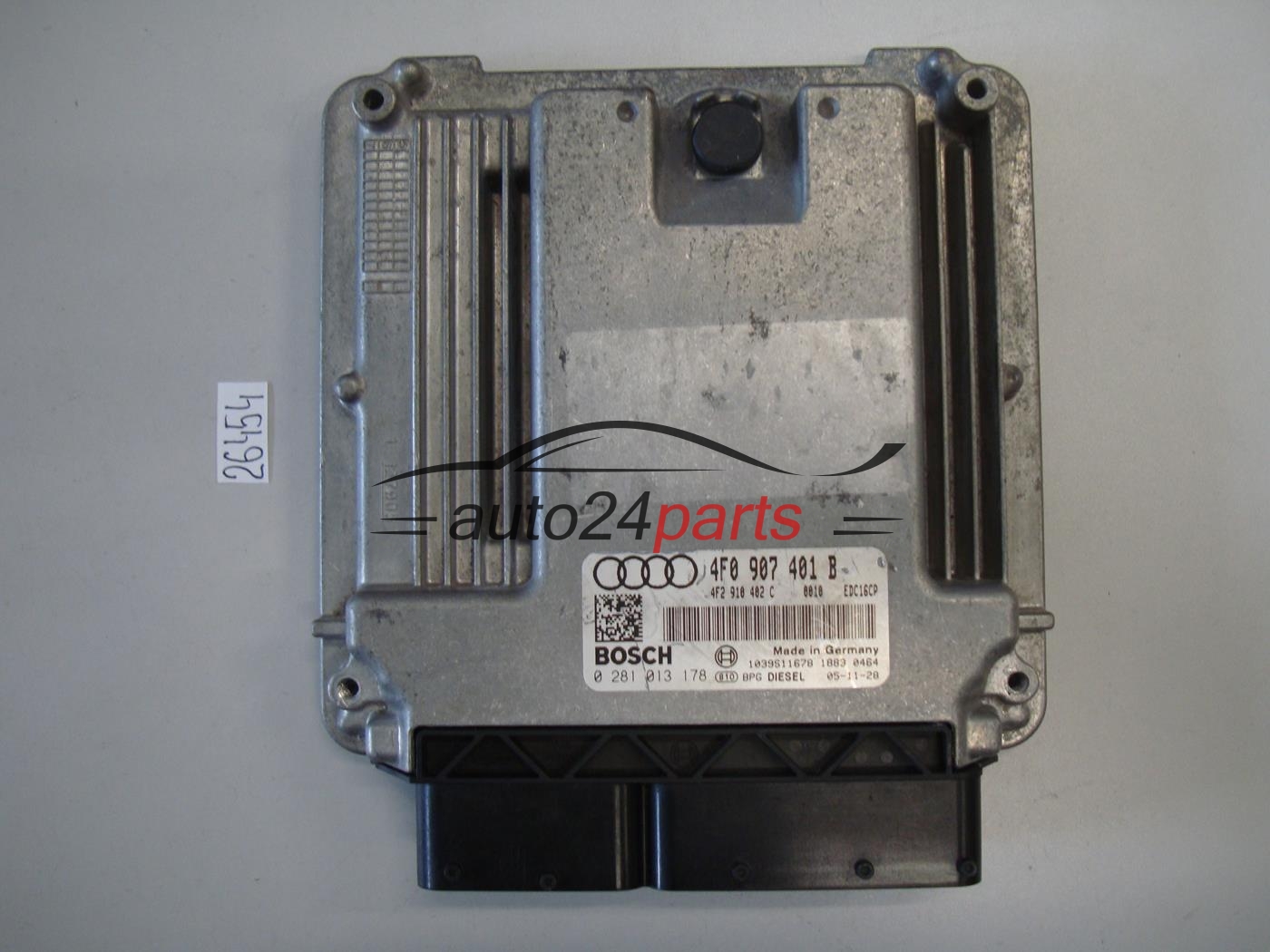

The engine control module with part numbers 0281013178 and 4F0907401B for Audi is an original component responsible for proper engine operation, available in either locked or unlocked variants.
The engine control unit with number 0281013178 and designation 4F0907401B is an original ECU used in Audi vehicles, particularly in Audi A6 models with 2.7 TDI and 3.0 TDI engines from the C6 series. If your current ECU has the same numbers, you can be confident that the part will be compatible with your vehicle.
The number 4F0907401B is the Audi catalog code, while 0281013178 is the Bosch number – the company that manufactures this engine control unit. Together, these numbers uniquely identify the specific ECU.
The 0281013178 4F0907401B ECU is most commonly used in Audi A6 diesel engines with approximately 2.7 l or 3.0 l (TDI). It is a popular control unit in this vehicle group.
Yes — when installed, the 0281013178 4F0907401B ECU usually requires adaptation to the specific vehicle. Many offers include “Virgin” or pre-prepared units for installation, but each requires connection to the car and immobilizer code programming.
To be sure, check whether the numbers 4F0907401B or 0281013178 on your current ECU match those in the offer. Matching numbers is the most reliable way to ensure the part is suitable for your Audi.
The numbers 0281013178 and 4F0907401B uniquely identify the specific Bosch engine control unit used in Audi. This helps avoid mistakes when choosing parts and ensures you buy the correct module for your vehicle.
It depends on the option offered by the seller. Some 0281013178 ECUs are supplied as “Virgin” and require adaptation to the vehicle in a workshop, while others may be partially prepared, but programming and adaptation are still necessary.
A faulty 0281013178 engine control unit may cause starting problems, errors in the diagnostic computer, irregular engine operation, or lack of communication with the ECU. In such cases, replacement or repair is often required.
Yes, the 4F0907401B designation may appear with various Bosch numbers such as 0281012270 or 0281013175 – all referring to EDC16CP34 engine control units used in similar Audi models.
When purchasing the 0281013178 / 4F0907401B engine control unit, the most important factors are matching the numbers, checking the technical condition, and choosing the correct variant (locked, Virgin, or installation-ready). This ensures that the ECU will work properly after installation.
