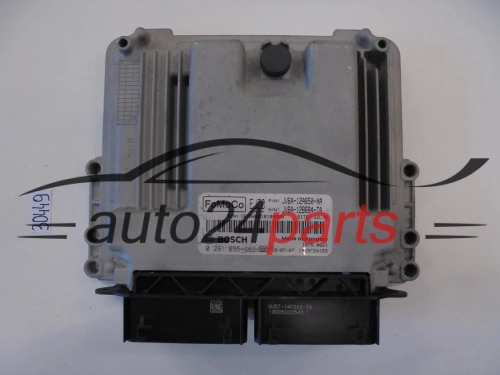

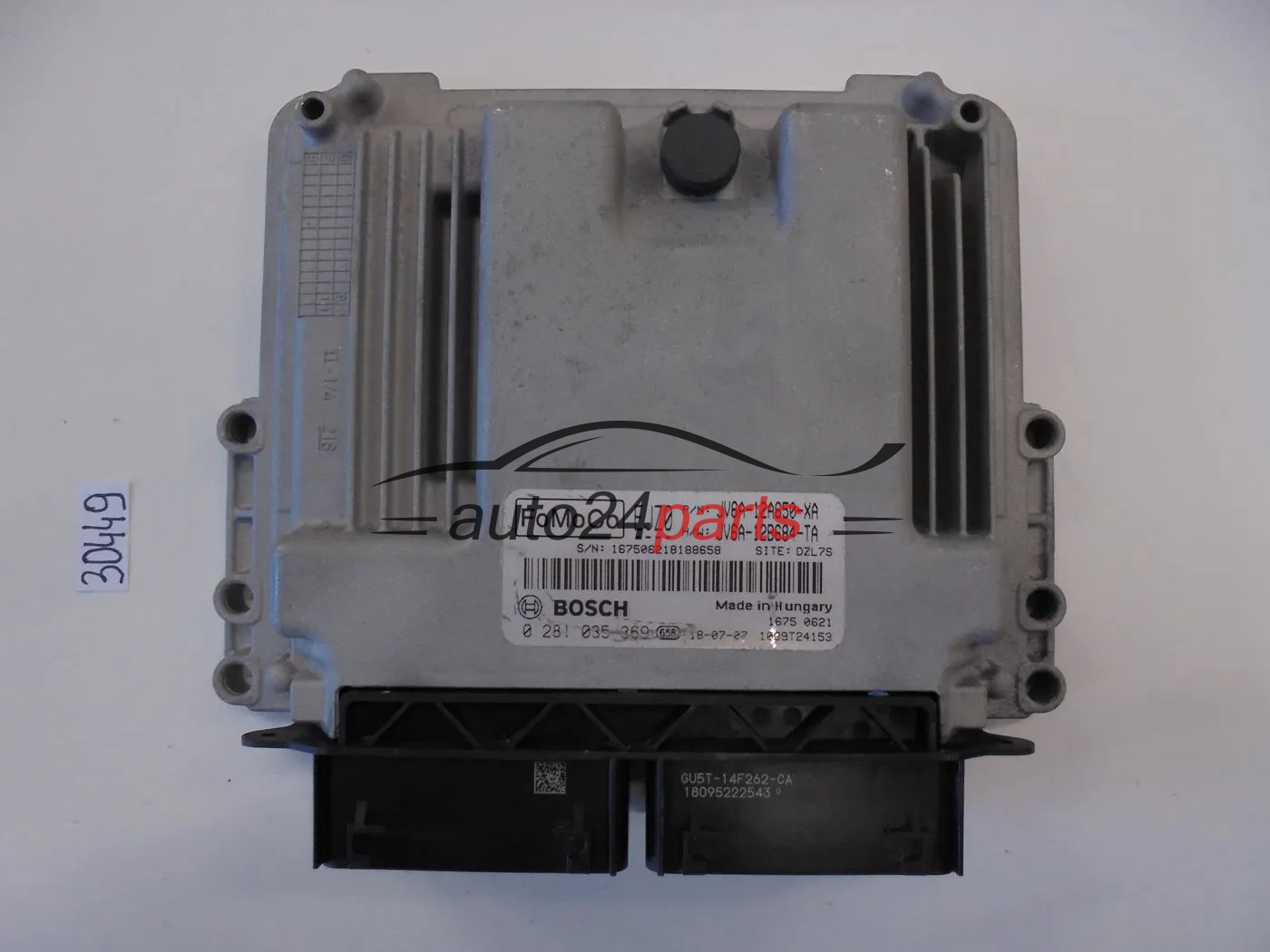

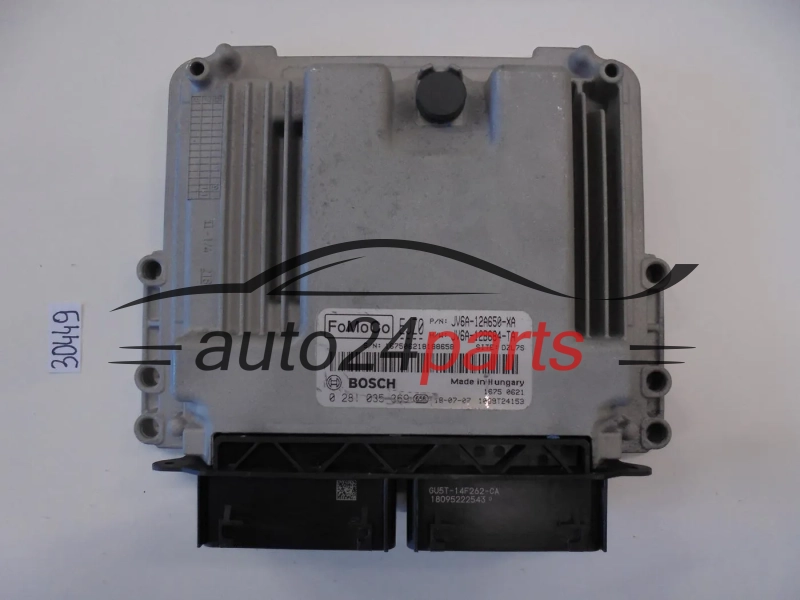

Engine control unit Ford JV6A12A650XA 0281035369
Vendors's code: 0281035369
Product code: D28A-80012
Barcode:
Code 39:
ISBN:
€487.80
Price
€487.80
€600.00
Price
€600.00
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Engine control unit Ford JV6A12A650XA 0281035369
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.

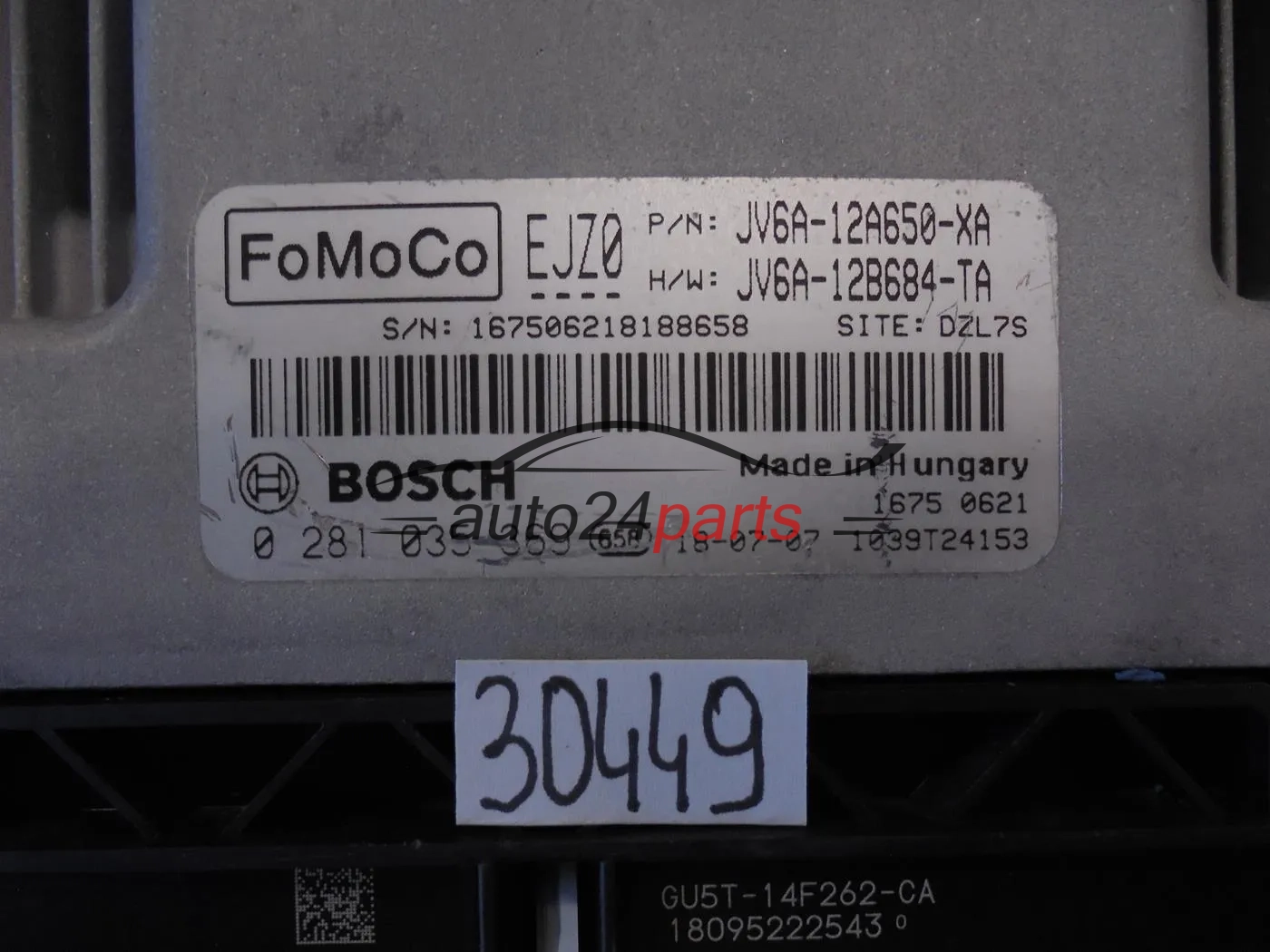

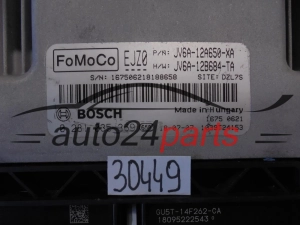

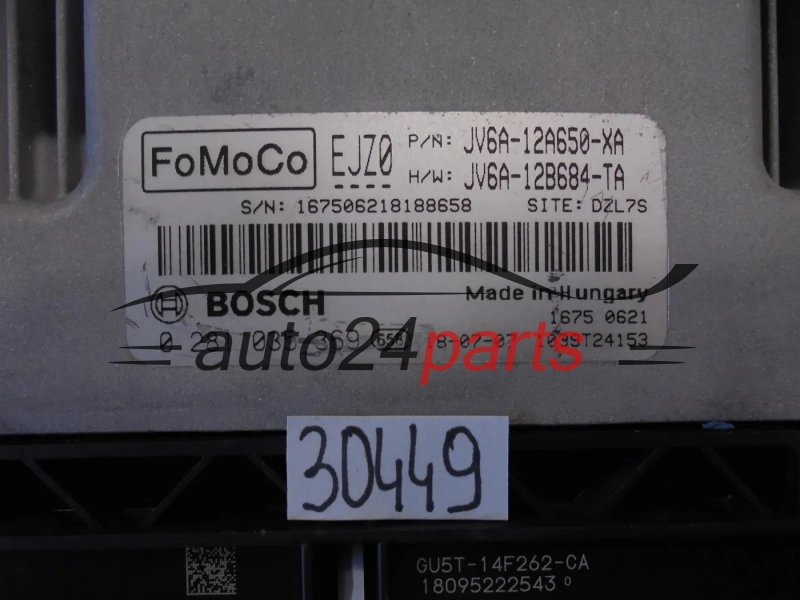

Where to find number JV6A12A650XA on Ford engine control units?
Engine control unit JV6A12A650XA, used and inspected. Compare the numbers with the original in your car.
Is engine control unit JV6A12A650XA the right part for your Ford?
Engine control unit JV6A12A650XA is a used electronic module that manages engine operation. It is intended for Ford, and it is matched by the numbers in the listing, not by the car make alone. The listing does not state the car model or year, so we do not give them in the description and match the part by its numbers.
Part numbers for JV6A12A650XA
Below are the numbers as they appear in the listing, together with the single-string form used in catalogues:
- JV6A-12A650-XA (catalogue format: JV6A12A650XA), car manufacturer's original number,
- 0281035369, control unit manufacturer's number.
Compare the numbers with the original control unit in your car, and if any of them differs, write to us before buying.
Control unit variant
This listing is for a control unit in the following variant(s): Locked / Unlocked. We describe the differences between the variants (locked, unlocked, Virgin, IMMO OFF, Plug and Play, clone, full set) on the ECU preparation options page. Before buying, send us the numbers from the label and we will confirm which variant is available for that number.
Symptoms of a faulty engine control unit
- the engine warning light comes on and does not go out,
- the radiator fan or other electrical components do not work properly,
- the engine jerks when accelerating,
- starting is blocked by the immobiliser after the electronics have been replaced or repaired.
Before replacing the control unit, check the condition of the connector and the power supply wires. After fitting, the fault codes usually need to be cleared and, if necessary, the control unit programmed for the car.
Questions and answers
| Where do I find number JV6A12A650XA on my control unit? |
|---|
| The numbers are on a sticker or printed on the housing of the control unit. Take a close-up photo of the label in good light so that all the characters can be read. |
| Which car model does this control unit fit? |
| The listing does not state a model or year, so confirm compatibility with the number from the original control unit in your car, or send us a photo of its label. |
| How should I prepare for fitting the control unit? |
| Disconnect the battery, check the connector and the wiring, and after fitting read and clear the fault codes with a tester. Configuration is best carried out in a garage with suitable equipment. |
| Is this a new part? |
| No. We sell used original control units, each one inspected before sale. You will find the warranty period in the product features table. |
If the numbers on your control unit differ from those given, write to us. We will check whether the right version is available in our range.
