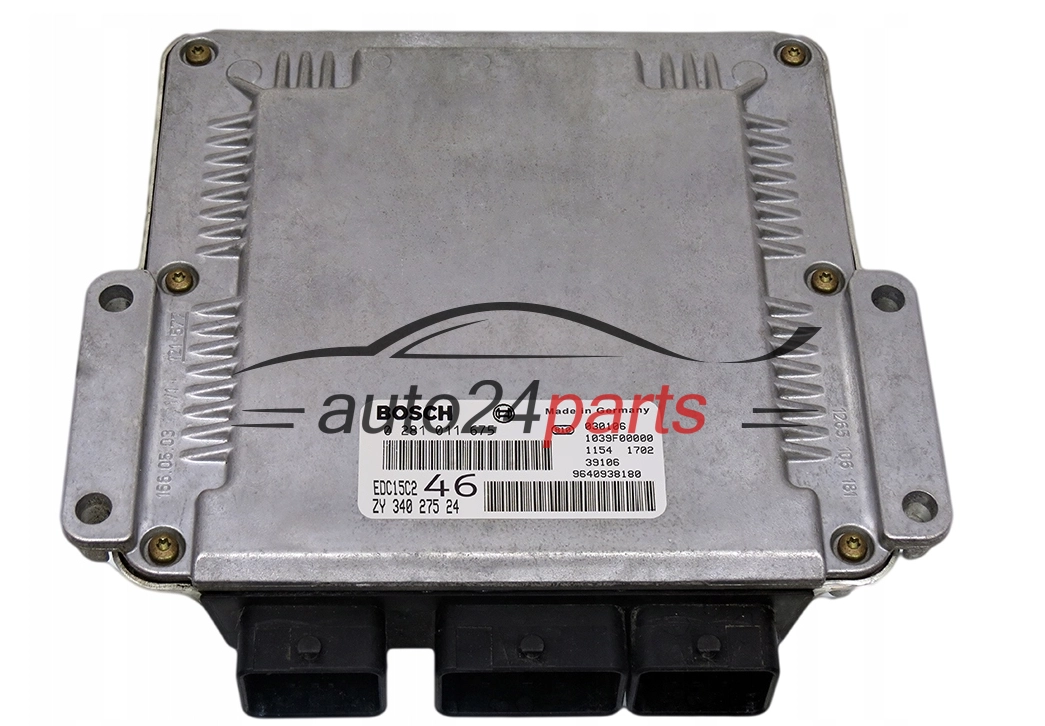

Engine control unit Suzuki Bosch EDC15C2 0281011675 ZY34027524
Vendors's code: ZY34027524
Product code: A297-46976
Barcode:
Code 39:
ISBN:
€223.58
Price
€223.58
€275.00
Price
€275.00
In stock
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Engine control unit Suzuki Bosch EDC15C2 0281011675 ZY34027524
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
0281011675 engine ECU for your Suzuki – how to check the fit
We offer a used, fully working Bosch engine control unit with part numbers 0281011675 and ZY34027524. It fits if the same numbers appear on the label of the ECU in your car. Available locked or unlocked.

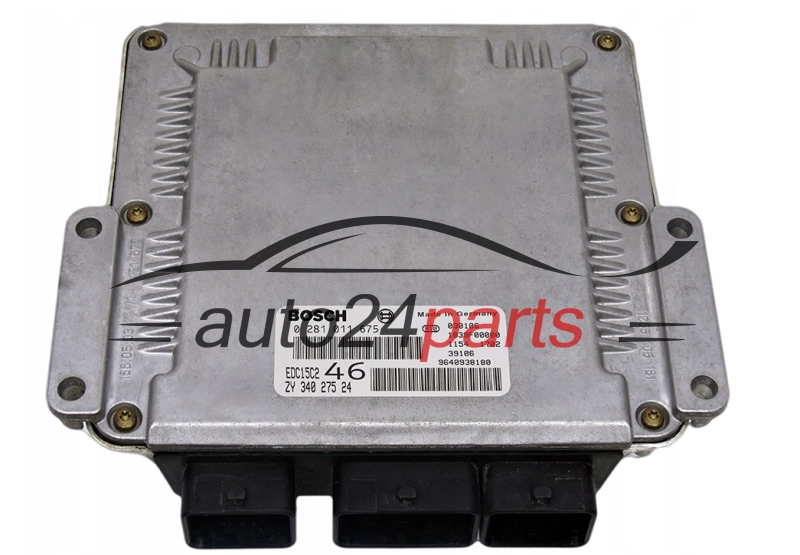

Engine control unit Suzuki Bosch EDC15C2 0281011675 ZY34027524
The Bosch module 0281011675 controls the engine – it reads sensor data and uses it to regulate the fuel system. It is a part for Suzuki vehicles. Confirm the exact model and engine using the numbers on the label – the vehicle type alone is not enough.
Numbers on the label
- 0281011675 – Bosch number
- ZY34027524 – additional marking
- 340275340 – additional marking
- EDC15C2 – Bosch ECU type
Compare them with the sticker on the ECU in your car. The number decides the fit, not the model alone – Suzuki used different ECU versions.
When the ECU may be faulty
- the engine will not start despite a good power and fuel supply,
- no communication with the ECU during diagnostics,
- limp mode with no sensor fault,
- damage after water ingress or a voltage spike.
Before replacing the ECU, check the power supply, earths and wiring loom – a damaged wire or connector can cause similar symptoms.
Locked or unlocked?
In the locked version the ECU still stores the data of the car it came from and needs programming at a garage. The unlocked version is prepared by us before dispatch.
The available unlocking methods depend on the ECU number and the immobiliser system, so before buying ask what we can prepare for the 0281011675 unit.
All variants are described on our Locked & Unlocked ECUs page.
Questions and answers
| Is ZY34027524 the same ECU as 0281011675? |
|---|
| Yes. Both numbers appear on the label of the same ECU. |
| Can I fit an ECU with a different number suffix? |
| A different suffix can mean a different software or hardware version. Send us a photo of the label and we will check whether the 0281011675 ECU is suitable. |
| What details should I send before ordering? |
| All the numbers from the label of your current ECU, or a clear photo of it. Based on that, we will check the fit and the possible variants. |
Any questions? Send a photo of your ECU label to contact@auto24parts.com – we will tell you whether this unit will fit.
