A properly functioning ABS system is the foundation of road safety. Its main task is to prevent wheel lock-up during emergency braking, which allows the driver to maintain full control of the vehicle. The heart of this system is the electronic ABS pump controller. When it fails, the system stops working. A proper diagnosis of the problem allows you to avoid unnecessary costs and quickly restore brake efficiency.
Automated Manual Transmission Control Unit Fiat 500 1.2 Magneti Marelli CFC328F05 51864449 BC0096881D
Vendors's code:
Product code: 3ACD-62705
Barcode:
Code 39:
ISBN:
€487.80
Price
€487.80
€600.00
Price
€600.00
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Automated Manual Transmission Control Unit Fiat 500 1.2 Magneti Marelli CFC328F05 51864449 BC0096881D
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Transmission Control Unit CFC328F05 – does it fit your Fiat 500?

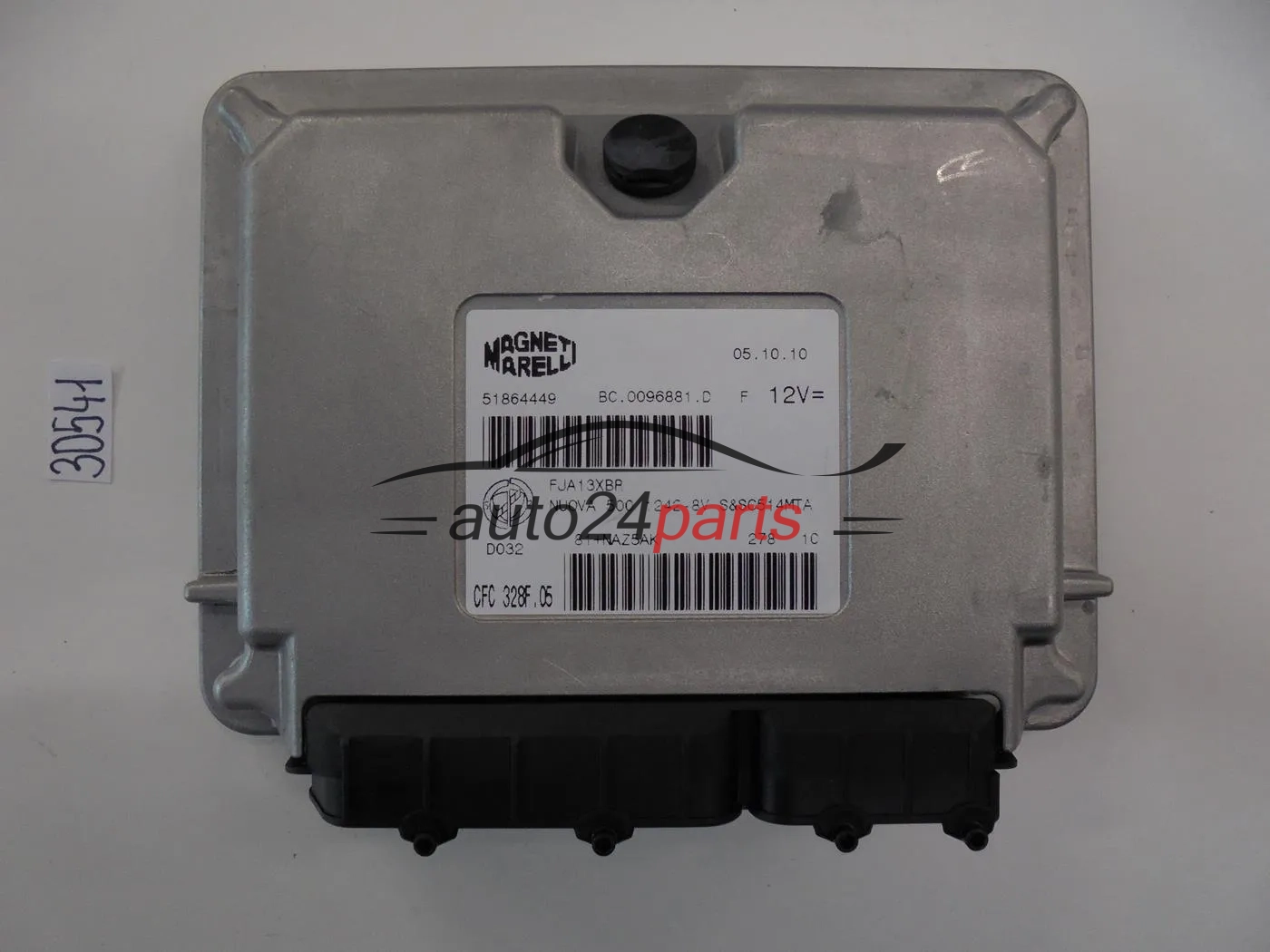

This is a used, working Magneti Marelli automated manual transmission control unit with part numbers CFC328F05, 51864449 and BC0096881D. It fits: Fiat 500 with 1.2 engine (Dualogic gearbox). Before buying, compare the numbers with the label on the control unit in your car.
Automated Manual Transmission Control Unit Magneti Marelli CFC328F05 – Fiat 500
An automated manual gearbox (Dualogic) is a manual gearbox in which the clutch and gear changes are operated by actuators. The control unit (TCU) decides when to disengage the clutch and change gear and controls the actuators – the driver has no clutch pedal. This unit fits: Fiat 500 with 1.2 engine.
Part numbers to compare
- CFC328F05 – control unit manufacturer number (Magneti Marelli), on the label: CFC 328F.05
- 51864449 – Fiat part number
- BC0096881D – additional marking, on the label: BC.0096881.D
The same numbers should appear on the control unit in your car. The car model alone is not enough – control units differ in software version and configuration.
Signs of a faulty transmission control unit
When the transmission control unit starts to fail, the most common signs are:
- inability to engage a gear or pull away,
- a gearbox or clutch fault message,
- jerky gear changes,
- no communication with the control unit in the diagnostic tool.
Before replacing it, check the battery and power supply – automated manual gearboxes are sensitive to low voltage – as well as the earth connections and connectors, and read the fault codes. After replacement, the gearbox usually needs an adaptation (including clutch bite point learning) with a diagnostic tool.
Frequently asked questions
| Which car does the CFC328F05 control unit fit? |
|---|
| It fits: Fiat 500 with 1.2 engine. Before buying, compare the numbers with the label on the control unit in your car. |
| Which number should I compare? |
| Ideally all of them: CFC328F05 is the control unit manufacturer number, 51864449 is the Fiat part number and BC0096881D is an additional marking. You will find them all on the control unit label. |
| Does the control unit need programming after replacement? |
| Usually yes – after fitting, the gearbox is adapted (including clutch bite point learning) with a diagnostic tool. |
| What condition is this control unit in? |
| It is a used part in good working condition. The warranty period is shown in the product specification table. |
Not sure whether this control unit fits your car? Send us a photo of your control unit label and we will confirm compatibility.
