Throttle Body Toyota Prius (XW30/XW50) Prius V Prius Prime Denso 2203037060
Vendors's code: 22030-37060
Product code: 2203037060
Barcode:
Code 39:
ISBN:
€142.28
Price
€142.28
€175.00
Price
€175.00
Ask about the product

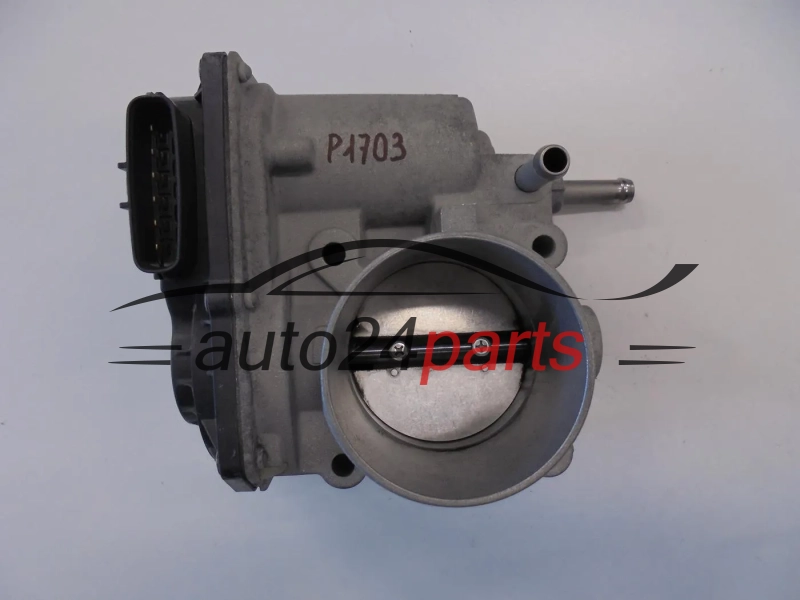

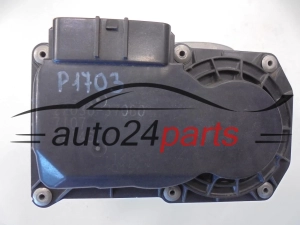

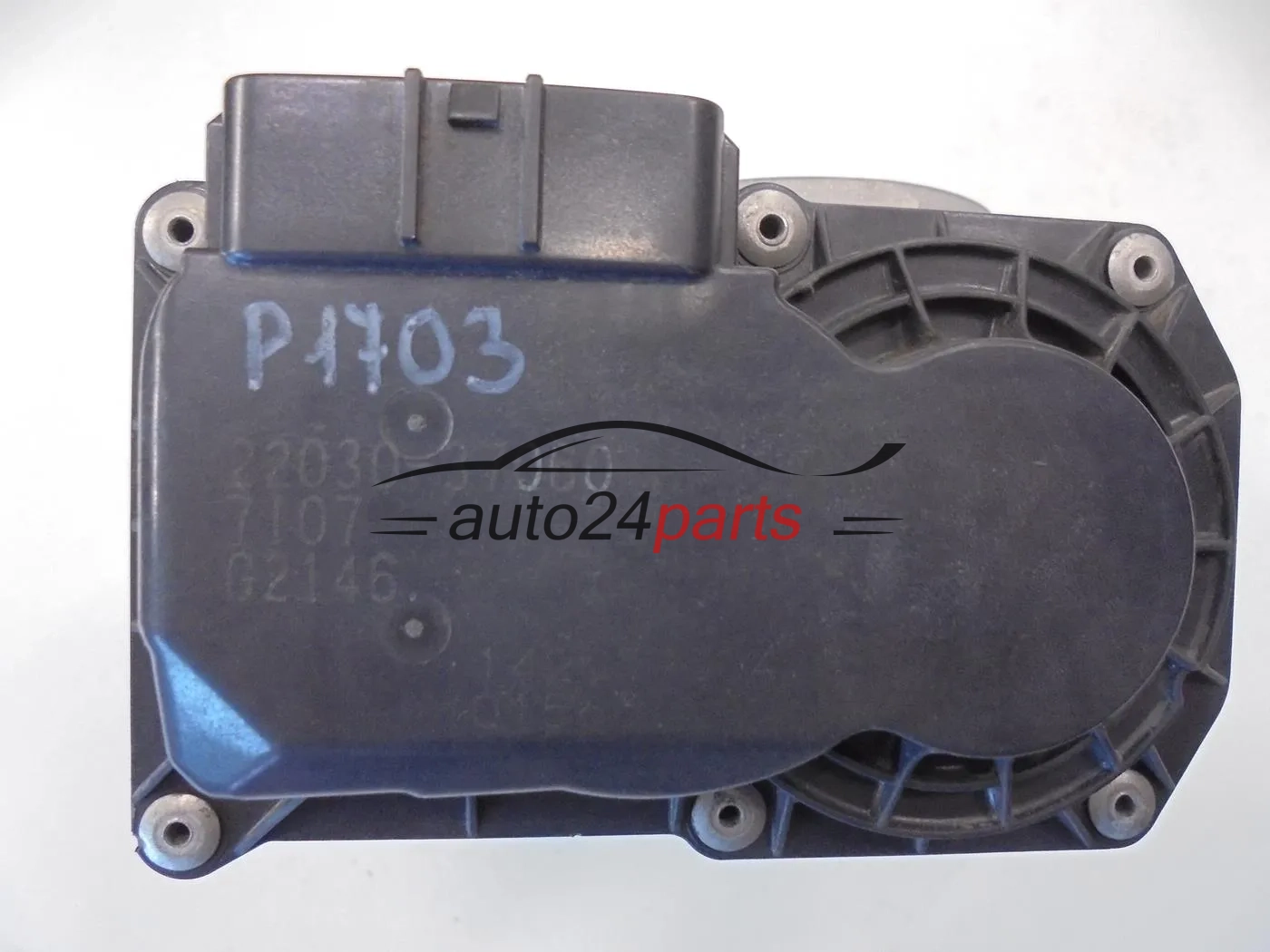

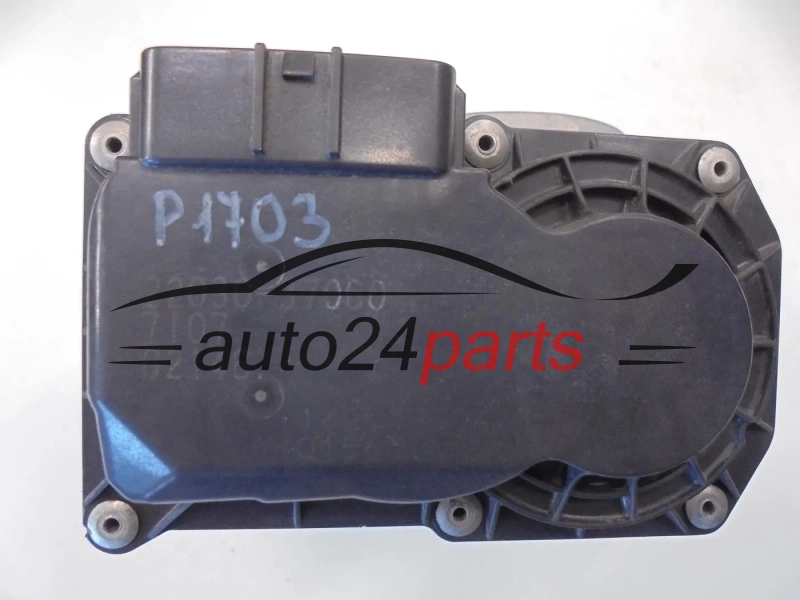

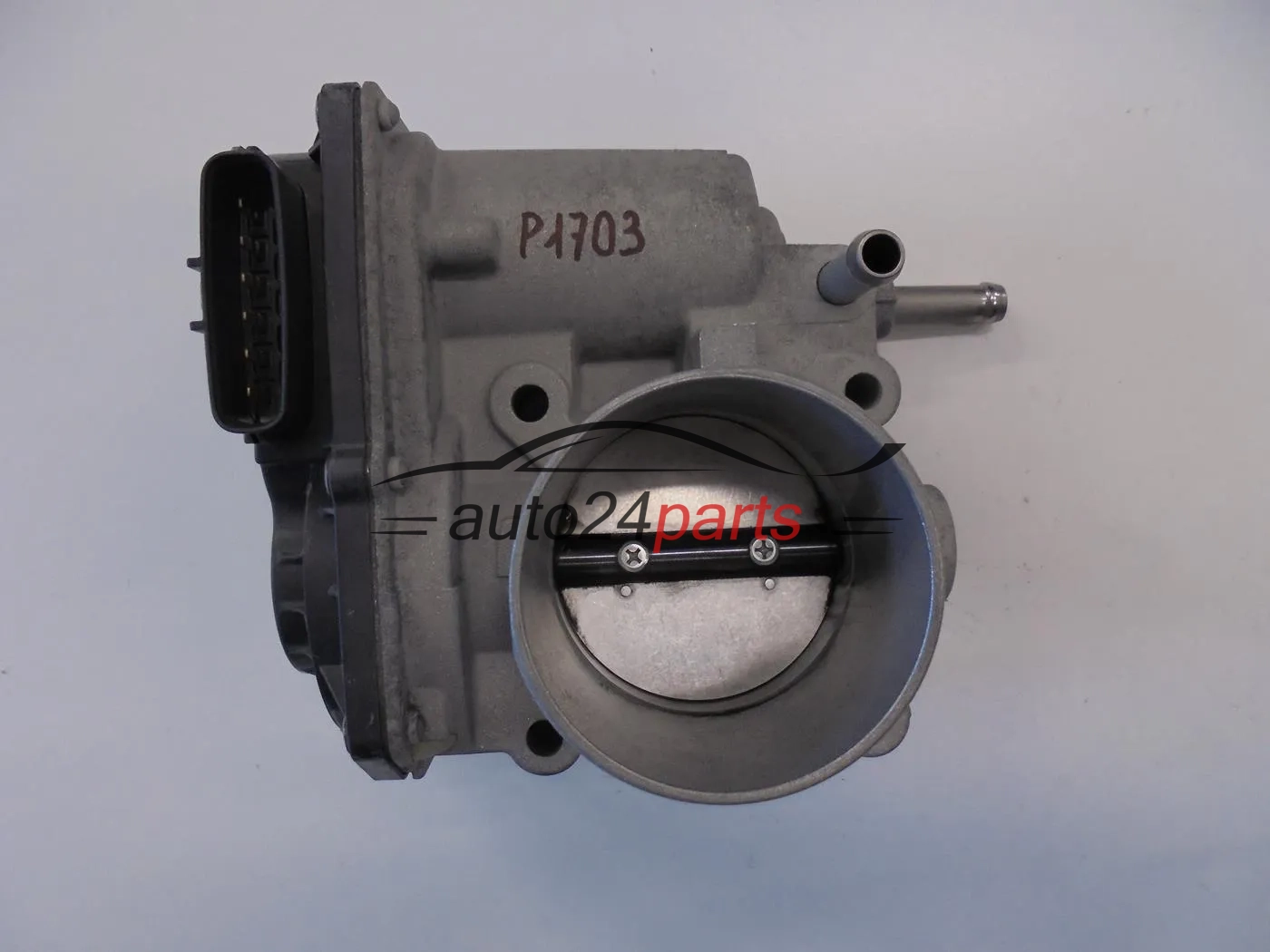

Throttle Body Toyota Prius (XW30/XW50) Prius V Prius Prime Denso 2203037060
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Throttle body 2203037060 Denso – is it the right part for your car?
This is a used, working Denso throttle body with part number 2203037060, for: Toyota Prius (XW30/XW50), Prius V, Prius Prime, Corolla (engines: 1.8 2ZR-FXE), 2010–2024. Before ordering, compare the number with the label on the throttle body fitted to your car.
Throttle Body Denso 2203037060 – Toyota Prius (XW30/XW50), Prius V, Prius Prime, Corolla
The job of the 2203037060 throttle body is to meter the air entering a petrol engine. In electronic throttle bodies, the throttle plate position is set by the engine control unit based on the accelerator pedal signal. According to the product data, it fits: Toyota Prius (XW30/XW50), Prius V, Prius Prime, Corolla; engines: 1.8 2ZR-FXE; production years: 2010–2024.
Choosing by part number
- 2203037060 – also printed as 22030-37060
Check whether the throttle body in your car carries the number 2203037060. Knowing only the model (Toyota Prius (XW30/XW50), Prius V, Prius Prime, Corolla) is not enough to choose the part: different throttle body versions were used in the same cars.
Common throttle body faults
When the throttle body in a Toyota starts to fail, the most common signs are:
- worn track in the throttle position sensor – fluctuating revs, jerking on light throttle,
- carbon deposits on the throttle plate – rough idle, engine stalling when coming to a stop,
- in electronic throttle bodies: failed motor or gear drive – limp mode, reduced power, engine warning light.
When measurements or fault codes confirm the problem and cleaning has no effect, the throttle body is replaced with one carrying the same number. After replacement, many cars need an adaptation in the engine control unit.
Questions and answers
| How do I check that the 2203037060 throttle body fits my car? |
|---|
| Compare the number 2203037060 with the label of the throttle body fitted to your car (Toyota Prius (XW30/XW50), Prius V, Prius Prime, Corolla). |
| Which engines does the 2203037060 throttle body fit? |
| According to the product data, it fits 1.8 2ZR-FXE engines in: Toyota Prius (XW30/XW50), Prius V, Prius Prime, Corolla, 2010–2024. |
| Does the throttle body need to be adapted (relearned) after replacement? |
| In many cars, yes: after fitting, the engine control unit learns the end positions of the throttle. This is done with a diagnostic tool or by following the procedure described by the car manufacturer. |
| What condition is this throttle body in? |
| It is a used, working unit in good condition. The warranty is listed in the product specification table. |
Need help choosing a part for your Toyota? Send us the number from your throttle body's label and we will confirm whether this part will fit.
