A faulty transmission control module (TCM) most often causes limp mode with the gearbox stuck in one gear, harsh jolts when you select D or R, erratic gear changes, flashing PRND letters and a gearbox or engine warning light. However, the same symptoms are often caused by a low gearbox oil level, a weak battery, a poor earth or a faulty sensor. To test a transmission control module, start by checking the battery and reading the fault codes with a diagnostic tool that can talk to the gearbox control unit, then check the power supply, the connector, the oil and the live data. Below we explain the symptoms, the diagnostic steps and what the most common fault codes mean.
Engine Control Unit Volkswagen Golf Sportsvan 1.6 TDI Delphi DCM6.2V 04L907445B 28445556
Vendors's code: 28445556
Product code: 04L907445B
Barcode:
Code 39:
ISBN:
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Are 04L907445B and 28445556 the same ECU?
They are two numbers of one module: 04L907445B is assigned by Volkswagen and 28445556 by Delphi. You can buy this used, fully working DCM6.2V from a Golf Sportsvan 1.6 TDI locked or IMMO OFF.

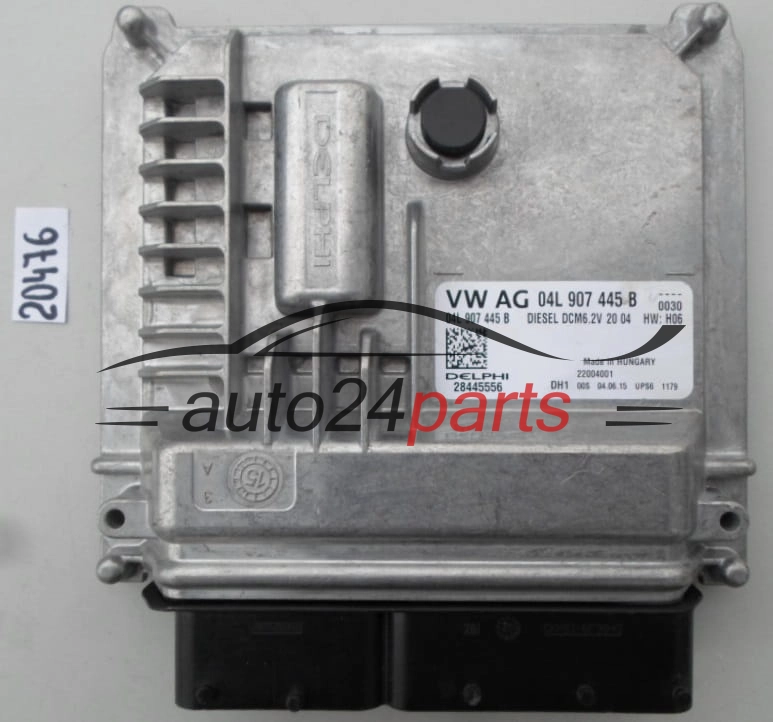

Engine Control Unit Volkswagen Golf Sportsvan 1.6 TDI Delphi DCM6.2V 04L907445B 28445556
The Delphi number 28445556 distinguishes this ECU from other modules with VW number 04L907445B. It is a Delphi DCM6.2V from a Volkswagen Golf Sportsvan 1.6 TDI, responsible for controlling the diesel engine – from the injection quantity to boost. The module is available in two versions: locked and IMMO OFF.
Numbers on the label
- 28445556 – Delphi number, the main distinguishing feature of this unit
- 04L907445B – Volkswagen part number
- DCM6.2V – Delphi ECU type
Compare both numbers with the label. The letter B in the VW number denotes the version, but with this ECU the Delphi number matters too.
When to suspect the ECU
- the engine will not start although the power supply is correct,
- diagnostics cannot see the engine computer,
- reduced power with no sensor faults,
- damage after water ingress or a voltage spike.
First make sure the connector, earths and fuses are in good condition – a wiring fault can look just like a module failure.
Your choice: locked or IMMO OFF
Locked – the ECU retains the immobiliser and data from the previous vehicle. This is the option for a workshop that will program and adapt it itself.
IMMO OFF – before dispatch we prepare the module with immobiliser support disabled in the software. Before you order, we will confirm whether this solution suits your vehicle. There is no unlocked version here. Description: ECU options.
Questions and answers
| Will this module replace a 04L907445B ECU numbered 28444729? |
|---|
| The VW number is shared, but the Delphi numbers differ. Please contact us before buying. |
| What does the IMMO OFF version involve? |
| Immobiliser support is disabled in the software; before purchase we check whether this suits the vehicle. |
| Is there an unlocked version? |
| No, only locked and IMMO OFF. |
| How long does it take to prepare the IMMO OFF version? |
| We prepare the module before dispatch; we will confirm the timescale together with the availability of the solution for your vehicle. |
| What condition is the ECU in? |
| Used, fully working, in good condition. You will find the warranty period in the product features table. |
Contact: contact@auto24parts.com – please include the numbers from your ECU.
