The automatic transmission control unit (often designated as TCU or TCM) is a crucial electronic component responsible for smooth and trouble-free gear shifting. Its failure, most often caused by overheating, short circuits, or water damage, results in jerking, an inability to shift gears, or the vehicle entering limp mode. Purchasing a new module at an authorized dealership is a massive expense, which is why replacing it with a fully functional, used original is the most reasonable solution.
ABS pump and control module Audi Bosch 4E0614517A 0265225133 4E0910517A 0265950061
Vendors's code:
Product code: 406A-94153
Barcode:
Code 39:
ISBN:
€569.11
Price
€569.11
€700.00
Price
€700.00
Ask about the product
ABS pump and control module Audi Bosch 4E0614517A 0265225133 4E0910517A 0265950061
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
4E0614517A – does your ABS pump carry this number?
If the block of your pump shows 4E0 614 517 A and the control module is marked 4E0 910 517 A, this used, working Bosch unit from an Audi is a proper candidate for a replacement.
Bosch ABS unit for Audi: pump 4E0614517A, control module 4E0910517A
The whole assembly is run by module 4E0 910 517 A (Bosch 0 265 950 061). The speed sensors at the wheels constantly send it pulses; the control module compares them and, if a wheel is about to lock, opens or closes the valves of block 4E0614517A. A damaged sensor can trigger messages similar to a failure of the module itself, which is why these two components are diagnosed together.
Identification numbers of the pump and control module
- 4E0614517A – VAG number of the ABS pump (hydraulic unit), written 4E0 614 517 A
- 0265225133 – Bosch number of the hydraulic block (pump) – 0 265 225 133
- 4E0910517A – VAG number of the ABS/ESP control module: 4E0 910 517 A
- 0265950061 – Bosch number of the control module, marked 0 265 950 061

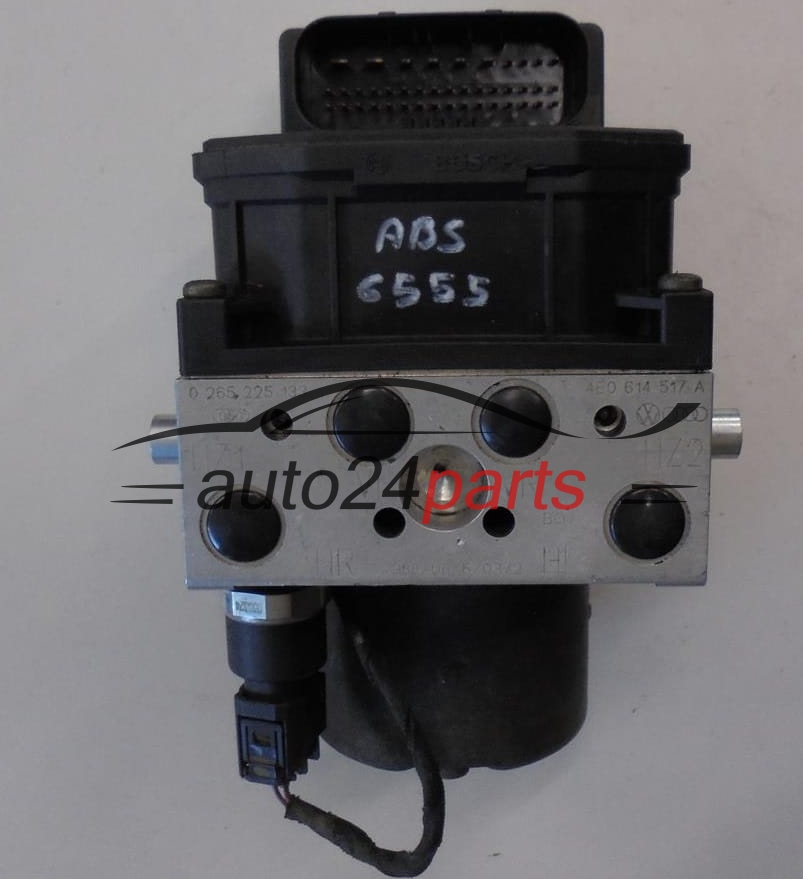

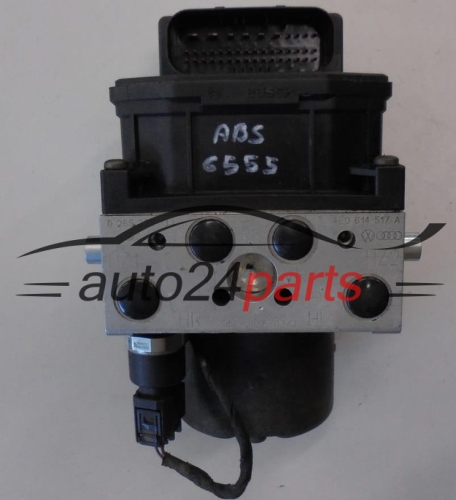

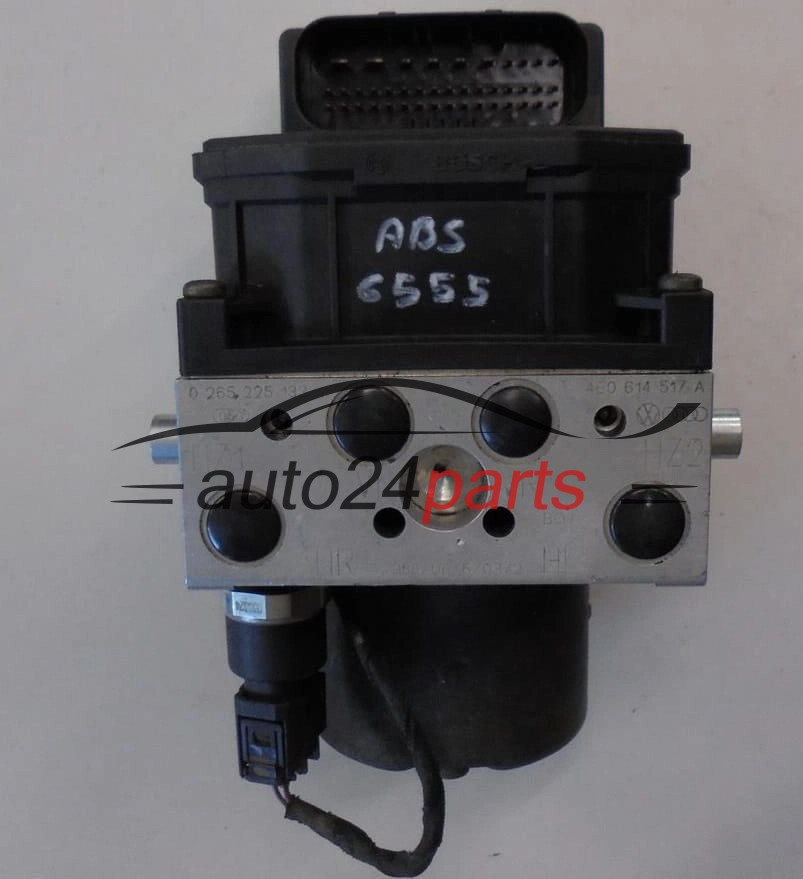

The pump markings are stamped into the metal of the hydraulic block – in the photo some of them are covered by a watermark. The block also bears the port symbols HZ1, HZ2, VL, VR, HL and HR. We have two other suffix versions of this pump in the shop, so check that your number also ends in the letter A.
Signs of trouble with the ABS unit
Replacement is most often prompted by:
- the diagnostic tool losing communication with the ABS module,
- the ABS warning light showing while driving,
- a recorded pump motor fault.
Confirm the fault by reading the control module memory and checking the wheel sensors, fuses, wiring, connector and battery. Once the unit is fitted, the brake system needs bleeding, and on an Audi the control module often has to be coded; with ESP, calibration of the steering angle sensor usually follows.
Questions about 4E0614517A
| Is this pump for an Audi? |
|---|
| Yes, number 4E0 614 517 A relates to Audi. We do not state the model – you check compatibility by the numbers. |
| What is its technical condition? |
| It is a genuine, used, working Bosch unit. The warranty period is given in the product features table. |
| Will a version with a letter other than A fit? |
| Not necessarily. A different suffix may mean a different version of the system, so choose a pump with the same marking as in your car. |
| Are the brakes bled after replacement? |
| Yes – once the hydraulic block has been replaced, the brake system must be bled. |
Have your old pump to hand? Photograph the numbers stamped on it or give us your VIN, and we will confirm the fit.
