A properly functioning ABS system is the foundation of road safety. Its main task is to prevent wheel lock-up during emergency braking, which allows the driver to maintain full control of the vehicle. The heart of this system is the electronic ABS pump controller. When it fails, the system stops working. A proper diagnosis of the problem allows you to avoid unnecessary costs and quickly restore brake efficiency.
ABS pump and control module Audi ATE 8Z0614517C 10020402234 8Z0907379B 10094703063
Vendors's code: 10094703063
Product code: 1263-47467
Barcode:
Code 39:
ISBN:
€162.60
Price
€162.60
€200.00
Price
€200.00
Ask about the product
ABS pump and control module Audi ATE 8Z0614517C 10020402234 8Z0907379B 10094703063
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Do you need ABS unit 8Z0614517C with control module 8Z0907379B?
This ATE-made unit was removed from an Audi; it is a used but working part. It fits where number 8Z0 614 517 C and module number 8Z0 907 379 B match.
ATE ABS unit 8Z0614517C – complete with module 8Z0907379B

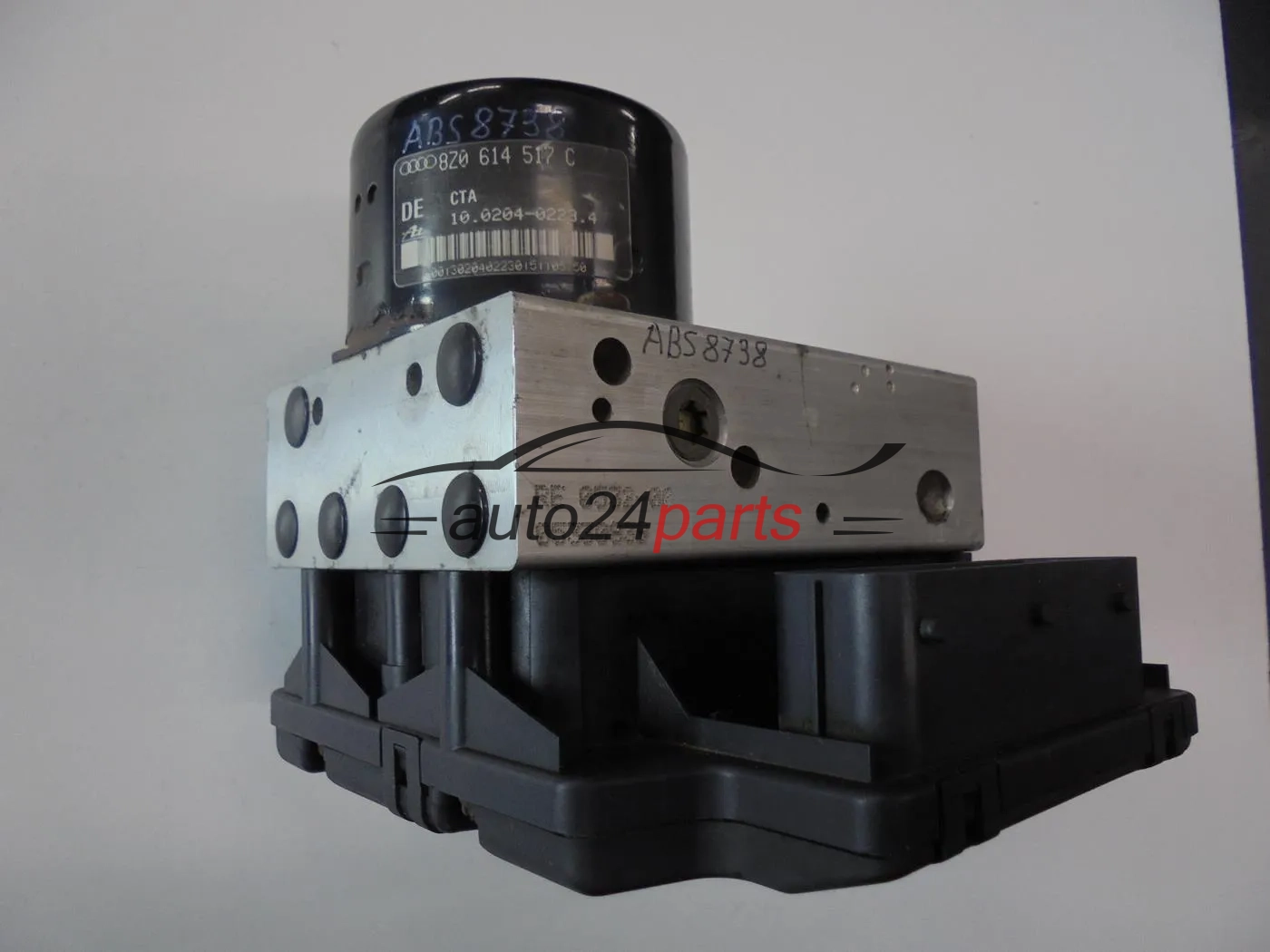

The whole assembly is usually replaced when the hydraulics or the electronics have failed and repairing one of the components is uneconomical or impossible. With this listing you receive the hydraulic block with valves and the motor of pump 8Z0614517C, plus the control module bolted to it. Both components worked together in the same car, so they form a matched pair.
Full list of assembly markings
- 8Z0614517C – VAG number of the ABS pump (hydraulic unit), on the pump sticker: 8Z0 614 517 C
- 10020402234 – ATE number of the hydraulic block (pump) – 10.0204-0223.4
- 8Z0907379B – VAG number of the ABS/ESP control module; on the module: 8Z0 907 379 B
- 10094703063 – ATE number from the control module label, written as 10.0947-0306.3

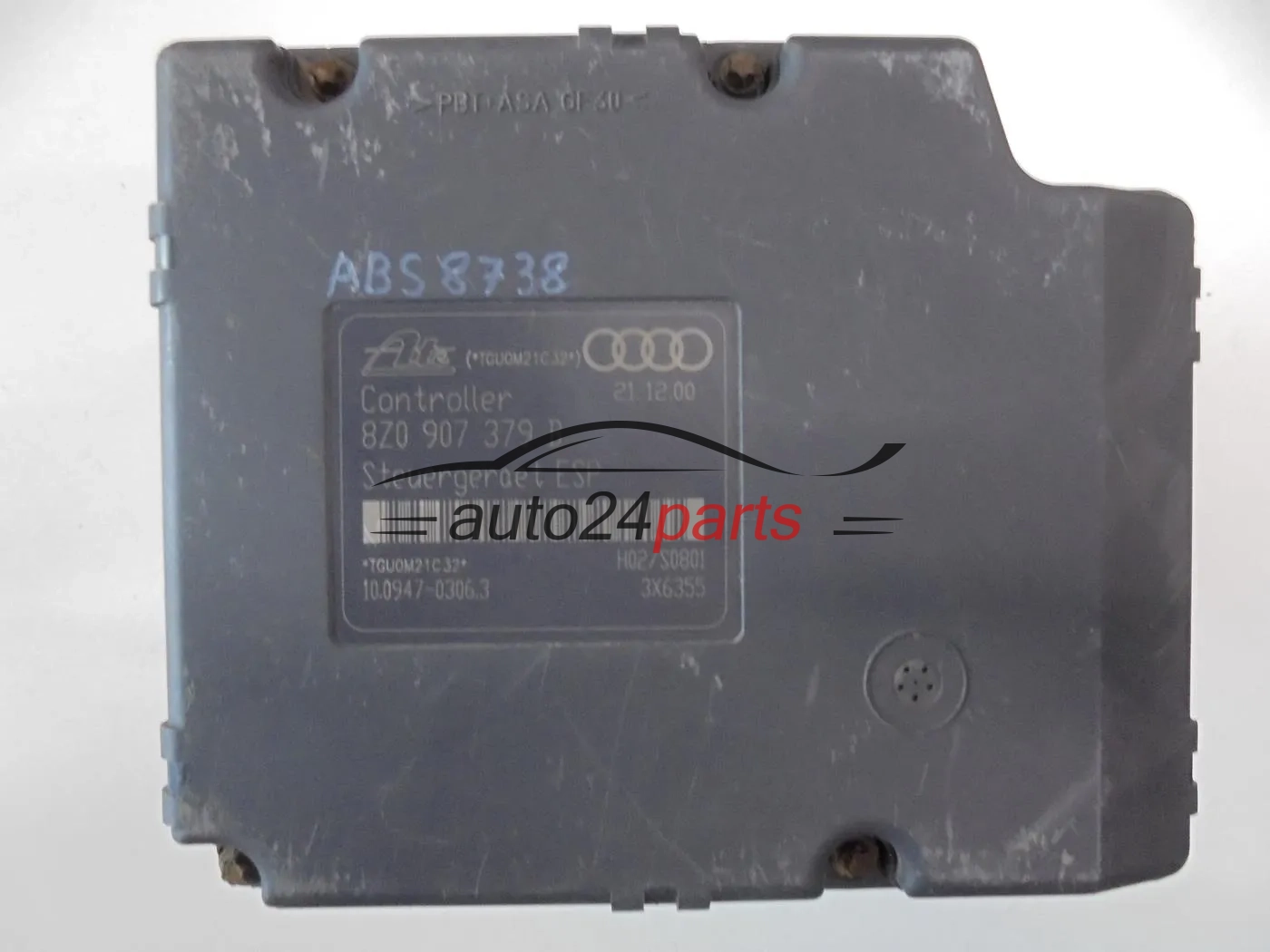

You will find the pump numbers on the silver foil sticker on the pump motor, and the module numbers on its label with the texts ‘Controller’ and ‘Steuergeraet ESP’. We have one more version of this pump with a different suffix in the shop, so check the letter C carefully.
Symptoms of an electronic or hydraulic failure
Look out for the following warning signs:
- the ABS warning light on the instrument panel,
- an internal control module fault during diagnostics,
- no connection between the diagnostic tool and the ABS module,
- the brake system warning light on.
Before buying, it is worth confirming the diagnosis: read the faults and inspect the wheel speed sensors, fuses, wiring and battery. After fitting, bleed the brakes; on many VW Group cars the control module also has to be coded with a diagnostic tool.
Customer questions – 8Z0614517C
| Which car is this assembly from? |
|---|
| From an Audi. We do not give the specific model, so match it by the numbers on both labels. |
| Is the part working and covered by a warranty? |
| Yes, it is a genuine, used, working assembly. The warranty period is listed in the product features table. |
| How can I be sure before ordering? |
| Send photos of the sticker on the pump motor and the module label, or give us your VIN – we will compare the details with this unit. |
| Is a matching ATE number enough? |
| Not always. The ATE number is worth checking, but the basis for selection is VAG number 8Z0 614 517 C together with the control module number. |
Rather than guessing, give us your VIN or send photos of the labels – we will verify the fit.
