A faulty transmission control module (TCM) most often causes limp mode with the gearbox stuck in one gear, harsh jolts when you select D or R, erratic gear changes, flashing PRND letters and a gearbox or engine warning light. However, the same symptoms are often caused by a low gearbox oil level, a weak battery, a poor earth or a faulty sensor. To test a transmission control module, start by checking the battery and reading the fault codes with a diagnostic tool that can talk to the gearbox control unit, then check the power supply, the connector, the oil and the live data. Below we explain the symptoms, the diagnostic steps and what the most common fault codes mean.

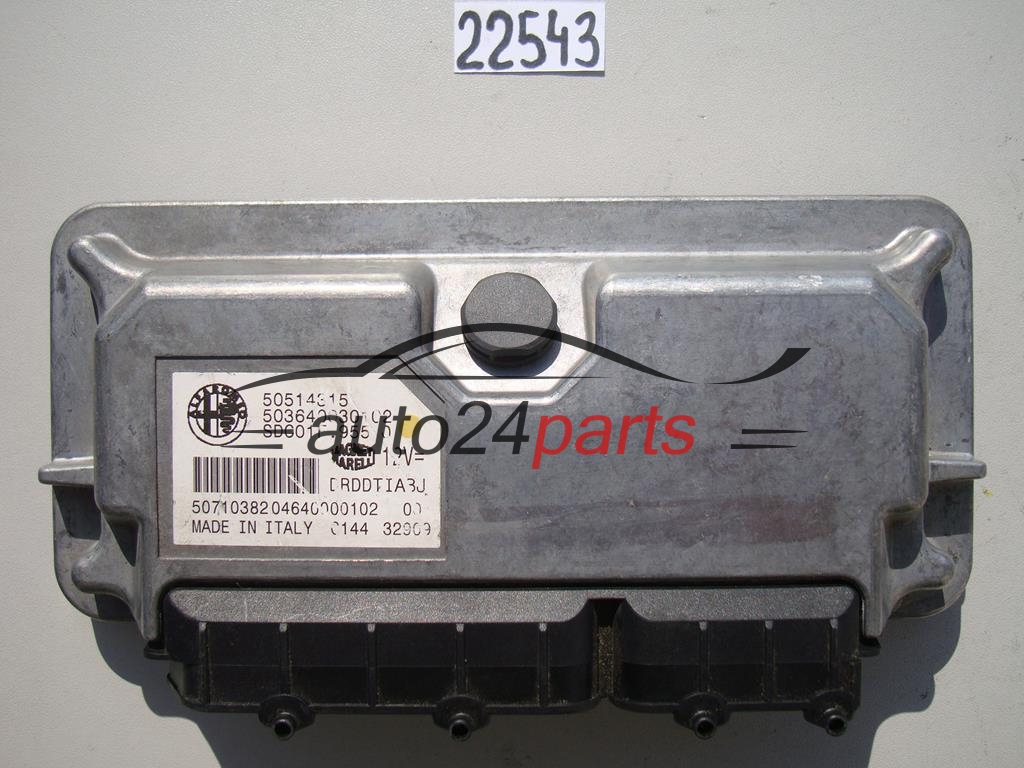

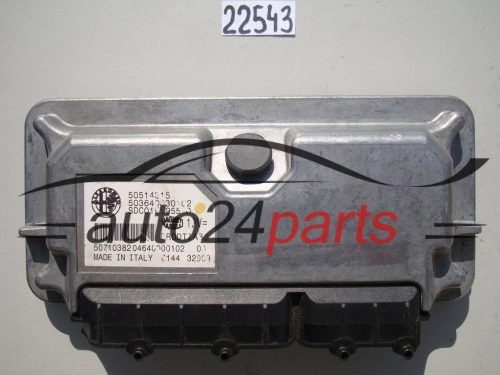

Engine control unit Alfa Romeo MiTo 1.4 50514315
Vendors's code: 50514315
Product code: 50514315
Barcode:
Code 39:
ISBN:
650,41 zł
Price
650,41 zł
800,00 zł
Price
800,00 zł
In stock
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Engine control unit Alfa Romeo MiTo 1.4 50514315
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
120,00 zł
-
shipping
(Poland)
from
120,00 zł
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Is engine control unit 50514315 a used original part?
Used Alfa Romeo engine control unit with number 50514315. Send us the numbers from the label on your control unit.
Engine control unit 50514315 for Alfa Romeo MiTo: how to match it by part numbers?
If the engine will not start or the engine warning light is on, one possible cause is the control unit. Control unit 50514315 for Alfa Romeo MiTo is a used original part, inspected before sale. The listing states that this control unit is for: Alfa Romeo MiTo. Engine given in the listing: 1.4.
Where to find the numbers on an engine control unit
The numbers as written in the listing and as a single string, the way catalogues list them:
- 50514315, car manufacturer's original number.
The full numbers matter, including their endings. If in doubt, send us a photo of your control unit.
Control unit variant
This listing is for a control unit in the following variant(s): Locked / Unlocked. We describe the differences between the variants (locked, unlocked, Virgin, IMMO OFF, Plug and Play, clone, full set) on the ECU preparation options page. Before buying, send us the numbers from the label and we will confirm which variant is available for that number.
What can point to an engine control unit failure
- the engine warning light comes on and does not go out,
- the diagnostic tester cannot connect to the control unit,
- the engine starts and immediately stalls,
- the housing or connector of the control unit shows signs of water ingress or corrosion.
Only diagnostics can confirm an engine control unit failure, so read the fault codes before buying. After replacement, the control unit may need to be programmed or adapted to the car.
Questions and answers
| Can I send a photo for a compatibility check? |
|---|
| Yes. Contact us and send a photo of the label on the original control unit, and we will help you check whether this part will fit. |
| Does this control unit fit the 1.4 engine? |
| According to the listing it does, but confirm this with the numbers from the original control unit, because a single model comes with different versions. |
| What should I do if the ending of my number is different? |
| The ending of a number often indicates a different version of the control unit, so do not order the part without confirmation. Send us the number from the label on your control unit. |
| What is the condition of this control unit? |
| It is an original recycled part in good condition, checked by us. Warranty details are in the product features table. |
Want to check before you buy? Send a photo of the sticker on your control unit and we will check that the numbers match.
