The automatic transmission control unit (often designated as TCU or TCM) is a crucial electronic component responsible for smooth and trouble-free gear shifting. Its failure, most often caused by overheating, short circuits, or water damage, results in jerking, an inability to shift gears, or the vehicle entering limp mode. Purchasing a new module at an authorized dealership is a massive expense, which is why replacing it with a fully functional, used original is the most reasonable solution.

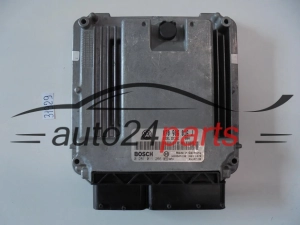

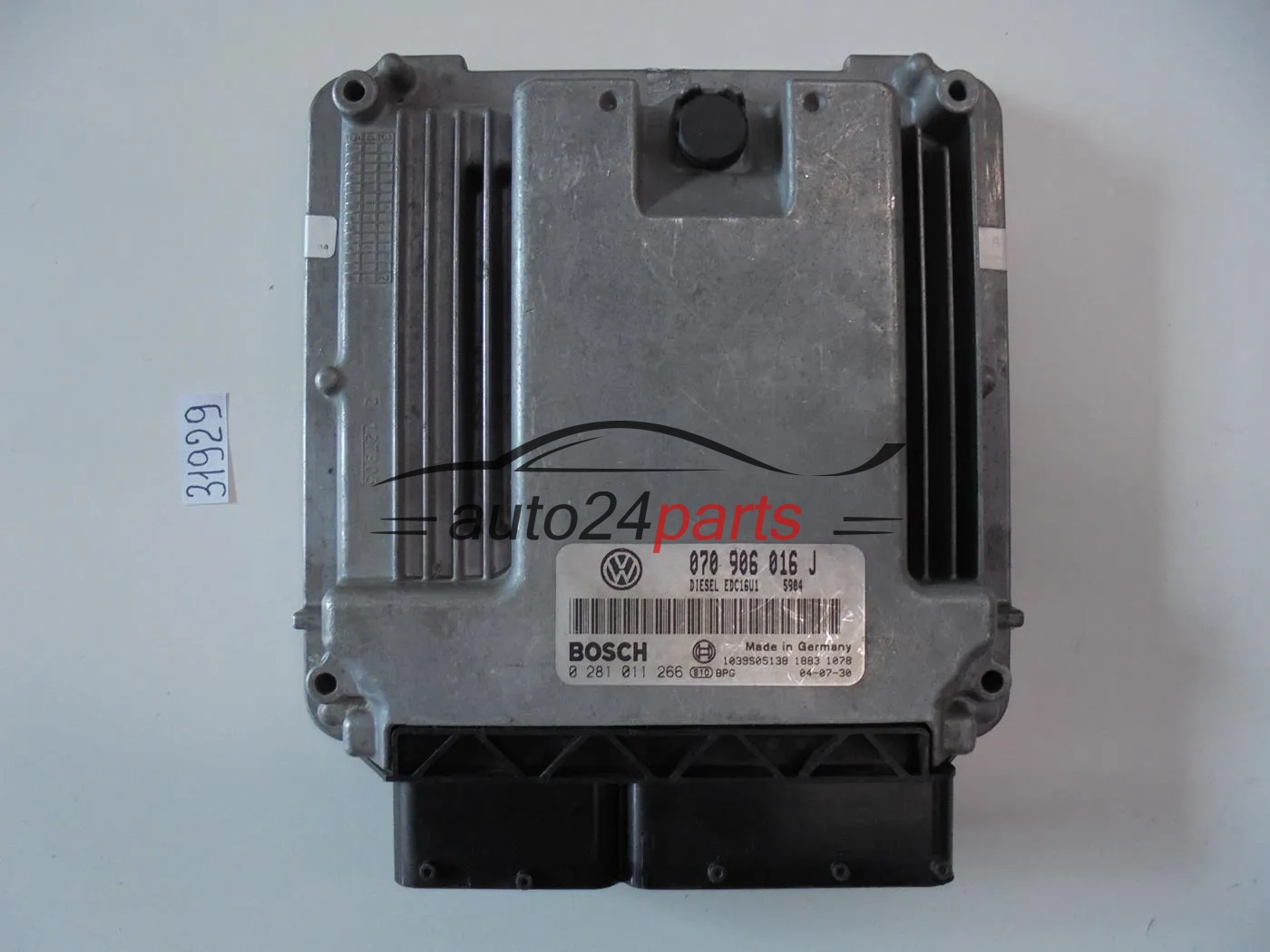

ECU Engine controller VOLKSWAGEN T5 0281011266 070906016J EDC16U1
Vendors's code: 070906016J
Product code: 0281011266
Barcode:
Code 39:
ISBN:
€284.55
Price
€284.55
€350.00
Price
€350.00
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
ECU Engine controller VOLKSWAGEN T5 0281011266 070906016J EDC16U1
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
EDC16 ECU 070906016J 0281011266 for Volkswagen Transporter T5
Tested engine control unit for the Volkswagen Transporter T5, fully checked and available for immediate dispatch with fast international shipping options.
Volkswagen T5 engine control unit 0281011266 / 070906016J EDC16 – FAQ
1. Which vehicle is the 070906016J engine control unit compatible with?
The 070906016J engine control unit was installed in selected Volkswagen T5 models equipped with diesel engines. Before purchasing, it is recommended to verify compatibility using the part number displayed on the ECU label. The part number 070 906 016 J should match the unit originally fitted to the vehicle.
2. What does the EDC16 number 0281011266 mean?
The number 0281011266 is the manufacturer's identification number assigned to the engine management system. It allows the ECU to be accurately matched to a specific vehicle configuration. When searching for a replacement or used unit, it is advisable to compare both 0281011266 and 070906016J.
3. What symptoms may indicate a fault in the 0281011266 control unit?
A defective engine control unit may cause starting issues, loss of diagnostic communication, irregular engine operation, or various electronic fault codes. In the case of the 0281011266 EDC16, a proper diagnosis should be carried out before replacement to rule out wiring or electrical system problems.
4. Does the Volkswagen T5 EDC16 control unit require programming after installation?
In many cases, the EDC16 070906016J control unit must be prepared to work with the vehicle’s immobiliser system and equipment configuration. The required procedure depends on the vehicle version and software installed. Before installation, it is advisable to check whether adaptation or data cloning is necessary.
5. Why is it important to search using both numbers: 070906016J and 0281011266?
Using both references 070906016J and 0281011266 increases the likelihood of finding the correct engine control unit for a Volkswagen T5. These numbers identify a specific ECU version and help avoid confusion with similar EDC16 modules used in other applications.
