Engine Control Unit Volkswagen Golf Sportsvan 1.6 TDI Delphi DCM6.2V 04L907445B 28444729
Vendors's code: 28444729
Product code: 28444729
Barcode:
Code 39:
ISBN:
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
How does the 04L907445B / 28444729 ECU differ from the version numbered 28445556?
Both modules have the same VW number 04L907445B but different Delphi numbers – 28444729 and 28445556. We sell this used, fully working unit from a 2014 Golf Sportsvan 1.6 TDI in the locked version only.

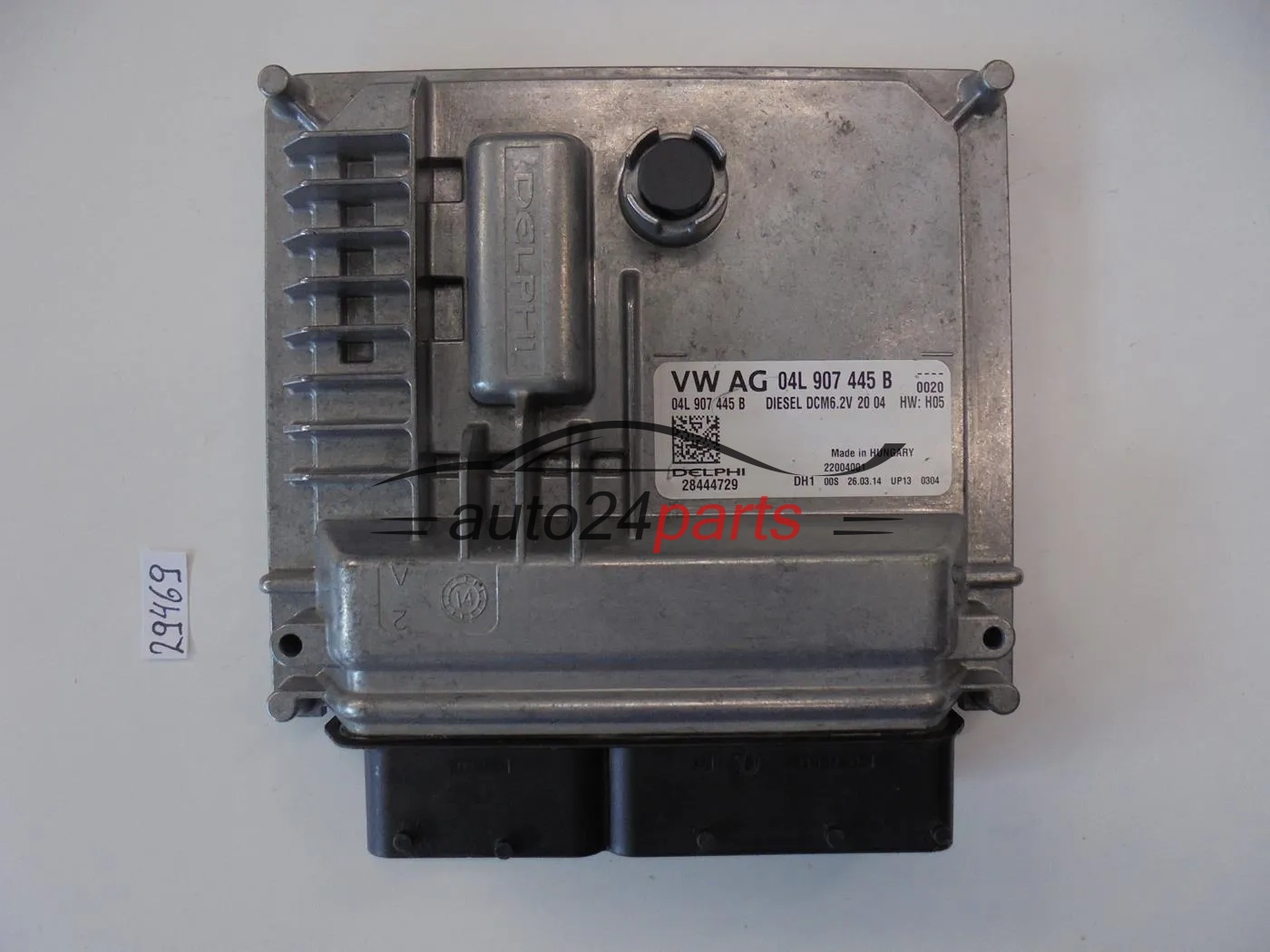

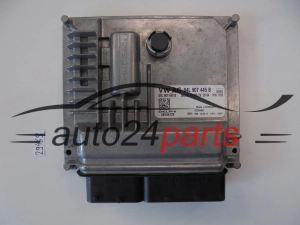

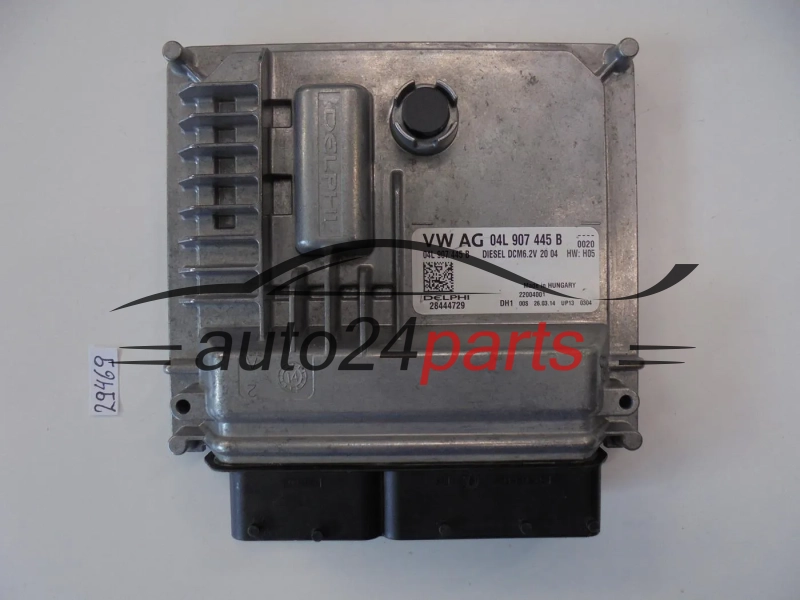

Engine Control Unit Volkswagen Golf Sportsvan 1.6 TDI Delphi DCM6.2V 04L907445B 28444729
The 2014 Golf Sportsvan 1.6 TDI uses a Delphi engine control unit from the DCM6.2V family. This unit has Delphi number 28444729 and Volkswagen number 04L907445B. The module manages injection and boost on the diesel engine, and when it fails the car usually cannot be started.
How to identify this ECU
- 04L907445B – Volkswagen part number, version B
- 28444729 – Delphi number
- DCM6.2V – Delphi ECU family
The same VW number may appear with different Delphi numbers. Compare both – if your module has 28445556, contact us before buying.
ECU fault symptoms
- no start with a healthy battery and starter motor,
- engine warning light and limp mode,
- no communication with the DCM6.2V module,
- engine misfiring with no injector fault.
First check the connector, earths and power supply – this quickly rules out the simplest causes. Only when they are fine is it worth considering replacing the ECU.
Locked version only
We sell the 04L907445B / 28444729 ECU locked only. It holds the data and immobiliser from the previous vehicle, so it is intended for workshops that will program and adapt it to the car themselves. We do not prepare it before dispatch and do not offer an unlocked or IMMO OFF version of it. If you do not have access to a workshop with the right equipment, contact us before ordering.
The other options for our ECUs are described on the engine control unit options page.
Questions and answers
| Can I buy this ECU unlocked? |
|---|
| No. We offer this unit in the locked version only. |
| Are 28444729 and 28445556 interchangeable? |
| They share a VW number but have different Delphi numbers. Confirm compatibility with us before buying. |
| Will the engine start straight after fitting? |
| No, the ECU must be programmed and adapted by a workshop. |
| What condition is the module in? |
| Used, fully working, in good condition. You will find the warranty period in the product features table. |
Questions about matching: contact@auto24parts.com.
