The automatic transmission control unit (often designated as TCU or TCM) is a crucial electronic component responsible for smooth and trouble-free gear shifting. Its failure, most often caused by overheating, short circuits, or water damage, results in jerking, an inability to shift gears, or the vehicle entering limp mode. Purchasing a new module at an authorized dealership is a massive expense, which is why replacing it with a fully functional, used original is the most reasonable solution.
Engine Control Unit Volkswagen, Seat SIM2K-IB 06A906070D 5WY53290D
Vendors's code: 5WY53290D
Product code: 5WY53290D
Barcode:
Code 39:
ISBN:
€243.90
Price
€243.90
€300.00
Price
€300.00
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Engine Control Unit Volkswagen, Seat SIM2K-IB 06A906070D 5WY53290D
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
What does the number 06A906070D on the SIM2K-IB ECU mean?
It is the VW part number which, together with manufacturer number 5WY53290D, describes a specific version of the unit. The ECU is used and in working order, fitted to Volkswagen and Seat models with petrol engines.

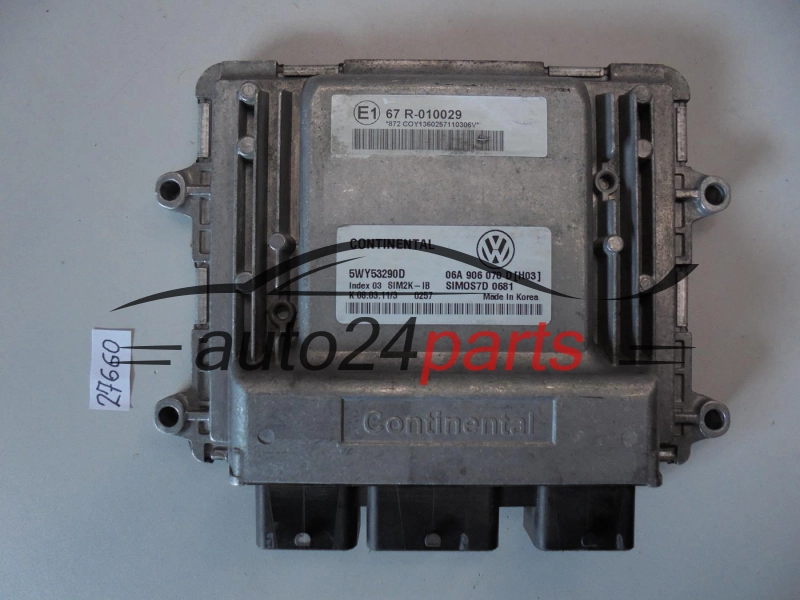

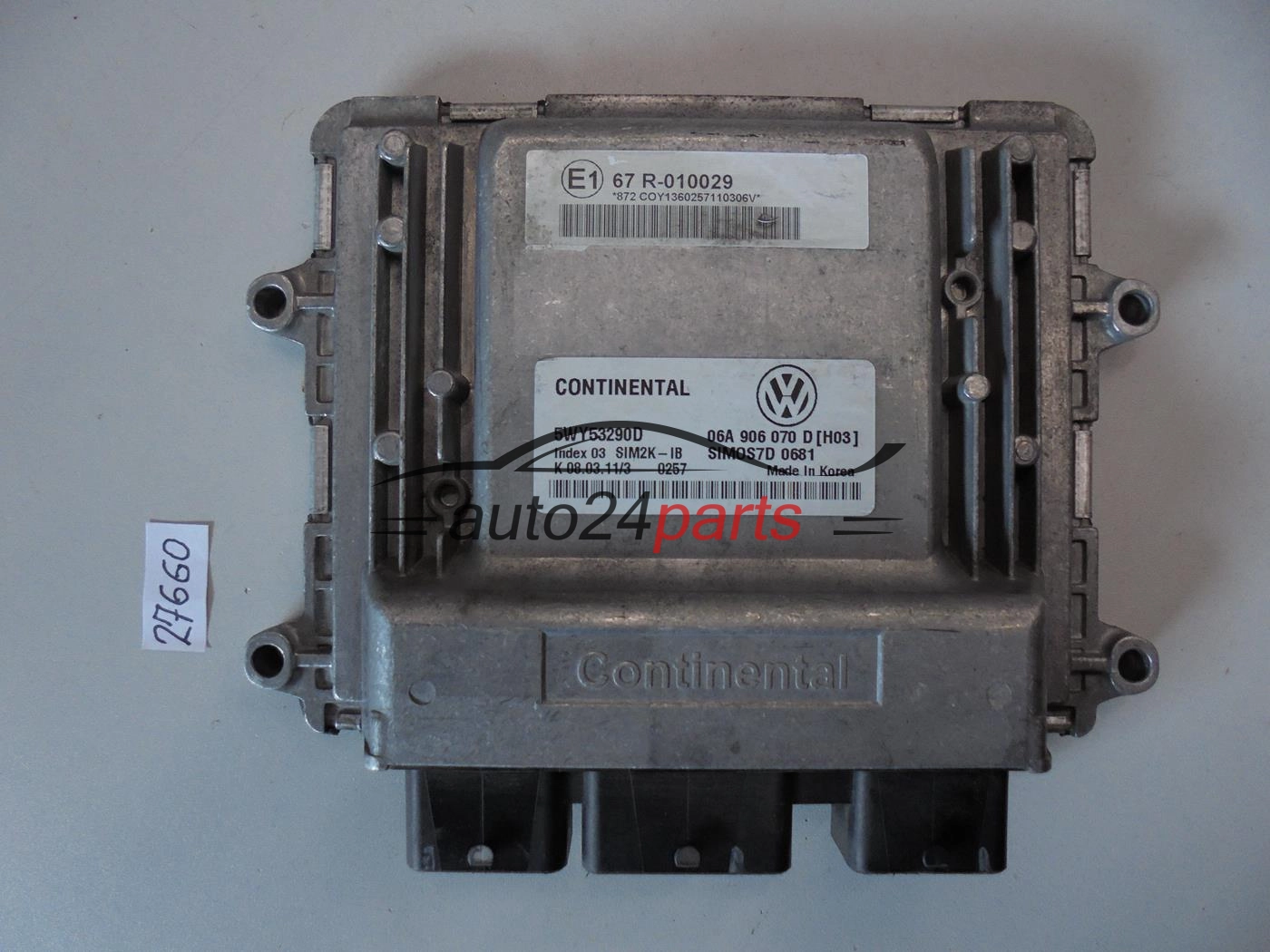

Engine Control Unit Volkswagen, Seat SIM2K-IB 06A906070D 5WY53290D
The SIM2K-IB designation identifies the ECU family, and VW number 06A906070D its version. The unit runs the petrol engine in Volkswagen and Seat cars: based on sensor signals, it controls injection and ignition. Number 5WY53290D is the ECU manufacturer's number, shown on the same label.
Identifying the ECU
- 06A906070D – VW part number
- 5WY53290D – ECU manufacturer number
- SIM2K-IB – ECU family
The last letter matters in both numbers: D in the VW number and D in 5WY53290D. Compare them with the label, as a unit that differs only in its suffix may have different software.
Symptoms of a faulty unit
- the engine suddenly cuts out and won't restart,
- poor throttle response or running in limp mode,
- a series of sensor faults, although the sensors turn out to be fine when checked,
- damage after a voltage surge, e.g. after an incorrect jump start.
The first thing to check is the ECU's fuses and main relay.
Versions: locked and unlocked
If you choose the locked version, you receive a unit with the previous vehicle's data and immobiliser – unlocking, programming and matching are then down to your workshop. With the unlocked version, we take care of the preparation and usually complete it within 1–2 working days.
There are several methods (PIN / CAR PASS, Virgin, IMMO OFF, auto programming, cloning), but not all of them can be used on every ECU – it depends on the part number, software and immobiliser. Please ask us before placing your order. Description of the options: ECU preparation options.
Questions and answers
| Is SIM2K-IB a part number? |
|---|
| No, it is the ECU family designation. To match a specific unit, use the numbers 06A906070D and 5WY53290D. |
| Do I need to do anything with my existing ECU before fitting the 06A906070D? |
| That depends on the preparation method – some, such as cloning, require your current unit. We'll agree what is needed before you buy. |
| What condition will the ECU arrive in? |
| As a used part, in working order and in good condition. You will find the warranty period in the product features table. |
For help with matching and options, email contact@auto24parts.com – a photo of your ECU's label is all we need.
