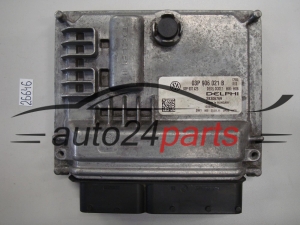

Engine Control Unit Volkswagen Delphi DCM3.7 03P906021B 28306769
Vendors's code: 28306769
Product code: 03P906021B
Barcode:
Code 39:
ISBN:
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Where can I read the 03P906021B number and the Delphi number on the module?
You will find both numbers – VW 03P906021B and Delphi 28306769 – on the label on the ECU casing. You can also read the VW number with a diagnostic tool.
Engine Control Unit Volkswagen Delphi DCM3.7 03P906021B 28306769
This ECU is not made by Bosch: it is a Delphi module from the DCM3.7 family, an ECU designed for diesel engines. In a Volkswagen it manages fuel injection, starting and engine operation, and logs fault codes. The VW part number is 03P906021B and the Delphi manufacturer's number is 28306769. This unit is used, working and in good condition.

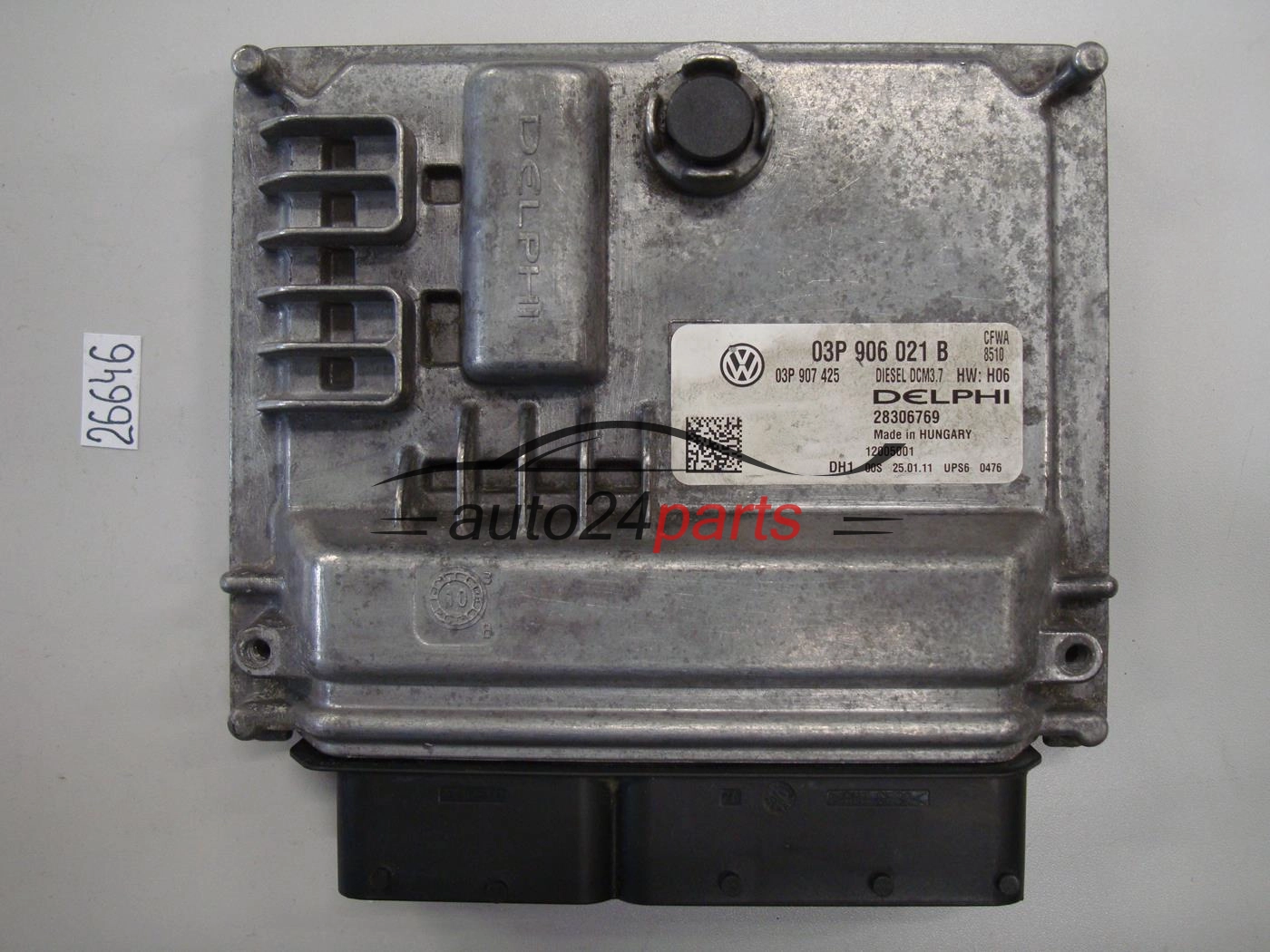

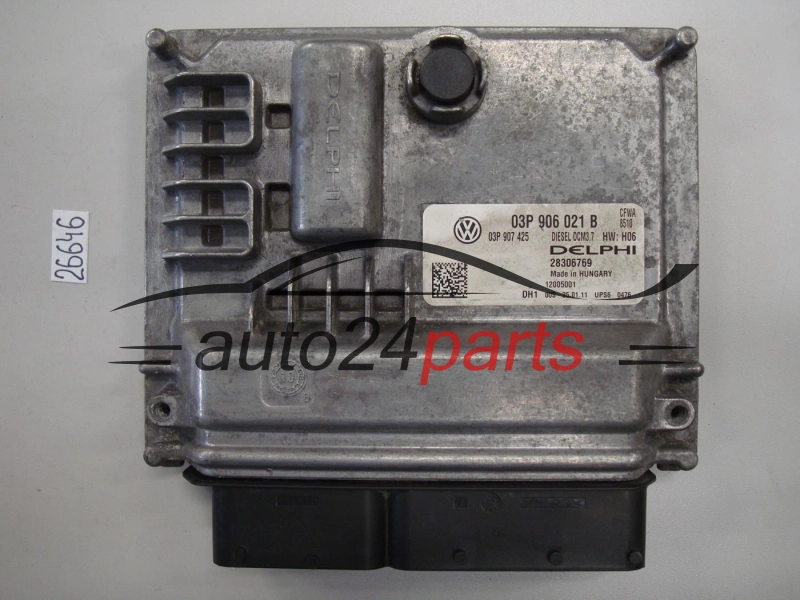

Numbers on the label
- 03P906021B – VW part number
- 28306769 – Delphi manufacturer's number
- DCM3.7 – Delphi ECU family
The letter B at the end of the VW number indicates the software or hardware version. A 03P906021 module with a different letter may differ, so compare the full number together with the Delphi number.
When the ECU may be faulty
- the engine will not fire despite a working fuel supply,
- restricted power and the engine warning light on,
- no response from the module during diagnostics,
- recurring internal ECU faults.
Start by checking the earths, power supply and connector, and only then diagnose the module itself. It is worth keeping the fault codes you read – they will help when talking to the workshop.
Unlocked or locked version?
Not every preparation method – PIN / CAR PASS, Virgin, IMMO OFF, auto programming, clone – is possible for the Delphi DCM3.7 ECU; it depends on the number, software and immobiliser. So please ask us before buying.
The unlocked version is prepared before dispatch, usually within 1–2 working days. The locked version holds the data and immobiliser of the car it came from and is intended for workshops that unlock, program and adapt the module themselves. Description of the options: ECU preparation options.
Questions and answers
| Will a Bosch ECU replace this Delphi module? |
|---|
| Do not assume so. Match it by VW number 03P906021B and the Delphi number. |
| What does DCM3.7 mean? |
| It is the designation of a family of Delphi ECUs for diesel engines. |
| How long does it take to prepare the unlocked version? |
| Usually 1–2 working days. |
| Condition and warranty? |
| Used, working, in good condition. You will find the warranty period in the product features table. |
Send questions about the Delphi 03P906021B ECU to contact@auto24parts.com.
