A faulty transmission control module (TCM) most often causes limp mode with the gearbox stuck in one gear, harsh jolts when you select D or R, erratic gear changes, flashing PRND letters and a gearbox or engine warning light. However, the same symptoms are often caused by a low gearbox oil level, a weak battery, a poor earth or a faulty sensor. To test a transmission control module, start by checking the battery and reading the fault codes with a diagnostic tool that can talk to the gearbox control unit, then check the power supply, the connector, the oil and the live data. Below we explain the symptoms, the diagnostic steps and what the most common fault codes mean.
Engine control unit Alfa Romeo 145 146 2.0 16V Bosch 00465251680 0261204478
Vendors's code: 00465251680
Product code: 2491-56531
Barcode:
Code 39:
ISBN:
€101.63
Price
€101.63
€125.00
Price
€125.00
Select a product option:
Individual variants may differ in price
product option
Important: Depending on the ECU type and vehicle model, not all of the options listed below may be available.
To select the correct option for your vehicle and ECU, please contact us before purchasing:
contact@auto24parts.com
1. Locked
This option is intended for professional workshops with the required specialist equipment and technical knowledge.
The ECU has been removed from a vehicle intended for recycling and still contains the immobilizer data and other information from the previous vehicle. Before it can be used in another car, it must be unlocked and then programmed using specialist automotive diagnostic equipment.
2. Unlocked
Several preparation methods may be available. The possible options depend on the ECU type, vehicle model and immobilizer system. Please contact us before purchasing, as some preparation methods are not available for every ECU.
Our electronics specialists can prepare the ECU in one of the following ways:
a) ECU with PIN code (Car Pass)
The PIN code is supplied, but programming with a suitable diagnostic tool is still required. After installing the ECU, it must be reset using the supplied PIN code and then programmed to the vehicle’s immobilizer system.
b) VIRGIN ECU
The data from the previous vehicle is removed and the ECU is restored to a clean, factory-like state. After installation, it must be programmed to the vehicle using a compatible specialist diagnostic tool. Unless another preparation method is specified in the product description, this is the standard unlocking option for most of our ECUs.
c) Plug & Play – IMMO OFF
The immobilizer function is disabled in the ECU. After installation, the engine can start without additional immobilizer programming. Please note that the vehicle will no longer have an active immobilizer function, and an immobilizer warning light or fault code may remain, depending on the vehicle model.
d) Plug & Play – Automatic Programming
After installation, the ECU automatically learns and saves the required vehicle data. No additional programming is normally required.
e) Plug & Play – 1:1 Clone
The data from your original ECU is copied to another fully functional ECU. The cloned unit is then ready for installation without additional programming.
You must send us your original ECU so that we can transfer its data to the replacement unit.
The original ECU must have working communication with the vehicle, a diagnostic tool or our programming equipment. If the required data cannot be read, a complete 1:1 clone may not be possible.
3. Complete Plug & Play Set
A complete matched set containing the ECU, immobilizer components and all other parts required to start the vehicle without additional programming. All components supplied in the set must be installed in the vehicle.
Important:
Dispatch time depends on the selected option. If an unlocked or specially prepared version is ordered, the preparation service usually requires an additional 1–2 business days.
Ask about the product

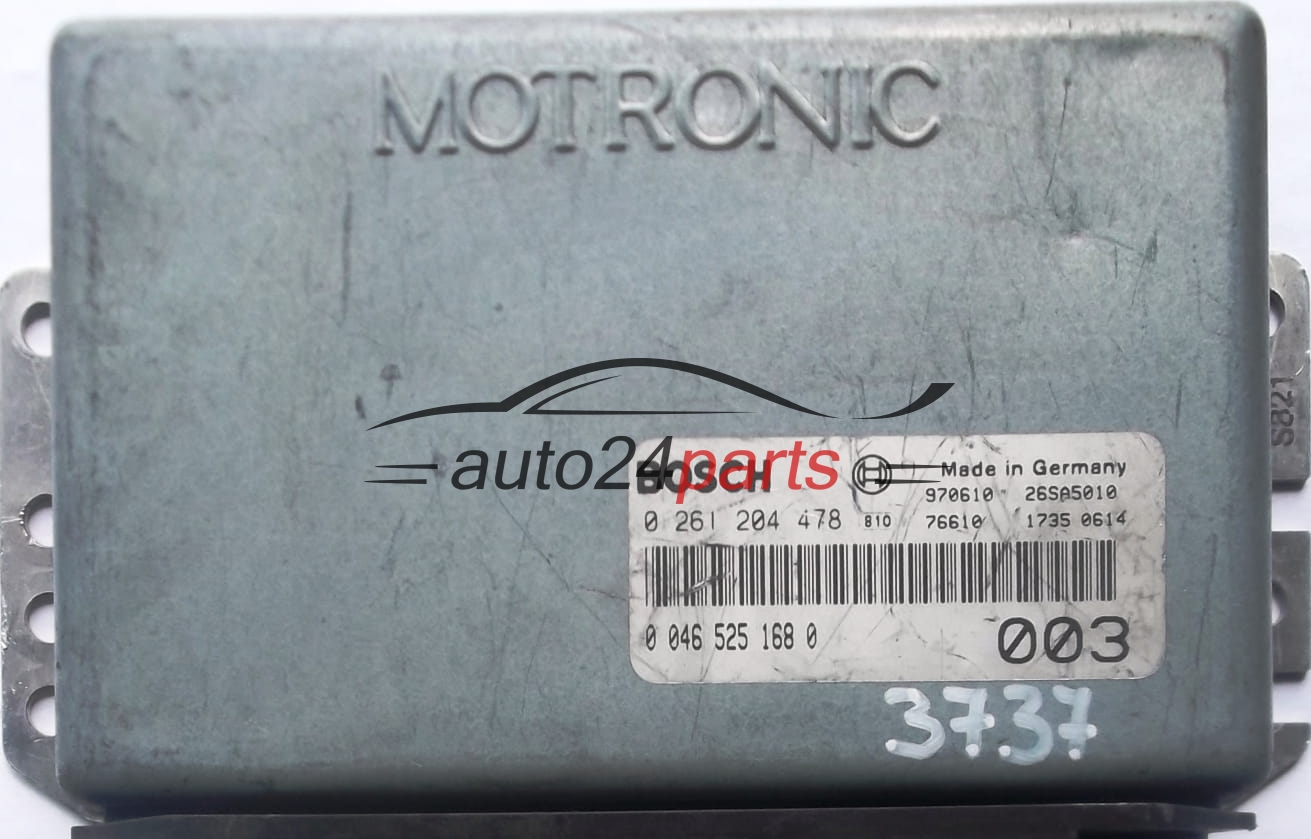

Engine control unit Alfa Romeo 145 146 2.0 16V Bosch 00465251680 0261204478
Administratorem danych osobowych jest Auto24parts. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Shipping
from
€30.00
-
shipping
(Poland)
from
€30.00
-
shipping
(Poland)
Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
What does number 00465251680 on an engine control unit mean?
Engine control unit 00465251680, used and inspected. Compare the numbers with the original in your car.
Is engine control unit 00465251680 the right part for your Alfa Romeo?
This control unit is made by Bosch. Engine control unit 00465251680 is used and original, and it is matched by its numbers, not by the car model alone. The listing states that this control unit is for: Alfa Romeo 145 146. Engine given in the listing: 2.0 16V. The listing also gives the markings 003. They help tell the control unit versions apart, but the full part number is what decides compatibility.
Numbers to compare
You will find the numbers on the label of the control unit, while catalogues list them as a single string:
- 00465251680, car manufacturer's original number,
- 0261204478, control unit manufacturer's number.
The ending of a number often indicates a different version of the control unit, so compare every character. If you are in doubt, write to us before buying.
Control unit variant
This listing is for a control unit in the following variant(s): Locked / Unlocked. We describe the differences between the variants (locked, unlocked, Virgin, IMMO OFF, Plug and Play, clone, full set) on the ECU preparation options page. Before buying, send us the numbers from the label and we will confirm which variant is available for that number.
Faults that call for checking the control unit
- the engine will not start although the starter motor works and there is fuel,
- the car loses power or goes into limp mode,
- fuel consumption rises for no obvious reason,
- the engine jerks when accelerating.
Before buying a control unit, read the fault codes with a diagnostic tester and check the power supply, the earth connections and the connector. Damaged sensors, wiring or fuses can cause similar symptoms, and in that case replacing the control unit will not help.
Questions and answers
| Where do I find number 00465251680 on my control unit? |
|---|
| The numbers are on a sticker or printed on the housing of the control unit. Take a close-up photo of the label in good light so that all the characters can be read. |
| What do the markings 003 in the listing mean? |
| They are markings of the version or type of the control unit. They help tell the units apart, but the full part number is what decides compatibility. |
| How should I prepare for fitting the control unit? |
| Disconnect the battery, check the connector and the wiring, and after fitting read and clear the fault codes with a tester. Configuration is best carried out in a garage with suitable equipment. |
| What condition is this control unit in? |
| It is a used original part, inspected before sale. You will find the warranty period in the product features table. |
If the numbers on your control unit differ from those given, write to us. We will check whether the right version is available in our range.
