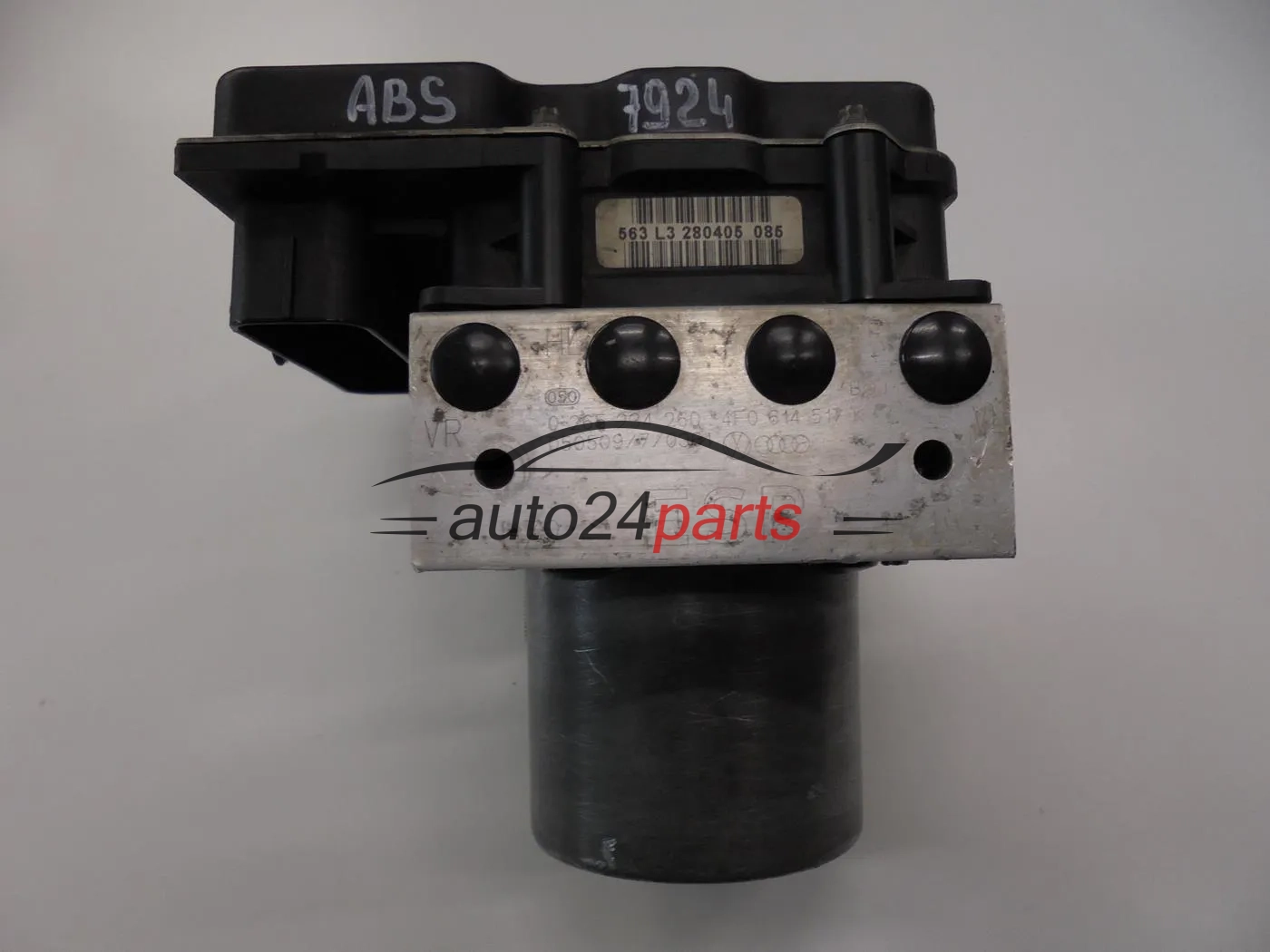

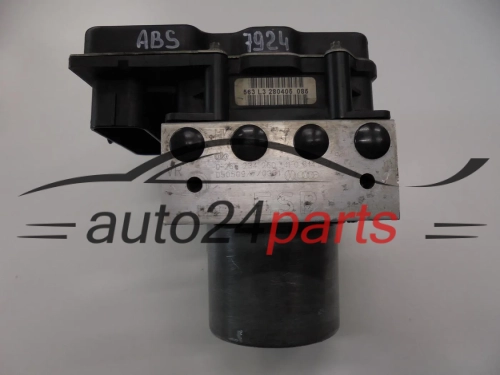

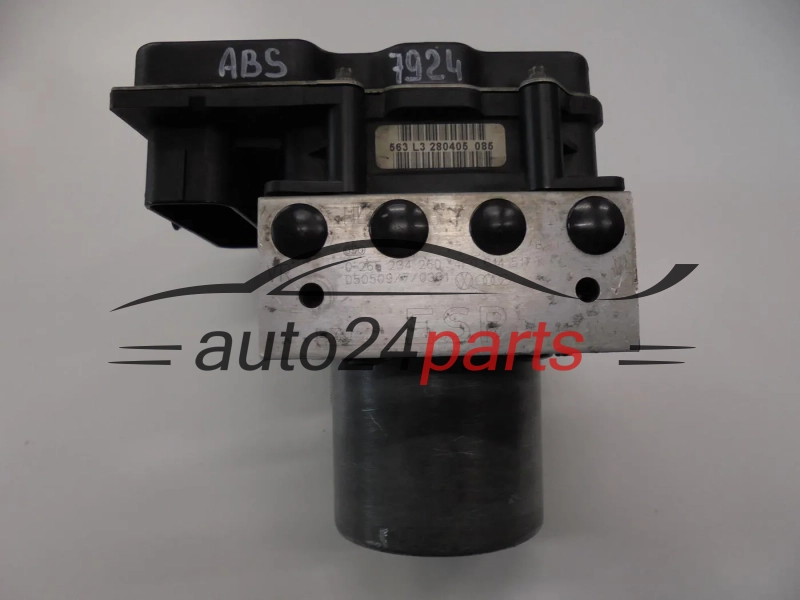

ABS pump and control module Audi Bosch 4F0614517K 0265234260 4F0910517K 0265950429

  • Part Type ABS pump with control module
  • Vehicle Make and Model Audi A6
  • OEM Part Number 4F0 614 517 K / 4F0614517K
  • ABS Pump Part Number 0 265 234 260 / 0265234260
  • ABS Pump Part Number 4F0 910 517 K / 4F0910517K
  • ABS Pump Part Number 0 265 950 429 / 0265950429
  • Warranty 6-month warranty
  • Testing & Inspection Device thoroughly inspected and tested by a certified technician
  • Condition Used, working, in good condition
Bosch
with VAT without VAT
Price €400.00
Availability:
product-availability-module In stock
pcs.

Fast Delivery

DHL Express - 30 euro

6 Month Warranty

Returns Possible up to 14 days

Secure payments

Stripe - Paypal - Credit Card
Ask about the product
Shipping from €30.00 - shipping (Poland)

Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price


PRODUCT DETAILS

  • Part Type ABS pump with control module
  • Vehicle Make and Model Audi A6
  • OEM Part Number 4F0 614 517 K / 4F0614517K
  • ABS Pump Part Number 0 265 234 260 / 0265234260
  • ABS Pump Part Number 4F0 910 517 K / 4F0910517K
  • ABS Pump Part Number 0 265 950 429 / 0265950429
  • Warranty 6-month warranty
  • Testing & Inspection Device thoroughly inspected and tested by a certified technician
  • Condition Used, working, in good condition

ABS pump 4F0614517K - how do you check it is the right part?

Compare number 4F0 614 517 K and control module marking 4F0 910 517 K with those in your car. This Bosch unit, removed from an Audi, works properly although it is used - and only matching numbers decide the fit.

Go to full description

4F0614517K and 4F0910517K - Bosch ABS unit marked ‘ESP’

This part carries four numbers with different roles. The markings 4F0614517K and 4F0910517K were assigned by the VAG Group - the first describes the hydraulic unit, the second the ABS/ESP control module. Bosch, as the manufacturer, added its own numbers: 0 265 234 260 for the block and 0 265 950 429 for the module. When ordering a part for an Audi, go by the VAG markings; the Bosch ones serve to confirm the version.

Four numbers to compare

  • 4F0614517K - VAG number of the ABS pump (hydraulic unit), written: 4F0 614 517 K
  • 0265234260 - Bosch number of the hydraulic block (pump) - marking 0 265 234 260 stamped in the block
  • 4F0910517K - VAG number of the ABS/ESP control module, marked 4F0 910 517 K

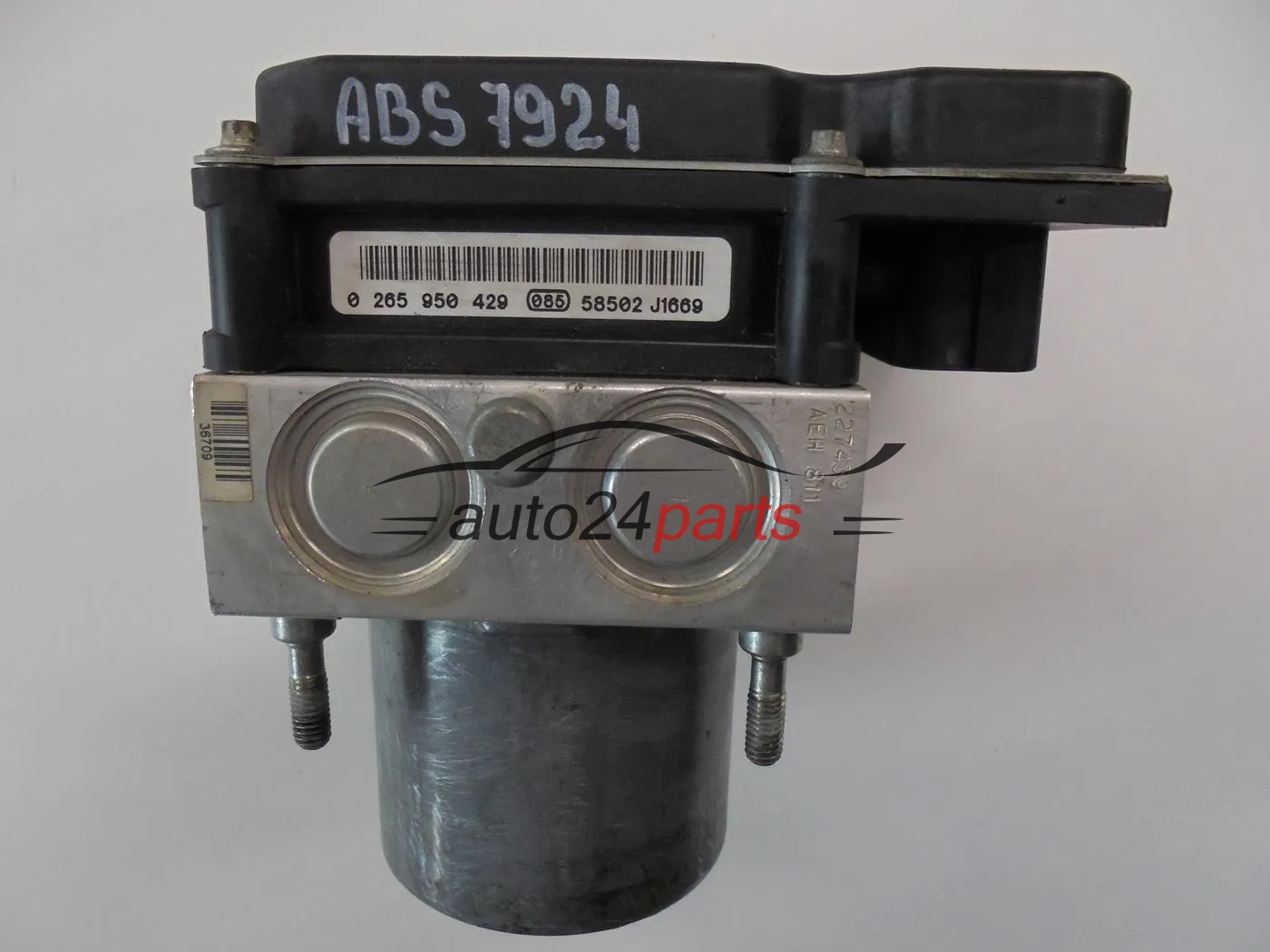

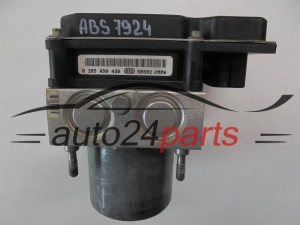

  • 0265950429 - Bosch number of the control module, read from the label as 0 265 950 429

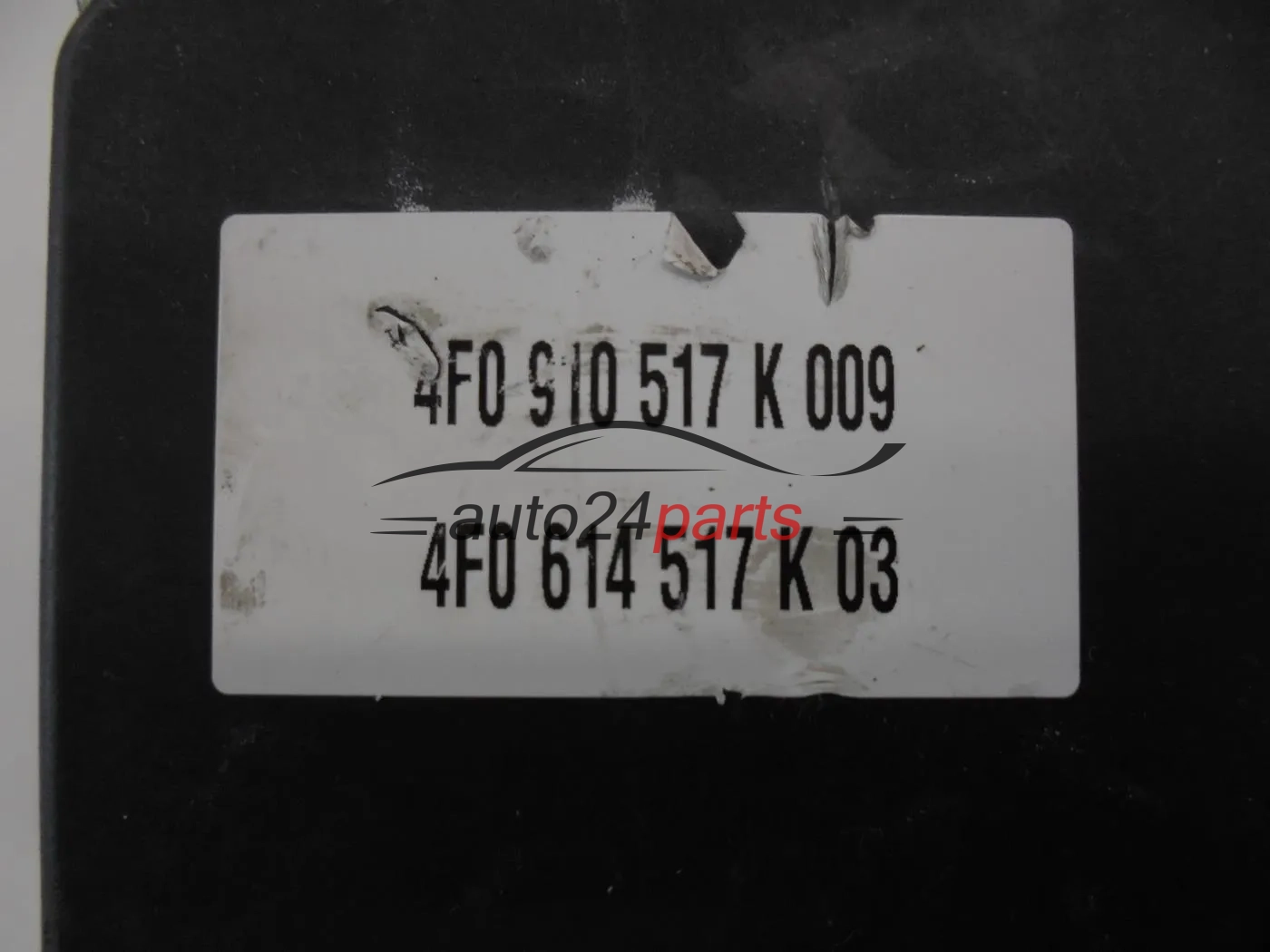

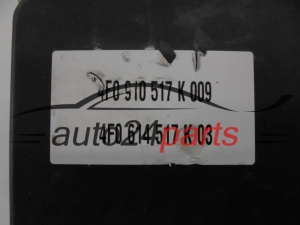

The pump markings are stamped into the aluminium block, and a white paper sticker with the VAG numbers has also been applied to the body; in the photos some of the stamped characters are covered by a watermark. The control module label bears the text ‘ESP’. As the shop has 8 variants with a different suffix, make sure the final letter K is the same as on your part.

When the Bosch unit starts to fail

Typical signs of a damaged ABS unit are:

  • ABS and ESP/ASR inactive while driving,
  • a hydraulic valve fault code in the module,
  • an ABS warning light that stays on after the key is turned.

Start the diagnosis with a scan tool, because similar messages are also generated by a damaged wheel sensor, a blown fuse, a partly torn wire or a drained battery. Once the block is fitted, the brakes have to be bled, control module 4F0 910 517 K generally coded with a diagnostic tool and, with ESP, the steering angle sensor usually calibrated.

Questions and answers - 4F0614517K

Does pump 4F0 614 517 K fit every Audi?
No - only a car fitted with a pump and control module with identical markings. We deliberately do not list models.
What shape is this unit in?
Working, used, genuine Bosch. The warranty period is given in the product features table.
Do I get the control module as well?
Yes. Module 4F0 910 517 K remains attached to the block and is part of the listing.
What do Bosch numbers 0 265 234 260 and 0 265 950 429 tell me?
The first, starting with 0 265 2…, relates to the hydraulic block, and the second, from the 0 265 9… series, to the control module. They are the component manufacturer's numbers, complementing the VAG numbers.

Send us a photo of the white sticker and control module label from your car, or your VIN - we will let you know whether the numbers match.
