ABS pump and control module Audi Bosch 4F0614517T 0265235100 4F0910517AC 0265950556

  • Part Type ABS pump with control module
  • Vehicle Make and Model Audi
  • OEM Part Number 4F0 614 517 T / 4F0614517T
  • ABS Pump Part Number 0 265 235 100 / 0265235100
  • ABS Pump Part Number 4F0 910 517 AC / 4F0910517AC
  • ABS Pump Part Number 0 265 950 556 / 0265950556
  • Warranty 6-month warranty
  • Testing & Inspection Device thoroughly inspected and tested by a certified technician
  • Condition Used, working, in good condition
Bosch
with VAT without VAT
Price €150.00
Availability:
product-availability-module In stock
pcs.

Fast Delivery

DHL Express - 30 euro

6 Month Warranty

Returns Possible up to 14 days

Secure payments

Stripe - Paypal - Credit Card
Ask about the product
Shipping from €30.00 - shipping (Poland)

Price 30 euros applies shipments to 5 kg on worldwide. Above this weight, please contact us by email to check price


PRODUCT DETAILS

  • Part Type ABS pump with control module
  • Vehicle Make and Model Audi
  • OEM Part Number 4F0 614 517 T / 4F0614517T
  • ABS Pump Part Number 0 265 235 100 / 0265235100
  • ABS Pump Part Number 4F0 910 517 AC / 4F0910517AC
  • ABS Pump Part Number 0 265 950 556 / 0265950556
  • Warranty 6-month warranty
  • Testing & Inspection Device thoroughly inspected and tested by a certified technician
  • Condition Used, working, in good condition

What should you look for on the label of ABS pump 4F0614517T?

Above all, VAG number 4F0 614 517 T and control module number 4F0 910 517 AC. We sell this Bosch unit, intended for Audi, as used and in working order, and we base the match on its markings.

Go to full description

Bosch 0265235100 - ABS pump 4F0614517T with control module

It is easy to make a mistake with this unit, because our shop has another 8 listings with the same base number and a different letter. The ‘T’ in 4F0 614 517 T denotes a specific version of the hydraulic unit, and a different suffix may mean a different system version. That is why you should compare the whole number - suffix included - as well as module number 4F0 910 517 AC.

Markings from the stickers - full list

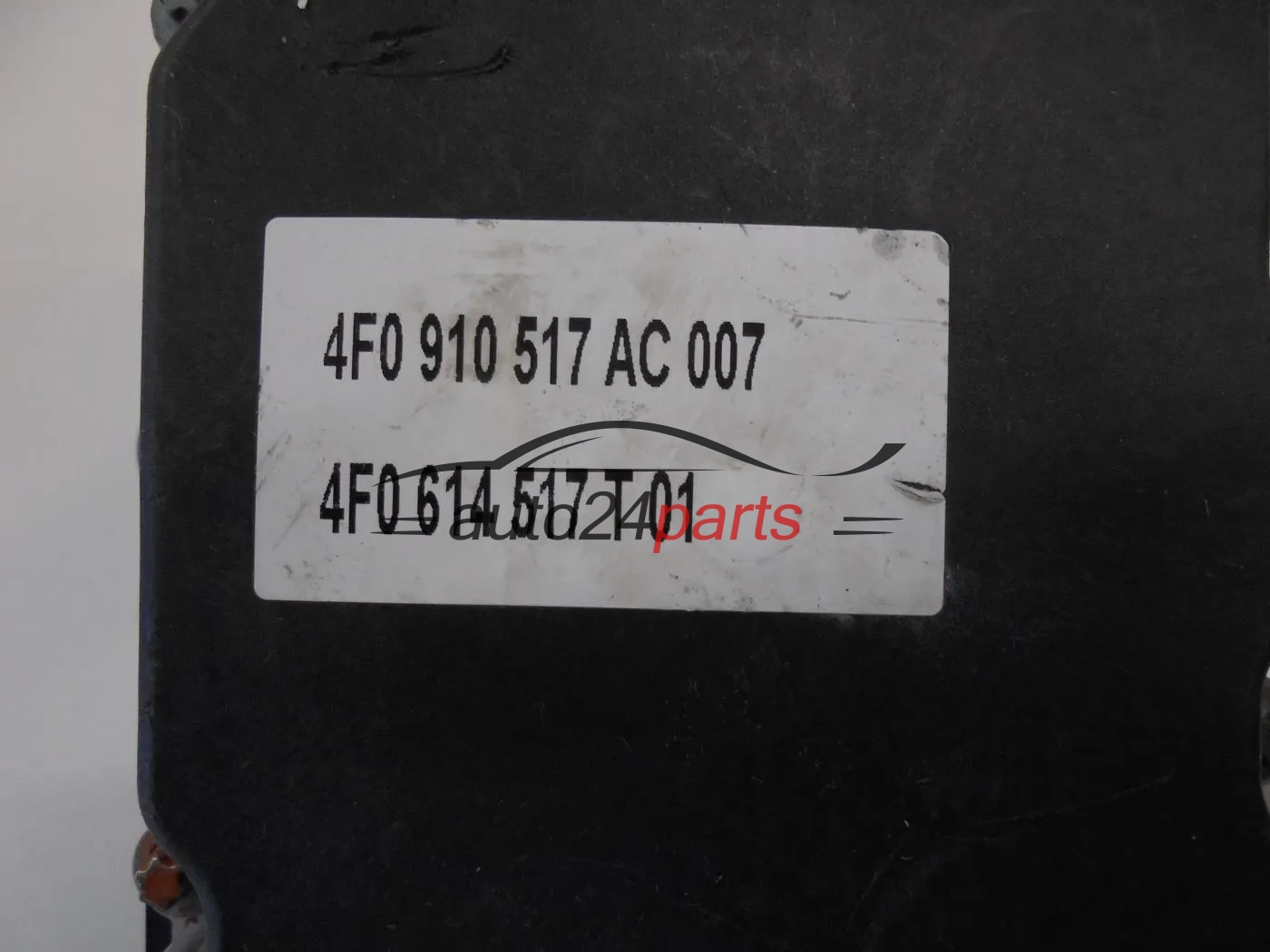

  • 4F0614517T - pump (hydraulic unit) number assigned by VAG; label: 4F0 614 517 T
  • 0265235100 - hydraulic block number assigned by Bosch; label: 0 265 235 100
  • 4F0910517AC - ABS/ESP control module number assigned by VAG; label: 4F0 910 517 AC
  • 0265950556 - control module number assigned by Bosch; label: 0 265 950 556

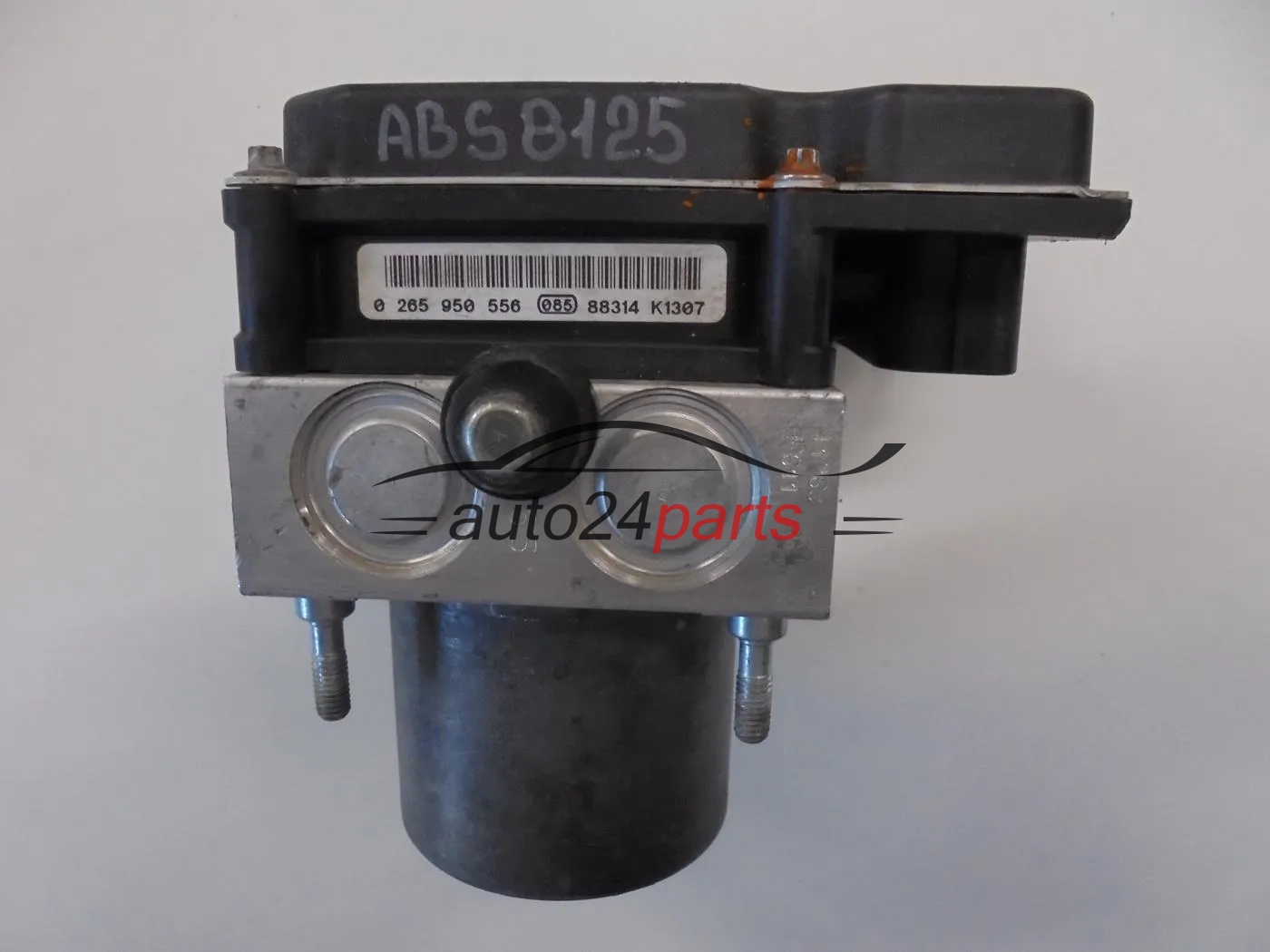

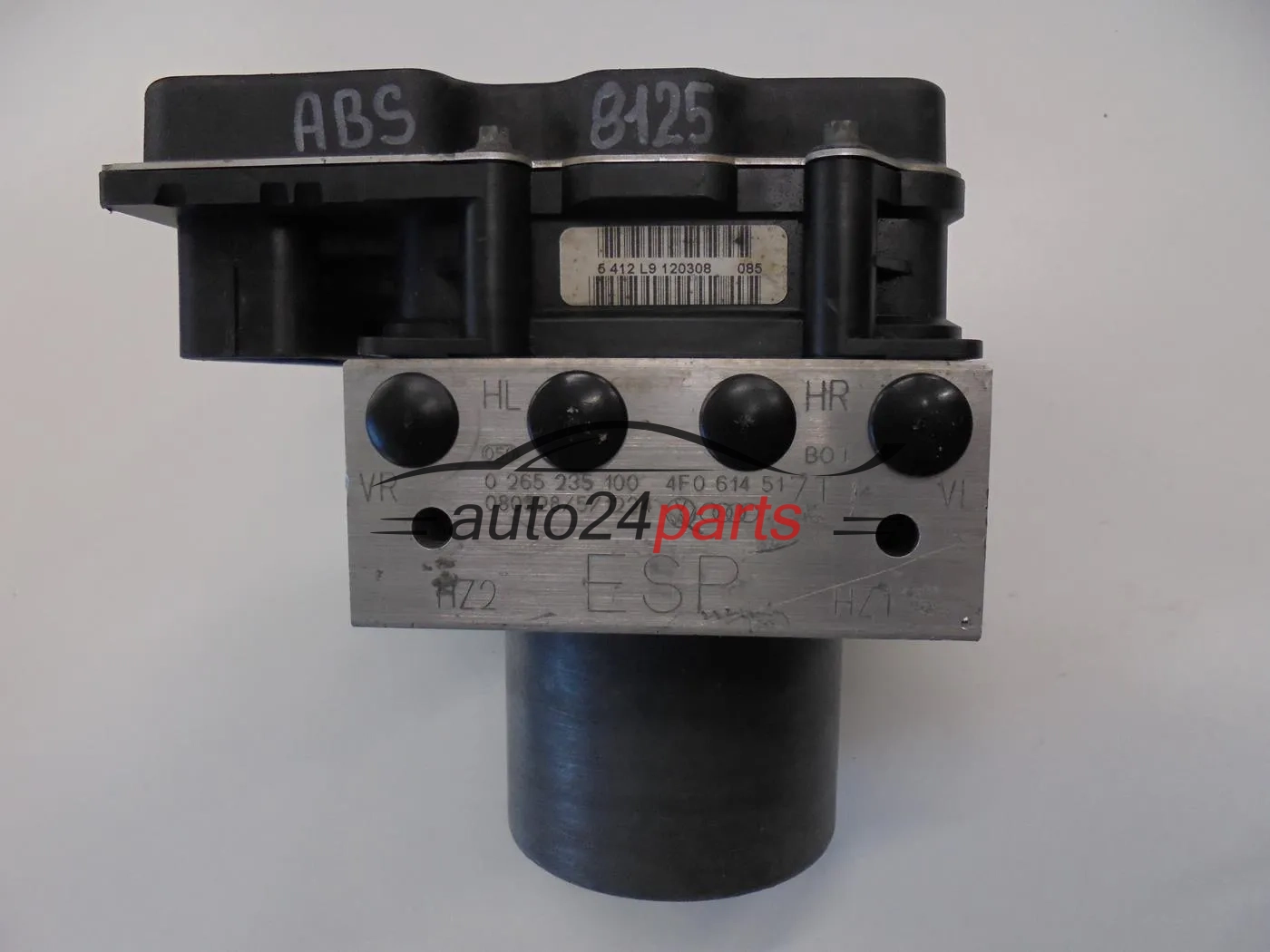

The pump numbers are on the hydraulic block label, and the port symbols (HZ1, HZ2, VL, VR, HL, HR) are stamped into the block, while the control module markings are on the electronics housing. The label bears the word ‘ESP’. When comparing, read the number right up to the last letter - a match on the first nine characters alone is not enough.

When to suspect a hydraulic unit failure

Above all, watch out for:

  • ABS and ESP/ASR functions cutting out,
  • a fault on one of the valves,
  • an ABS warning light that stays on after the ignition is switched on.

Before replacing it, read the fault codes and rule out simpler causes: a wheel speed sensor, a fuse, the wiring and the connector. Fitting is completed by bleeding the brakes and, on many cars, also by coding the control module and performing a basic setting of the ESP sensors.

Common questions about pump 4F0614517T

Does this unit fit every Audi?
No. It fits Audi cars equipped with hydraulic unit 4F0 614 517 T and control module 4F0 910 517 AC - we check this by the numbers.
What about condition and warranty?
The part is genuine, used and in working order; the warranty period is shown in the product features table.
Is the control module included?
Yes, Bosch electronic module 0 265 950 556 is bolted to the block, and we sell it together with the pump.
What does Bosch number 0 265 235 100 mean?
It is the designation the manufacturer uses for the hydraulic block. The control module has a separate Bosch number - 0 265 950 556, given above.

Take a photo of the label on your hydraulic unit and send it to us - we will check whether the suffix matches.
